Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A249 TP321 |
| Minimum Order Quantity: | 300KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case / Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | ACCORDING TO CLIENT'S REQUIREMENT |
| Product Name: | Stainless Steel Welded Tube | Specification: | ASTM A249/ASME SA249 |
|---|---|---|---|
| Material: | TP321 | End: | Plain End, Beveled End |
| NDT: | ET, HT, PT | Tube Shape: | Straight & U Bend & Coil |
| Surface: | Bright Annealed (BA), Pickled And Annlealed , Polished | Application: | Boiler, Superheater, Heat-Exchanger, And Condenser Tubes |
| High Light: | Superheater Stainless Steel Welded Tube,Boiler Stainless Steel Welded Tube,Stainless Welded Pipe TP321 |
||

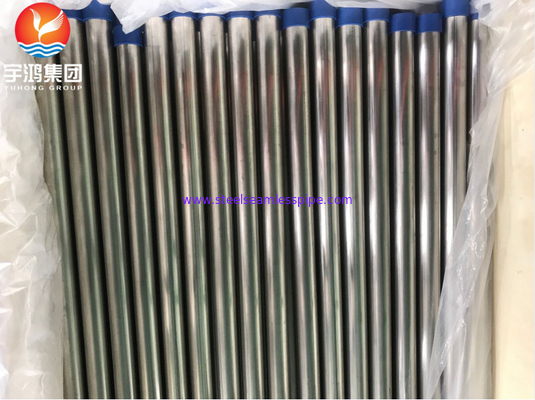

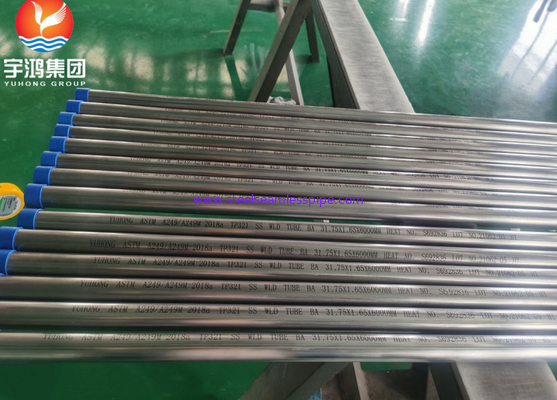

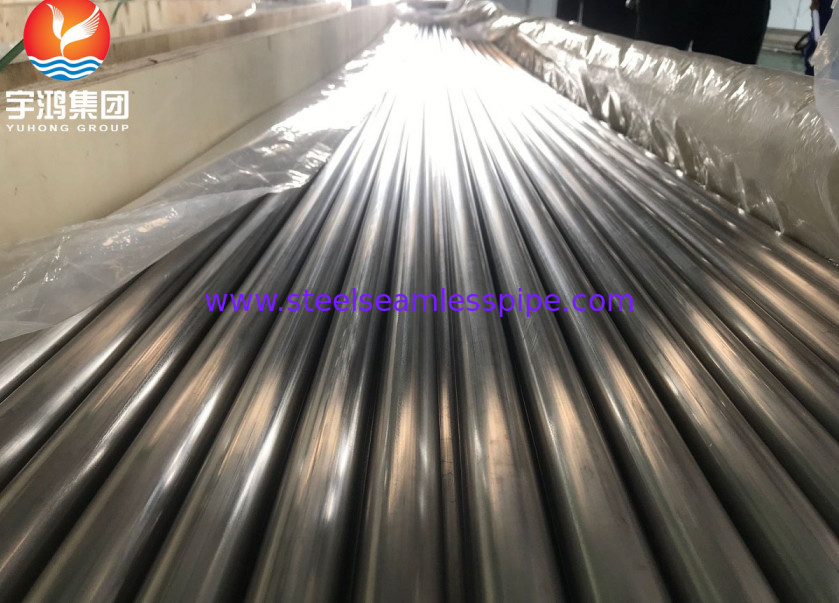

ASTM A249 TP321 Stainless Steel Welded Tube (For Boiler/Superheater/Heat Exchanger)
Grade SA249 TP321 is one of those stainless steel alloys which are designed to be used for elevated temperature applications. Specifically speaking this grade of ASTM specified SA249 TP321 are usually used in piping systems involved in the superheater, boiler, heat exchanger, or condensers. The Stainless Steel 321 Erw is a titanium alloyed grade. Titanium is usually added in carbon steel grades that have a higher content of carbon such as the ASME SA249 Tp321, for carbide stabilization.
TP321 Stainless Steel Welded Tubes Specification
| Specifications | ASTM A249 / SA 249 |
| Dimensions | ASTM, ASME and API |
| Size | 1/8″NB TO 30″NB |
| Welded Size | 1/2" NB - 16" NB |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | ASTM A 249 TP 321 SS Welded Tubes |
| Specialized in | Large Diameter Size |
| Length | Single Random, Double Random & Cut Length. |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| End | Plain End, Beveled End, Treaded |
| STANDARD | UNS | WERKSTOFF NR. | EN |
| SS 321 | S32100 | 1.4541 | X6CrNiTi18-10 |
| Grade | C | N | Ni | Si | P | S | Mn | Cr | TI | |
| SS 321 | Min | - | - | 9.00 | - | - | - | - | 17.0 | 5(C+N) |
| max | 0.08 | 0.10 | 12.00 | 1.00 | 0.045 | 0.030 | 2.00 | 19.0 | 0.70 max |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 321 | 515 | 40 | 205 | 95 | 217 |
Other Material Grades Chemical Compositions
| Grade | UNS | Composition, % | ||||||||||||||
| Design | C | Mn | P | S | Si | Cr | Ni | Mb | Ti | Nb | N | Cu | Ce | B | Al | |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0–20 | 8.0–11 | . . . | . . . | . . . | . . . | . . . | . . . | ||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0–20 | 8.0–13 | . . . | . . . | . . . | . . . | . . . | . . . | ||
| TP304H | S30409 | 0.04 – 0.1 | 2 | 0.045 | 0.03 | 1 | 18.0–20 | 8.0–11 | . . . | . . . | . . . | . . . | . . . | . . . | ||
| TP310S | S31008 | 0.08 | 2 | 0.045 | 0.03 | 1 | 24.0- 26 | 19.0- 22 | 0.8 | . . . | . . . | . . . | . . . | . . . | ||
| TP310H | S31009 | 0.04 – 0.1 | 2 | 0.045 | 0.03 | 1 | 24.0–26 | 19.0–22 | . . . | . . . | . . . | . . . | . . . | |||
| TP310H | S31035 | 0.04 – 0.1 | 0.6 | 0.025 | 0.015 | 0.4 | 21.5–23.5 | 23.5–26.5 | . . . | . . . | 0.40- 0.6 | 0.20- 0.3 | 2.5- 3.5 | . . . | 0.002- 0.008 | |
| TP316 | S31600 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0–18 | 10.0–14 | 2.00–3 | . . . | . . . | . . . | . . . | . . . | ||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0–18 | 10.0–14 | 2.00–3 | . . . | . . . | . . . | . . . | . . . | ||
| TP316H | S31609 | 0.04 – 0.1 | 2 | 0.045 | 0.03 | 1 | 16.0–18 | 10.0–14 | 2.00–3 | . . . | . . . | . . . | . . . | . . . | ||
| TP317 | S31700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0–20 | 11.0–15 | 3.0–4 | . . . | . . . | . . . | . . . | . . . | ||
| TP317L | S31703 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0–20 | 11.0–15 | 3.0–4 | . . . | . . . | . . . | . . . | . . . | ||
| TP321 | S32100 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0–19 | 9.0–12 | . . . | Ti 5 × (C+N) min, 0.70 max | . . . | 0.1 | . . . | . . . | ||
| TP321H | S32109 | 0.04 – 0.1 | 2 | 0.045 | 0.03 | 1 | 17.0–19 | 9.0–12 | . . . | 4(C+N) min; 0.70 max | . . . | 0.1 | . . . | . . . | ||
| TP321H | S32654 | 0.02 | 2.0-4 | 0.03 | 0.005 | 0.5 | 24.0–25 | 21.0–23 | 7.0-8 | . . . | . . . | 0.45- 0.55 | 0.30-0.6 | . . . | ||
| TP321H | S33228 | 0.04 – 0.08 | 1 | 0.02 | 0.015 | 0.3 | 26.0–28 | 31.0–33 | . . . | . . . | 0.60- 1 | . . . | . . . | 0.05 – 0.1 | 0.025 | |
| TP321H | S34565 | 0.03 | 5.0-7 | 0.03 | 0.01 | 1 | 23.0–25 | 16.0–18 | 4.0-5 | . . . | 0.1 | 0.40- 0.6 | . . . | . . . | ||
| TP347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0–19 | 9.0–13 | . . . | . . . | See Spec | . . . | . . . | . . . | ||
| TP347H | S34709 | 0.04 – 0.1 | 2 | 0.045 | 0.03 | 1 | 17.0–19 | 9.0–13 | . . . | . . . | See Spec | . . . | . . . | . . . | ||
| Alloy 20 | N08020 | 0.07 | 2 | 0.045 | 0.035 | 1 | 19.0–21 | 32.0–38 | 2.0–3 | . . . | See Spec | . . . | 3.0– 4 | . . . | . . . | . . . |
| Alloy 20 | N08367 | 0.03 | 2 | 0.04 | 0.03 | 1 | 20.0–22 | 23.5–25.5 | 6.0–7 | . . . | . . . | 0.18–0.25 | 0.75 | . . . | . . . | . . . |
| Alloy 20 | N08028 | 0.03 | 2.5 | 0.03 | 0.03 | 1 | 26.0–28 | 30.0–34 | 3.0–4 | 0.60–1.4 | ||||||
| Alloy 20 | N08029 | 0.02 | 2 | 0.025 | 0.015 | 0.6 | 26.0–28 | 30.0–34 | 4.0–5 | 0.6– 1.4 | ||||||
ASTM A249 TP321 Stainless Steel Welded Tubes Applications
It is widely used in heat exchanger industrial, boiler industrial, condenser industrial
Gas Processing Industries, Petrochemical Industries, Power Generation Industries
Food Processing Industries, Chemical Industries, etc.
