Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Yuhong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A234 WP9 |
| Minimum Order Quantity: | 100 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |

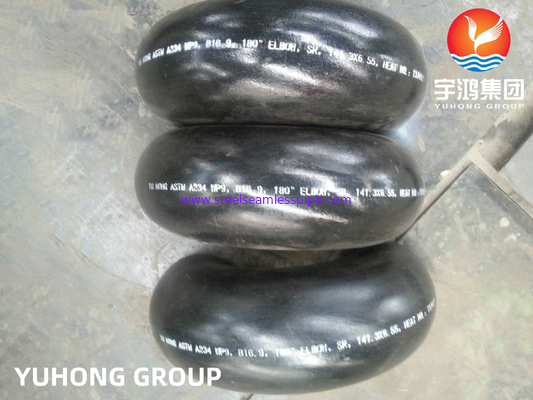

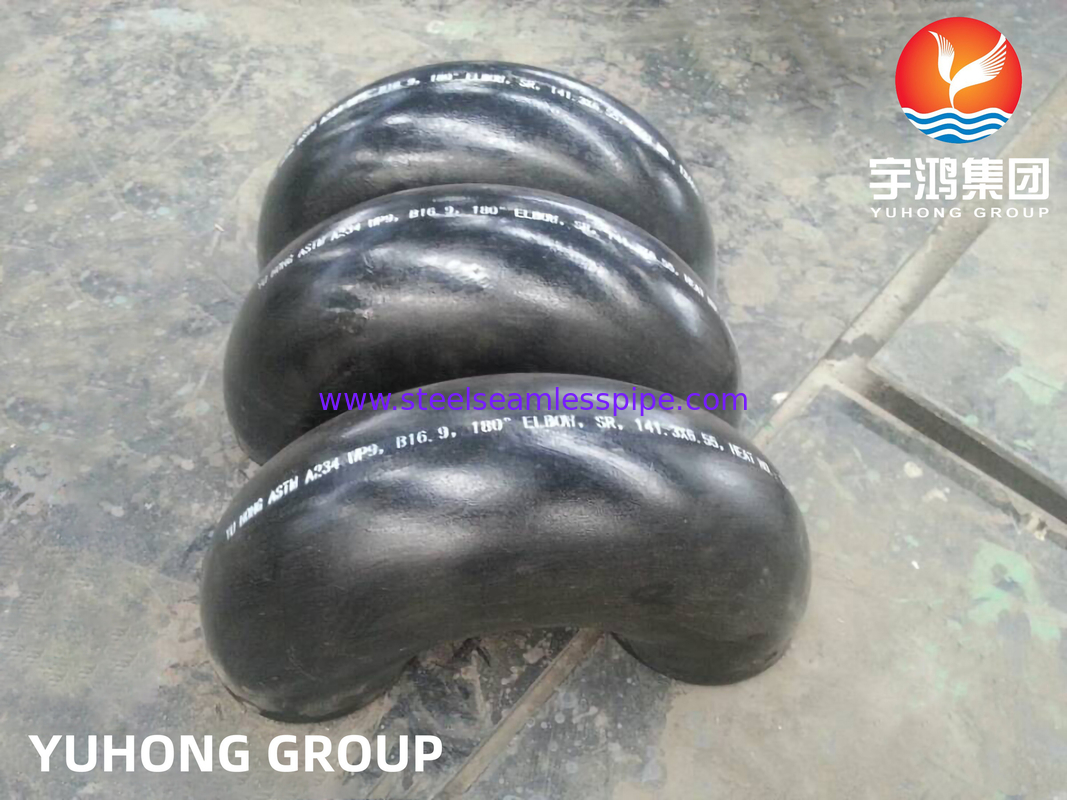

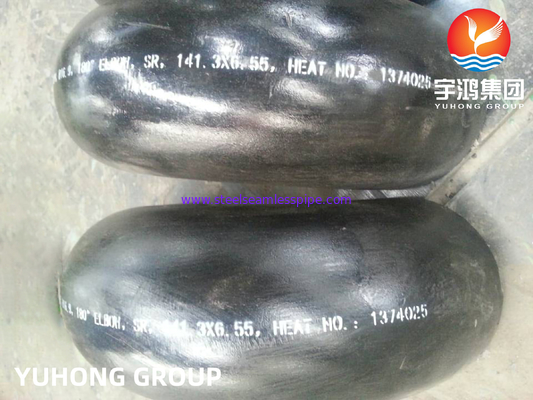

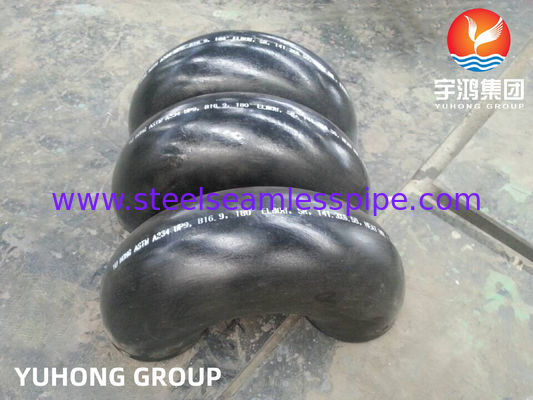

| Material: | WP9 | Type: | 90°/180° LR Elbow |
|---|---|---|---|
| NDT: | PT/HT/UT | Application: | Pipeline |
| High Light: | Alloy Steel Butt Welded Fitting Elbow,ASTM A234 Butt Welded Elbow,Pipeline Alloy Steel Elbow WP9 |
||
Alloy Steel Butt Weld Fitting , ASTM A234 WP11, WP22, WP5, P9,P91, P92 , ELBOW ,TEE, REDUCER, CAP
Alloy steel pipe fttings
The alloy steel pipe ftting is fabricated with alloy elements in such as Chrome, Molybdenum, Nickel alloy, Hastelloy alloy,
Monel, Inconel, and etc. To get a higher pressure ratings, better strength, good corrosive resistance, and longer durability.
It is widely used in oil and gas pipelines, chemical industries, power plants, nuclear power sites, and in server conditions.
Alloy steel pipe fttings includes buttweld fttings, alloy steel long radius bend, alloy steel forged fttings and so on.
The alloy steel buttweld fttings adopts ASTM A234 standard, has WP1, WP5, WPI1, WP12, WP22,WP23 and WP91 grades.
Class level in CL1, CL2, CL3.
ASTM A234 alloy steel pipe fttings inlcludes alloy steel elbows in long and short radius, alloy steel eccentric & concentric
reducer, alloy steel caps & crosses, alloy steel couplings, alloy steel tees, alloy steel nipples, alloy steel caps and etc more
forms. It has seamless, welded and fabricated types.
For alloy steel forged fttings, it adopts ASTM A182 standard refers to steel pipe flanges. Material standard in ASTM A182 FI,
F5, F9, F11 Class 1, F12 Class 1, F22 Class 1ETC.
Chemical Composition
| Chemical Composition | Composition, % | Cr | Mo | ||||
| Grade and Marking Symbol | C | Mn | |||||
| P | S | Si | |||||
| WPB | 0.30 max | 0.29-1.06 | 0.050 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| WPC | 0.35 max | 0.29-1.06 | 0.050 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| WP1 | 0.28 max | 0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | - | 0.44-0.65 |
| WP12 CL1, WP12 CL2 | 0.05-0.20 | 0.30-0.80 | 0.045 | 0.045 | 0.60 max | 0.80-1.25 | 0.44-0.65 |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| WP11 CL2, WP11 CL3 | 0.05-0.20 | 0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| WP22 CL1, WP22 CL3 | 0.05-0.15 | 0.30-0.60 | 0.040 | 0.040 | 0.50 max | 1.90-2.60 | 0.87-1.13 |
| WP5 CL1, WP5 CL3 | 0.15 max | 0.30-0.60 | 0.040 | 0.030 | 0.50 max | 4.0-6.0 | 0.44-0.65 |
| WP9 CL1, WP9 CL3 | 0.15 max | 0.30-0.60 | 0.030 | 0.030 | 1.00 max | 8.0-10.0 | 0.90-1.10 |
| WPR | 0.20 max | 0.40-1.06 | 0.045 | 0.050 | •- | - | |
| WP91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.0-9.5 | 0.85-1.05 |
| WP911 | 0.09-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 8.5-9.5 |
0.90-1.10
|
Product range :
Size : 1/8"NB TO 48"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Eccentric Reducer, Concentric Reducer
Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6
Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.
Nickel Alloy Reducer
Standard
