Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | C276 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 1000 tons per month |

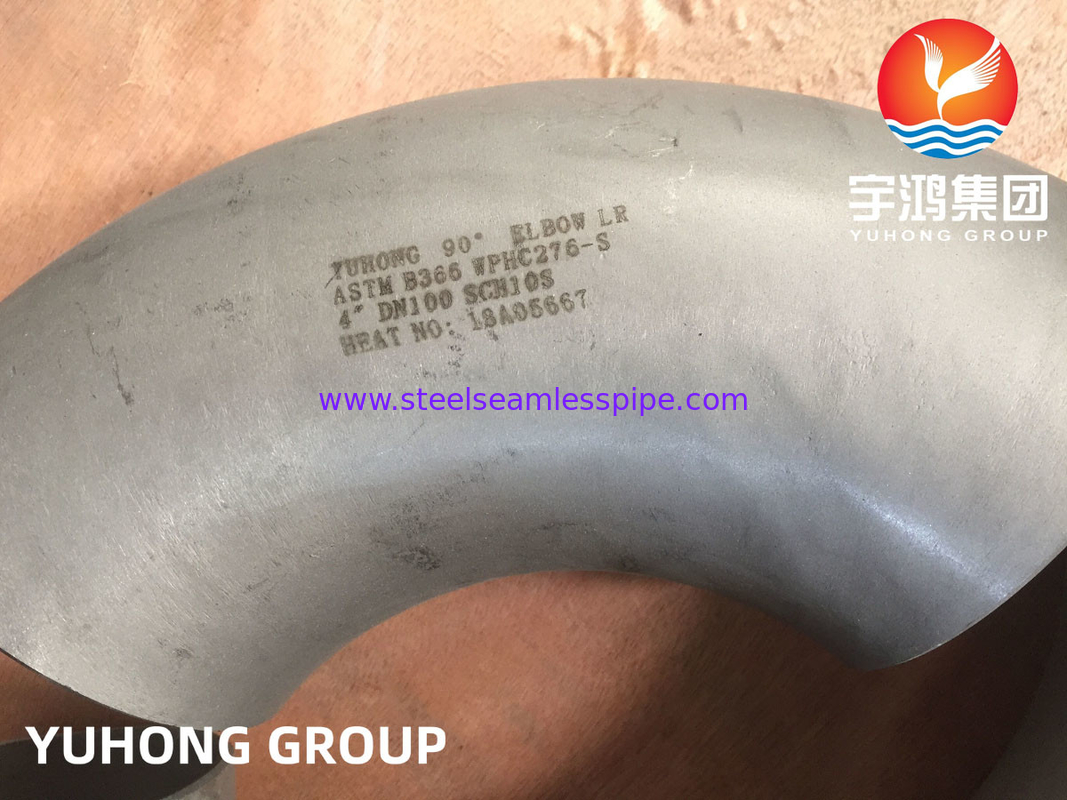

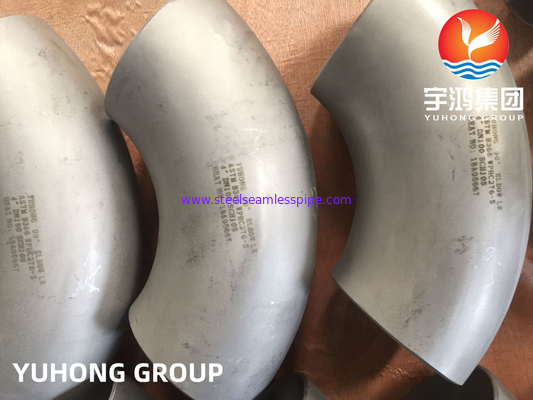

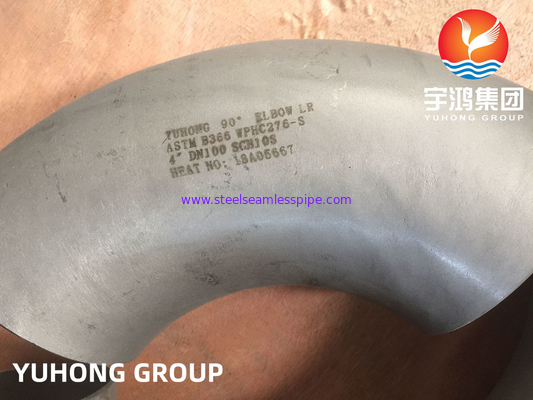

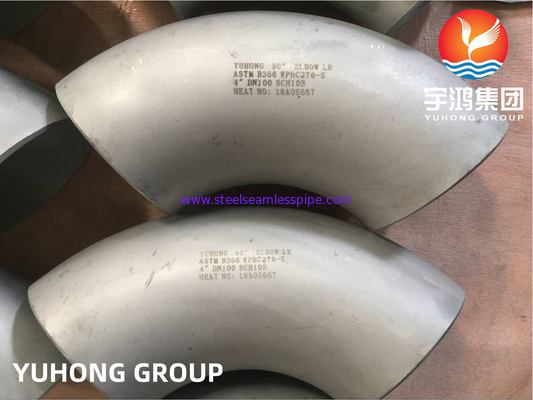

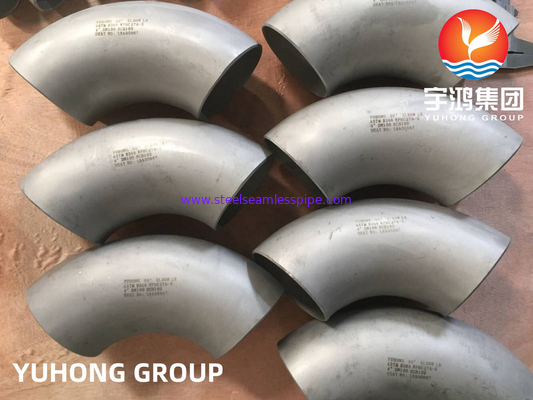

| Product Name: | Stainless Steel BW Elbow | Specification: | ASTM B366 |
|---|---|---|---|
| Dimension Standard: | ASME/ANSI B16.9 | Material: | C276 |
| O.D.: | 1/2″ To 120″ | W.T.: | Sch5-Sch160,XS,XXS,STD |
| High Light: | C276 Stainless Steel Elbow,B16.9 Oil Gas Stainless Steel Elbow,Corrosion Resistance Stainless Steel Pipe Elbow |
||
What is grade C276
Available in different sizes, Hastelloy C276 seamless butt weld fittings provide corrosion resistance in the oil and gas, petrochemical, chemical and power industries. We offer a large range of Hastelloy C22 welded butt weld pipe fittings that are being developed daily to meet the needs of the industry.
Hastelloy C276 pipe elbows are used to change the direction of material flow, thereby increasing the pressure loss in the system due to impact, friction and re-acceleration. 90 degree elbows are very useful where there are clearance problems. Hastelloy C276 reducers help to reduce large diameter nozzles in pipelines to small diameters depending on flow requirements.
Aspirinox Alloys Inc's Hastelloy C276 end caps help secure the end of the pipe for liquid and gas sealing. In addition, Hastelloy C276 crosses are durable, precisely designed, readable and leak-proof for liquids, so these are deployed in areas where there are four pipes connected together. Our Hastelloy C276 tees are used for the purpose of dispensing or collecting liquids in running piping. These short pipes have a 90° branch in the center and are highly resistant to high pressure conditions and are therefore exported all over the world.
C276 Mechanical Properties
| Grade | Hastelloy C276 |
|---|---|
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Yield Strength (0.2%Offset) | Psi – 52000 , MPa – 355 |
| Tensile Strength | Psi – 115000 , MPa – 790 |
| Elongation | 40 % |
C276 Chemical Composition
| Grade | Hastelloy C276 |
|---|---|
| Ni | Balance |
| C | 0.01 max |
| Mo | 15 – 17 |
| Mn | 1.0 max |
| Si | 0.08 max |
| Fe | 4 – 7 |
| P | 0.04 max |
| S | 0.03 max |
| Co | 2.5 max |
| Cr | 14.5 – 16.5 |
C276 Equivalent Grades
| STANDARD | Hastelloy C276 |
| WERKSTOFF NR. | 2.4819 |
| UNS | N10276 |
| AFNOR | – |
| EN | NiMo16Cr15W |
| JIS | NW 0276 |
| OR | ЭП760 |
| GOST | ХН65МВУ |
C276 Application:
