Nickel Alloy butt-welded fitting, Incoloy 800H LR elbow 90/180 Degree, for Nuclear Power Plant

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK.
Model Number:	B366 Inconel 800H (UNS N08810)

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	2000 pcs per month

Contact Now

All Products

Stainless Steel Seamless Pipe (327)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (152)

Fin Tube (698)

Heat Exchanger (24)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (124)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (130)

Nickel Alloy Pipe (271)

Nickel Alloy Tube (96)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (20)

Bright Annealed Tube (173)

Boiler Tube (151)

Steel Fitting (855)

Steel Flange (655)

Others (404)

Cladding Parts (8)

Detailed Product Description

Product:	Nickel Alloy Butt-Welded Fitting	Specification:	ASTM B366
Material:	Inconel 800H / UNS N08810	Product Performance:	Resistant To High Temperature, High Pressure, And Acid Alkali Salt Corrosion
Key Words:	BW 45° Elbow, BW 90° LR EIbow, BW 180° LR Return,BW 90° SR EIbow, BW 180° SR Return	Dimension Standard:	ASME/ANSI B16.9
Size:	1/2″ To 48″	Schedule:	Sch 5-XXS
Highlight:	Inconel 800H Pipe Elbow , ASTM B366 Stainless Steel BW Elbow , Heat Exchanger Stainless Steel BW Elbow

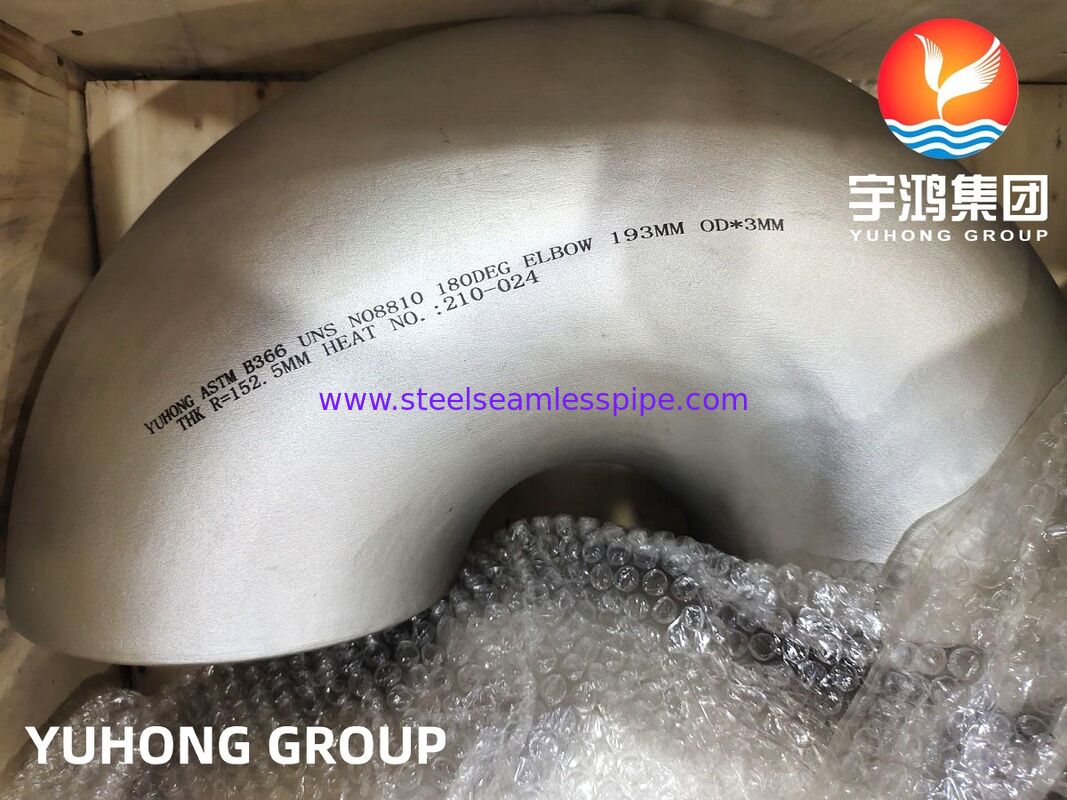

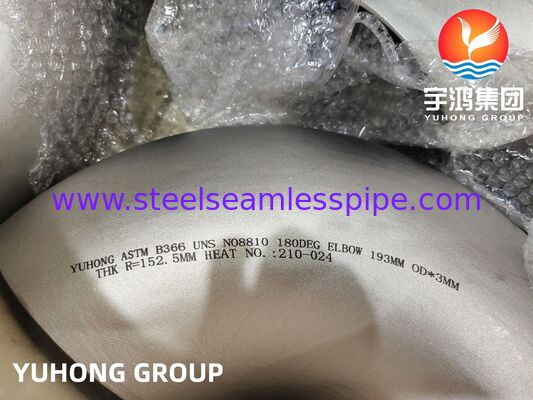

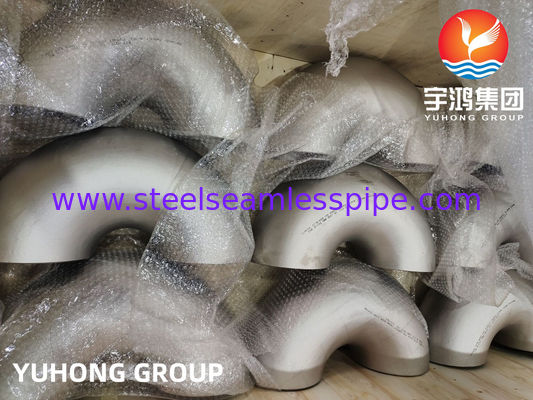

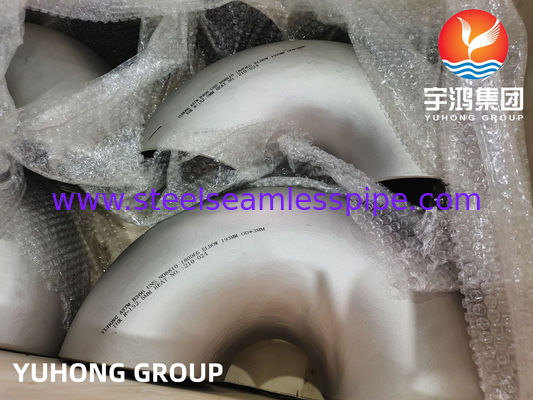

Nickel Alloy butt-welded fitting, Incoloy 800H LR elbow 90/180 Degree, for Nuclear Power Plant

Name: Nickel Alloy butt-welded fitting, Incoloy 800H LR elbow 90/180 Degree, for Nuclear Power Plant
Brand: Yuhong Group Co.,Ltd
SKU: B366 Inconel 800H (UNS N08810)
Price: 100000 USD
Availability: InStock

What is Incoloy 800H BW Elbow?

The Inconel 800H elbow is a high-performance pipe fitting made from a nickel-iron-chromium alloy (corresponding to the standard grade UNS N08810), formed through processes such as hot pushing or forging. Its core value lies in the precisely controlled carbon content, which provides outstanding creep strength** and **excellent resistance to oxidation and carburization in high-temperature environments above approximately 593°C. Consequently, this elbow is a reliable choice for key components in petrochemical (e.g., ethylene cracking furnace tubing systems), energy and power (e.g., boiler superheaters), and nuclear industries, where it withstands high temperatures, high pressures, and corrosive media, ensuring the long-term safety and stable operation of piping systems under extreme conditions.

Incoloy 800H / UNS N08810 Elbow Mechanical Properties

Tensile Strength, minimum		Yield Strength, minimum		Elongation, minimum	Hardness, minimum
Mpa	ksi	Mpa	ksi	%	HB
600	87	295	43	44	138

Incoloy 800H / UNS N08810 Elbow Chemical Composition

The Chemical Composition of Incoloy 800 Pipe Fittings, %
C	≤0.10
Mn	≤1.50
Si	≤1.00
Ni	30.0-35.0
Cr	19.0-23.0
Fe	≥39.5
Ti	0.15-0.60
Al	0.15-0.60
S	≤0.015
Cu	≤0.75

Inconel 800H Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T
