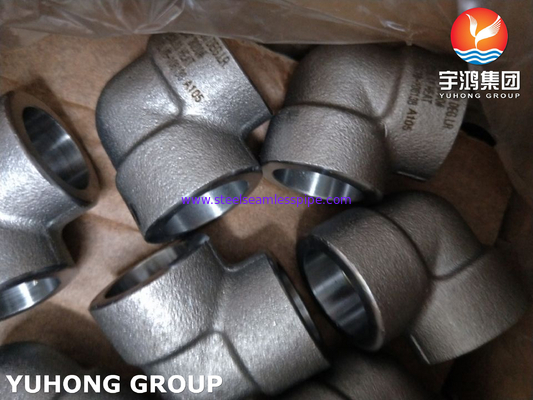

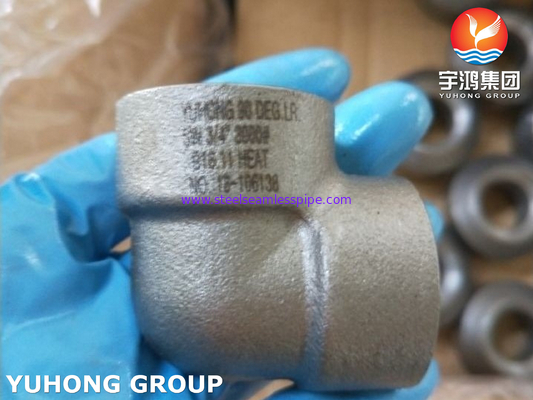

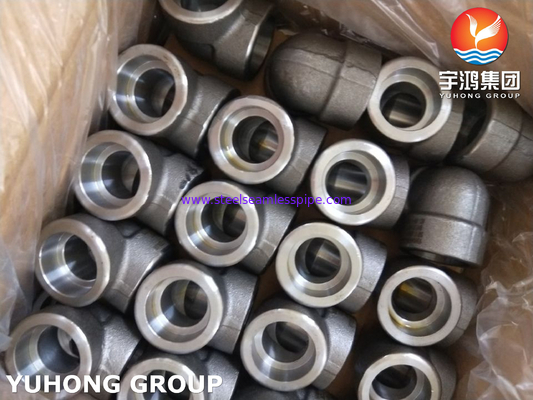

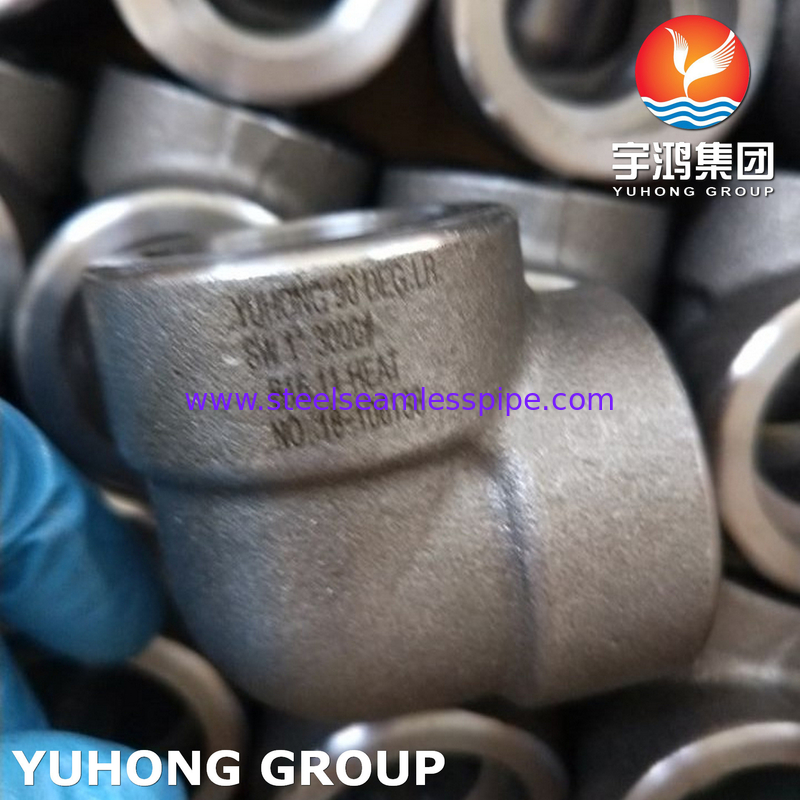

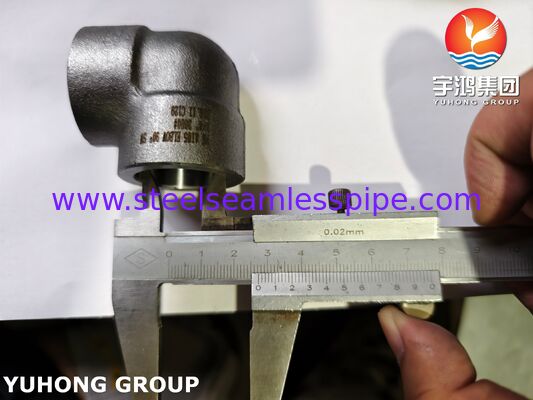

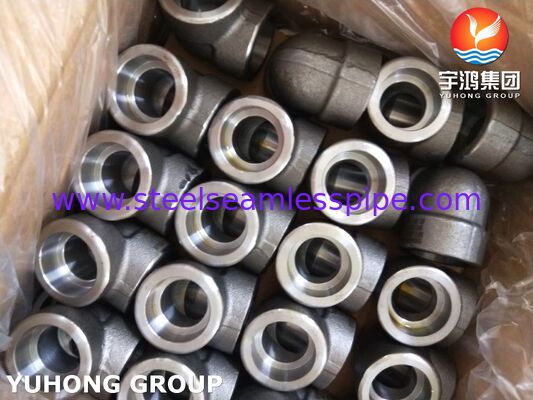

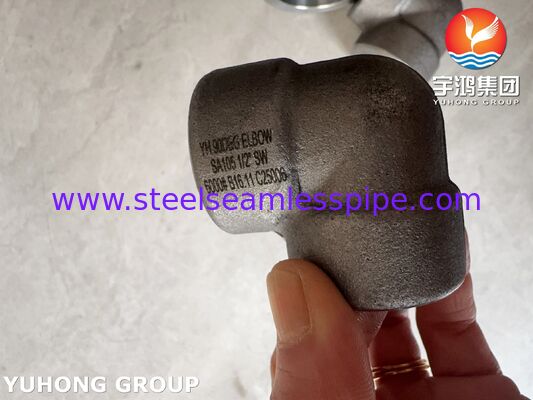

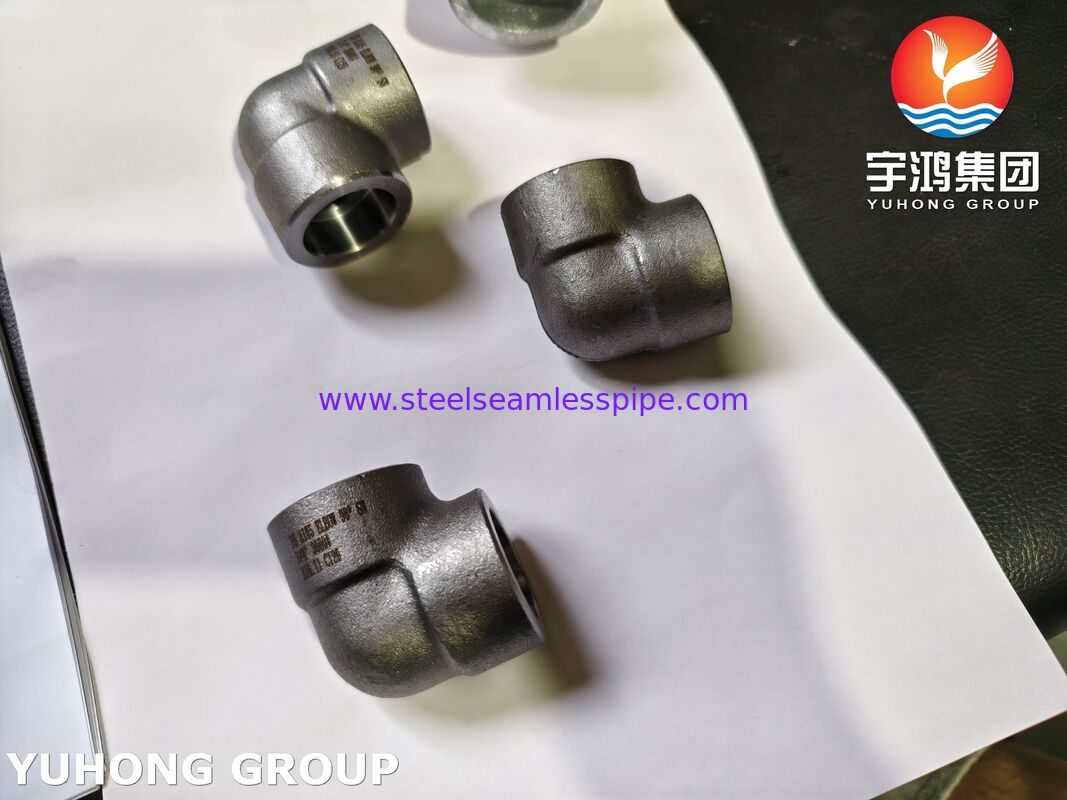

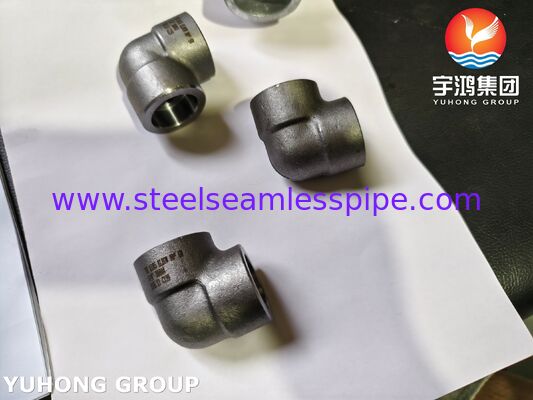

A105 Socket-Weld (SW) Elbow Carbon steel forged fitting, threaded / NPT connections ASME B16.11​

An A105 socket welding elbow is a connecting pipe fitting used in high-pressure piping systems, primarily to change the direction of a pipeline (e.g., 90° or 45°). It is not a single concept but a professional term that combines specific material (A105) and a specific connection form (socket weld).

To facilitate a quick understanding, we can break it down into two parts: "A105" and "Socket Welding Elbow":

• A105 - Material Standard
  This refers to carbon steel forgings that comply with the American ASTM A105 standard. This material offers good strength, plasticity, and toughness, making it suitable for pressure piping systems at ambient and elevated temperatures.

• Socket Welding Elbow - Connection Method & Function
  This refers to an elbow that uses a socket weld for connection. The fitting has a "socket" at its end. During installation, the pipe is inserted into this socket, and a fillet weld is then applied at the port. This connection method is known for ease of alignment and robust welds, making it particularly suitable for small-diameter, high-pressure piping.

Key Features and Specifications

This type of elbow typically has the following characteristics:

• Manufacturing Process: Primarily forged. The forging process results in a denser metal structure with higher strength than cast fittings, making it suitable for withstanding high pressure.

• Size and Pressure:

  • Size Range: Typically used for small-diameter pipelines of DN50 (approximately 2 inches) and below.

  • Pressure Ratings: Common classes include 3000LB, 6000LB, and 9000LB. Higher ratings indicate a greater pressure-bearing capacity. A typical example is a DN50 socket welding elbow that can achieve a 3000-pound class rating.

Why Socket Weld Elbows?

• Leak-resistant: The welding process for socket weld fittings creates a strong, tight bond.

• Durability: A105 carbon steel has good strength, toughness, and resistance to pressure, making it suitable for most industrial applications.

• Compactness: Socket welds offer a compact, neat solution compared to other types of connections like threaded joints, which may be prone to leakage under high pressure.
