Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A192 |
| Minimum Order Quantity: | 5 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 1-60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Seamless Tube | Standard: | ASTM A192 |
|---|---|---|---|
| Materialrd: | Carbon Steel | Surface: | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Length: | 1-12m Customer Size Is Ok,or As Required | Third Party Inspection: | BV,SGS,ASP |
| Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Seamless Carbon Steel Boiler Tube,ASTM A192 Carbon Steel Tube,Boiler Varnish Carbon Steel Tube |
||

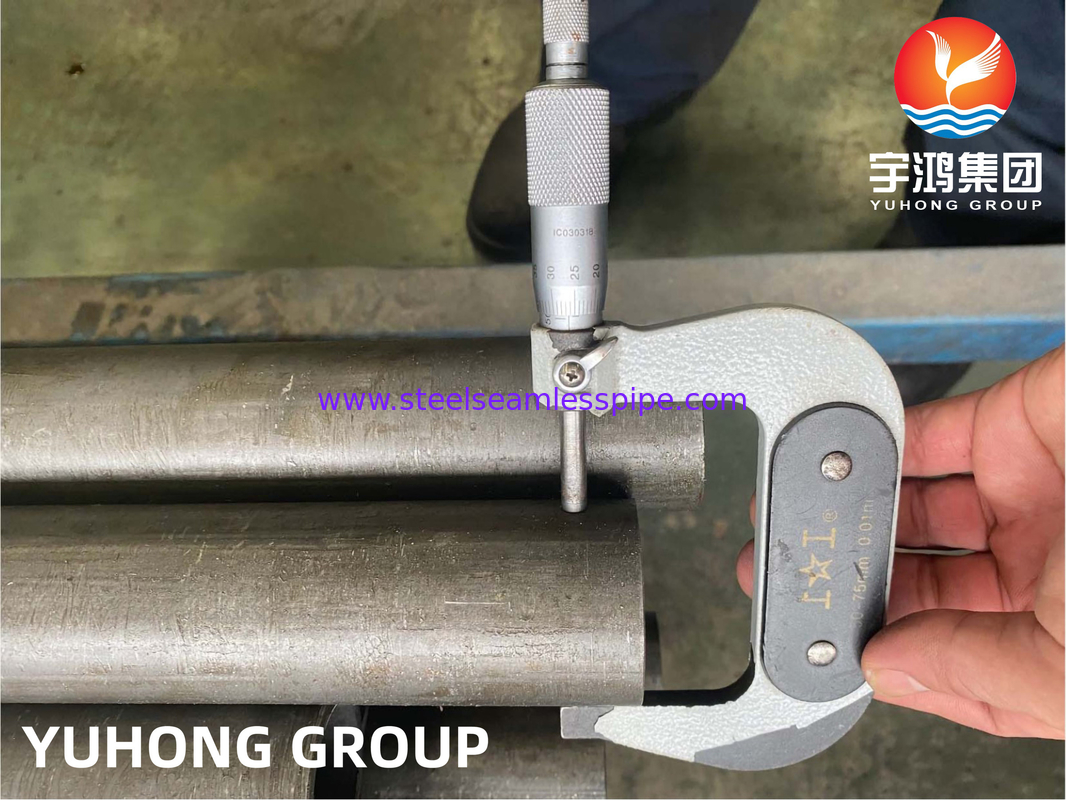

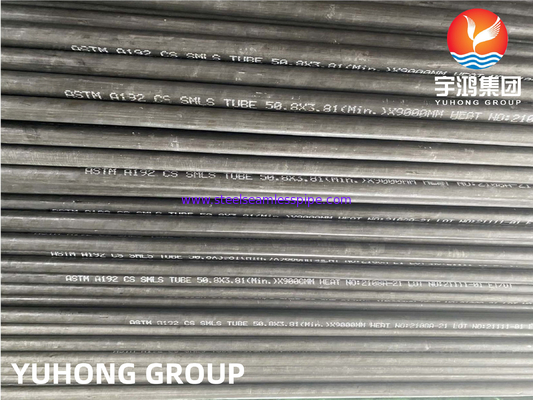

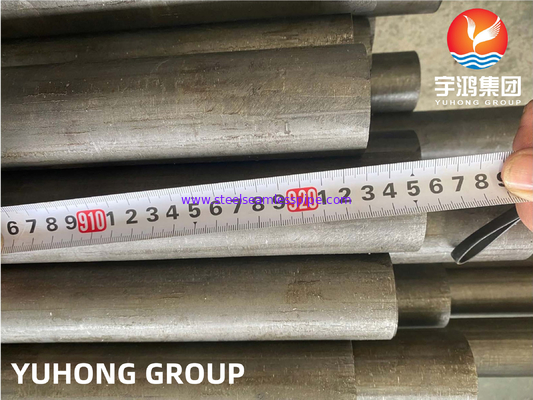

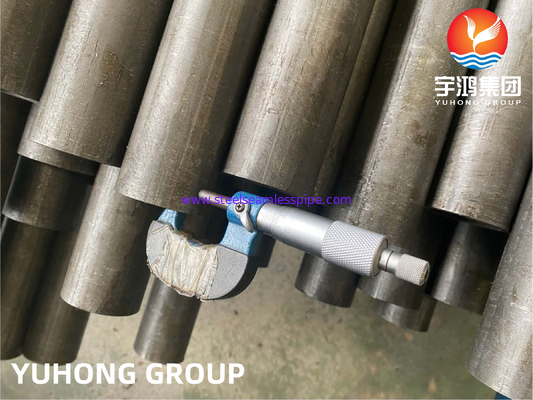

ASTM A192 Seamless Carbon Steel Boiler Tube ( Tubo de Acero de Carbon )
YUHONG supplies ASTM A192 seamless carbon steel boiler tube, and the tube of this standard is applied as minimum-wall-thickness.
ASTM A192 seamless carbon steel boiler tube has the ability to withstand high pressure along with having some resistance to corrosion as well as some level of hardness and toughness properties. In addition to this the A192 Boiler Tube has good tensile strength properties as well, thereby making them more popular in several industries. So, our carbon steel ASTM A192 Tubes can be used in demanding applications.
Tube Size
| Tube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||||
| Outside Diameter | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Wall Thickness mm | |||||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inch | Weight kg/m | |||||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||||
Chemical Composition Of ASTM A192 Tube
| Chemical Composition | C | Mn | P | S | Si |
| 0.06-0.18 | 0.27-0.63 | 0.035 max | 0.035 max | 0.25 max |
Mechanical Property Of ASTM A192 Tube
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Brinell Hardness Number(WT≥)0.200In(5.1mm) | Rockwell Hardness Number (WT)0.200In(5.1mm) |
| ≥180 | ≥325 | ≥35 | 137HRB | 77HRB |
Flattening Test / Flaring Test / Hardness Test / Hydrostatic Test / Tension Test
Applications Industry
Off-Shore Oil Drilling Companies / Chemical Equipment / Power Generation / Pharmaceuticals
Petrochemicals / Heat Exchangers / Gas Processing / Condensers / Sea Water Equipment
Specialty Chemicals / Pulp and Paper Industry / Pharmaceutical Equipment
