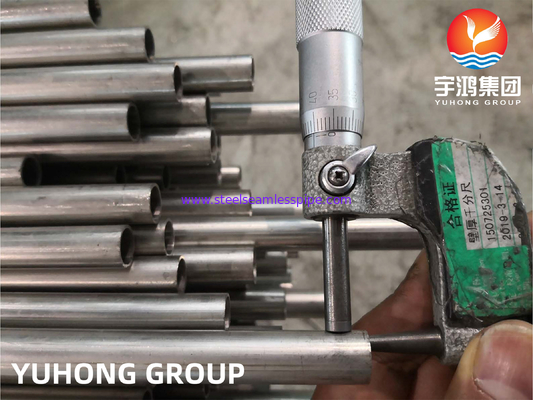

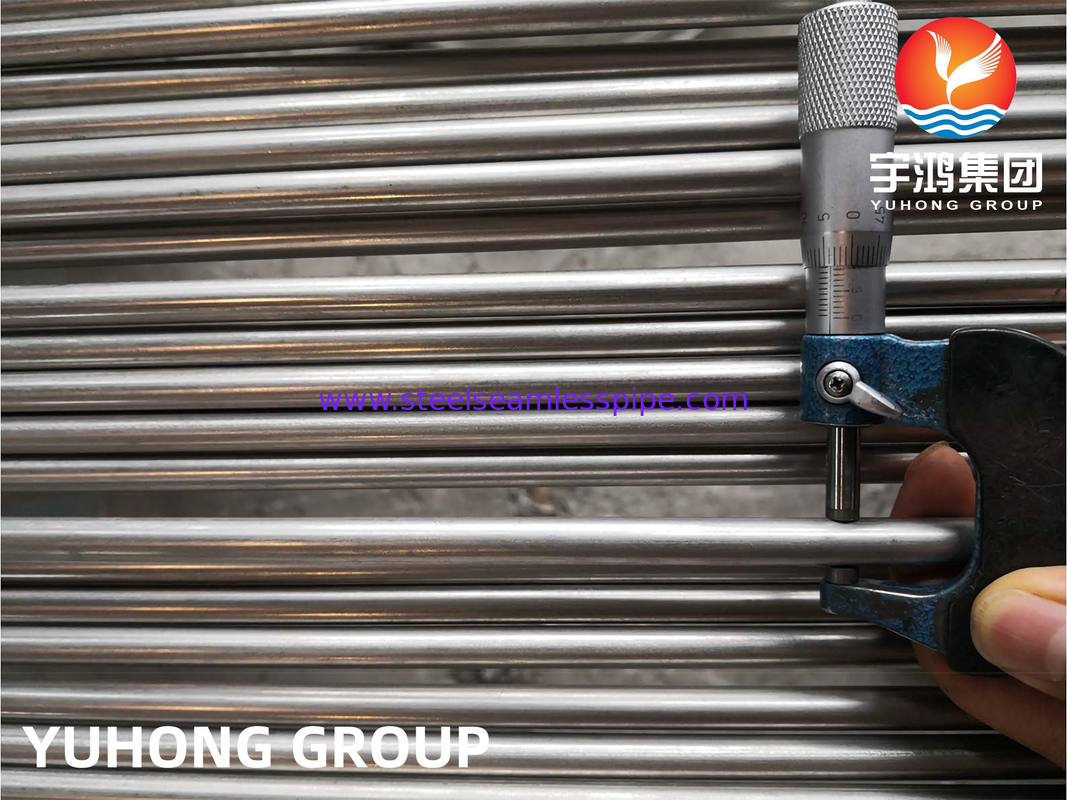

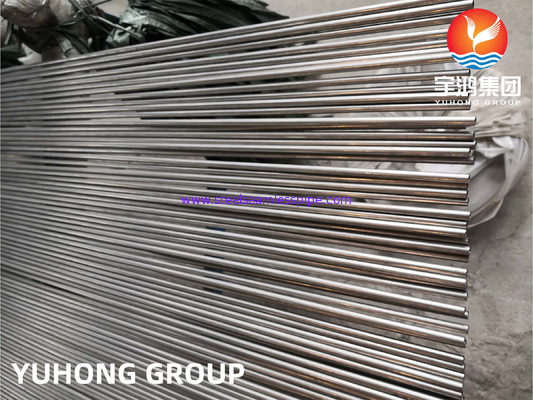

Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser

Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser

  • Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser
  • Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser
  • Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser
  • Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser
Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG GROUP
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Bundle /Ply-wooden Case
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C at sight
Supply Ability: 10000 Ton/month
Contact Now
Detailed Product Description
Material Grade: TP316L Standard: ASTM A249
Size: 6 To 304.8 Mm W.T.: 0.5 To 6 Mm
Length: Single Random, Double Random & Required Length NDT: ET HT UT PT
Packing: Ply-wooden Case /Iron Case/ Bundle Appllication: Petroleum Refineries/natural-gas Processing/space Heating
High Light:

TP316L Stainless Steel Welded Tubes

,

Condenser Stainless Steel Welded Tubing

,

Boiler Welded Stainless Steel Pipes

Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser





Stainless steel 316L pipe is composed of a chromium-nickel-molybdenum austenitic stainless steel alloy containing 2-3% molybdenum, with less than 0.03% carbon in its composition. This combination gives the tube a high strength, with a minimum tensile strength of 560 MPa and a minimum yield strength of 205 MPa. Stainless steel 316L tube can withstand temperatures up to 870 degrees Celsius in intermittent service and 925 degrees Celsius in continuous service. 316L stainless steel seamless tube is constructed by a cold drawing process, which draws the tube from a single raw material billet , therefore, the steel pipe is seamless and has a high dimensional accuracy.





Chemical Composition of ASTM A249 TP316L Stainless Steel Welded Tubes





SA 249 C Mn P S Si Ni Cr Mo N
316L 0.035 2.00 0.045 0.030 1.0 10-14 16-18 2-3
1.4404 0.03 2.00 0.040 0.015 1.0 10-13 16.5-18.5 2-2.5 0.1







Mechanical Property of ASTM A249 TP316L Stainless Steel Welded Tubes





Grade Tensile Str
(MPa) min
Yield Str
0.2% Proof
(MPa) min
Elong
(% in 50mm) min
Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40 95 217





Equivalent Grades of ASTM A249 TP316L Stainless Steel Welded Tubes



STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3







ASTM A249 TP316L Stainless Steel Welded Tubes  APPLICATION



Gas Processing

Petrochemical

Food Processing

Chemical

Fertilizers

Boiler

Oil & Gas





Stainless Steel Welded Tubes ASTM A249 TP316L Boiler Heat Exchanger Condenser 0
