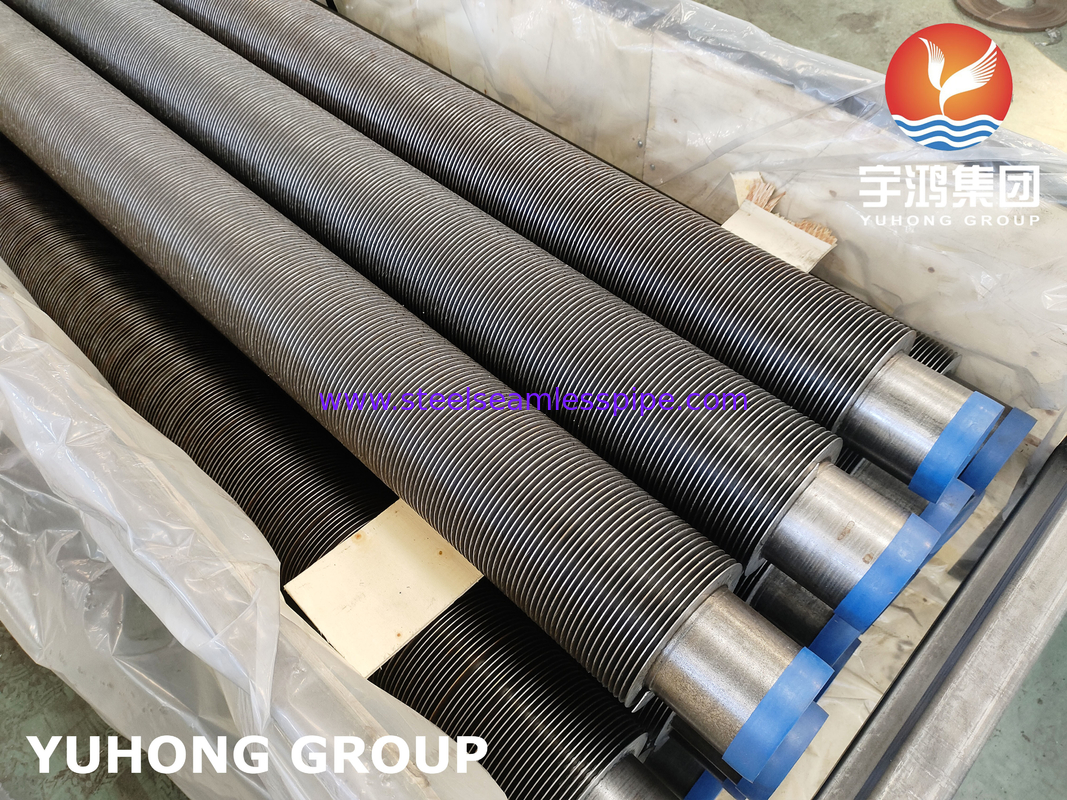

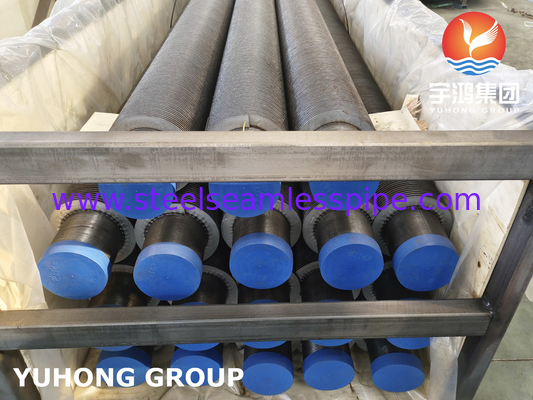

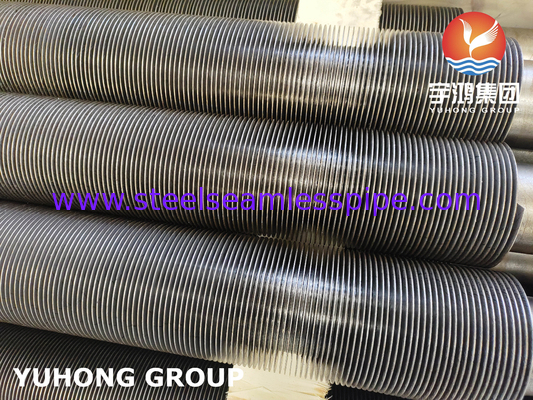

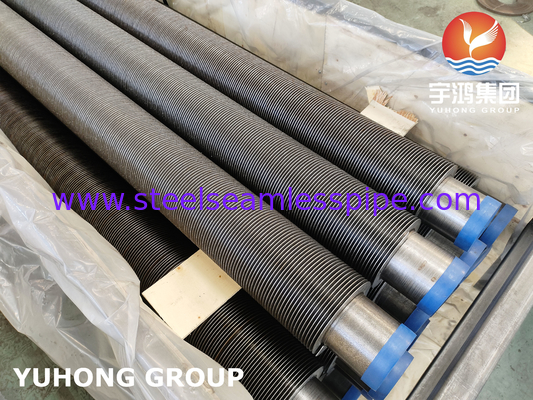

FAST HEAT DISSIPATION HIGH FREQUENCY WELDED FIN TUBE CS PIPE AND FIN

Overview

High frequency welded finned tube heat sink is a type of energy-saving and environmentally friendly heat exchange component recognized domestically. It is a high-frequency welding method that wraps the outer wall of the pipe together while welding it in a spiral shape, greatly increasing the total surface area of the pipe and improving the heat transfer efficiency by 4-7 times compared to ordinary pipes. This machine equipment has advantages such as high welding seam bonding strength, low thermal resistance, large total transverse heat exchange area, compact structure, small size, and saving raw materials. It is precisely because of its above advantages that the "GRD steel finned radiator" developed and designed with high-frequency welded finned tubes has characteristics such as high metal thermal strength, pressure resistance, and large heat dissipation. High frequency welding of finned tubes uses a high-frequency power source as the heat source to simultaneously heat up the steel strip and pipe material, melting them into a whole. It has the characteristics of high heat exchange and dissipation efficiency, large total heat dissipation area, long service life, wide applicability to environmental temperatures, and high compressive strength.

HFW Fin Tube's Function

• High frequency welded finned tube is a type of finned tube, which is mainly welded by high frequency welding and is a new type of excellent heat dissipation element. The high frequency welding finned tube is welded with high frequency current, the welding method is reliable and excellent, the welding seam is small, and the surface of the radiator is more solid as well as beautiful.
• High frequency welded finned tube is a heat sink element often used in finned tube radiators. Welding high-frequency welded finned tube on the base tube of the radiator improves the heat transfer coefficient of the heat exchanger side of the radiator and enhances the heat dissipation effect of the radiator, and the excellent heat dissipation effect makes the finned tube more and more popular.
• The high frequency welding finned tube is welded with high frequency current, which can increase the compactness of the radiator and improve the safety of the high frequency welding finned tube radiator in the operation process. The high-frequency welding process is an improved and upgraded process on the basic welding process, which is also a more excellent welding process.
• The more excellent welding process adopted for high-frequency welded finned tubes, the faster the welding speed and the narrower the weld seam, the more beautiful the appearance of the radiator. High-frequency welded finned tube has a simple and generous appearance, mainly in silver and gray, and can be suitable for a variety of styles of decoration, which is widely used in the field.

Base Tube Details

Application:

• Air Cooler
• Charge Air Chiller
• Condenser
• Evaporator
• Fluid Cooler
• Gas Cooler
• Oil Cooler
• Radiator
• Refrigeration
• Steam to Air Heat Exchanger
• superheate
• etc.
