Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASME SA179 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Seamless Tube | Materialrd: | Carbon Steel |
|---|---|---|---|
| Standard: | ASME SA179 | Grade: | A179 |
| Length: | Or As Required | Application: | Heat Exchanger / Boiler Tube |
| Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Seamless Carbon Steel Boiler Tubes,ASME SA179 Heat Exchanger Tubes,3.2mm Carbon Steel Pipe |
||

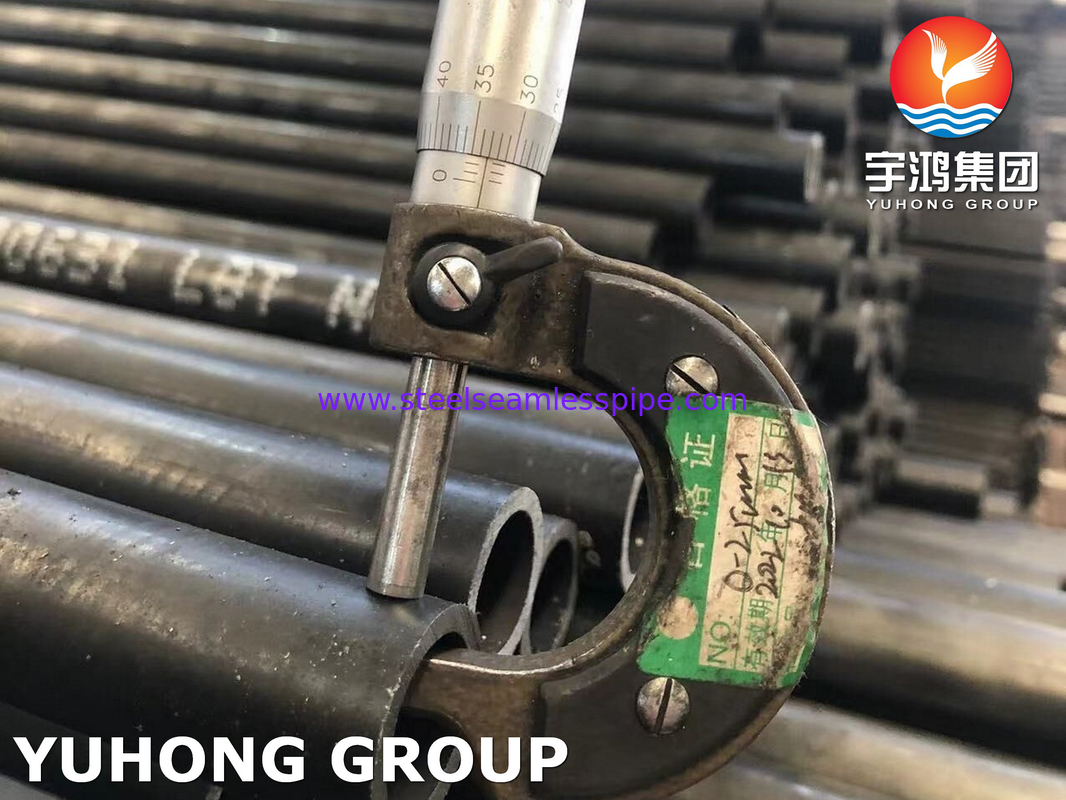

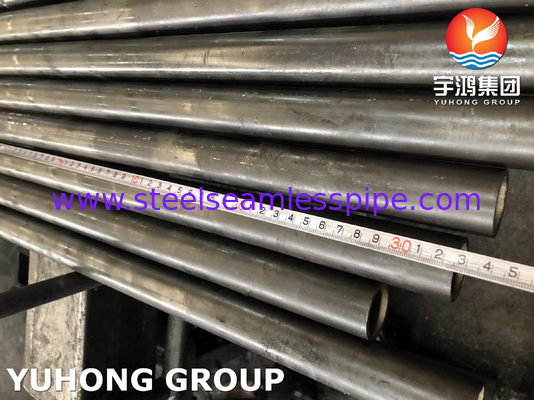

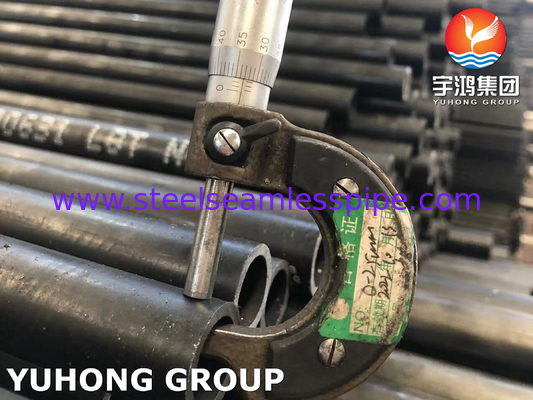

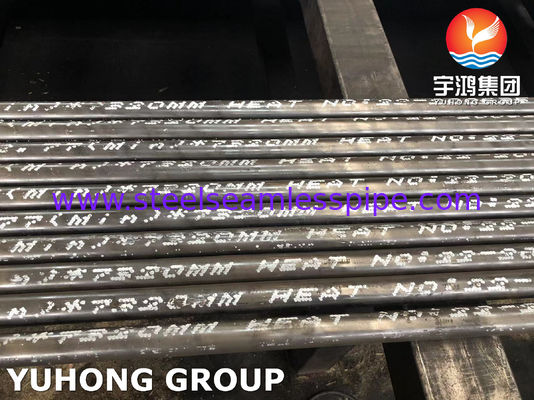

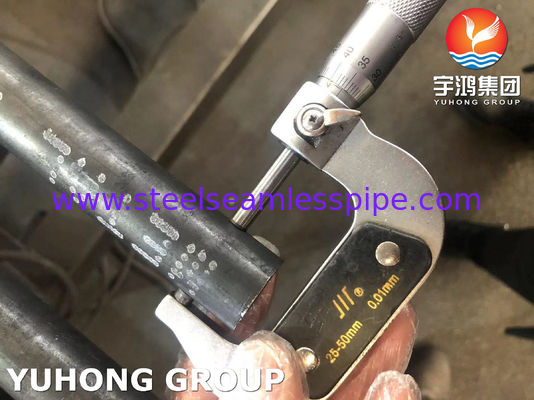

ASME SA179 Seamless Carbon Steel Heat Exchanger , Boiler Tubes
YUHONG Group offers ASME SA179 SMLS carbon steel tubes with high quality which generally are used for heat exchanger and boilers and we sell these products in many years.
ASTM A179/ASME SA179 This specification covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular, heat exchanger, condensers, and similar heat transfer apparatus.
Specifications
| Standard | ASME SA179 | ||||
| Name of Material | Seamless Tubes | ||||
| Manufacture | Cold-drawn | ||||
| Quantity | Feet,metres,or number of lengths | ||||
| Size | 1/8 to 3 in. (3.2 to 76.2mm), Minimum wall thickness | ||||
| Length | Specific or random | ||||
| Heat Treatment | At a temperature of 1200° F (650 °)or higher after the final cold draw pass | ||||
Test Required
Flattening Test / Flaring Test / Flange Test / Hardness Test / Hydrostatic Test
Chemical Composition %
| Carbon | Manganese | Phosphorus,Max | Sulfur,Max |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 |
Mechanical Property
| Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| A179 | ≥180 | ≥325 | ≥35 |
Applications Industry
Pharmaceutical Equipment Off-Shore Oil Drilling Companies
Chemical Equipment Power Generation
Sea Water Equipment Petrochemicals
Heat Exchangers Gas Processing
Condensers & Boiler Specialty Chemicals
Pulp and Paper Industry Pharmaceuticals
