ASME SA423 GR1 Welded Carbon Steel Heat Exchanger , Boiler Tubes

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO9001-2008, API 5L, API 5CT
Model Number:	ASME SA423

Payment & Shipping Terms:

Minimum Order Quantity:	1ton
Price:	1-100000 USD
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle With Plastic Cap
Delivery Time:	30-70 days
Payment Terms:	T/T, L/C
Supply Ability:	1000tons/month

Contact Now

All Products

Stainless Steel Seamless Pipe (278)

Stainless Steel Seamless Tube (267)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (91)

Fin Tube (605)

Heat Exchanger (10)

Heat Exchanger Tube (421)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (211)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (787)

Steel Flange (576)

Others (384)

Detailed Product Description

Product:	Welded Tube	Materialrd:	Carbon Steel
Standard:	ASME SA423	Grade:	GR1
Length:	Or As Required	Alloy Steel Tubes Application:	Heat Exchanger / Boiler Tube
Certificate:	ISO9001-2008, API 5L, API 5CT	Alloy Steel TubesPacking Details:	Ply-wooden Case /Iron Case/ Bundle With Plastic Cap
Highlight:	Carbon Steel Boiler Tubes , Welded Carbon Steel Heat Exchanger Tube , GR1 Carbon Steel Pipe

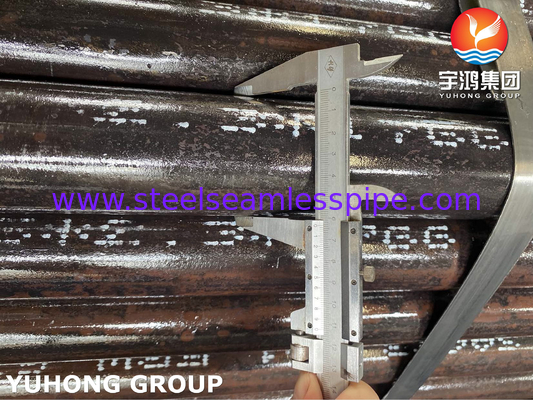

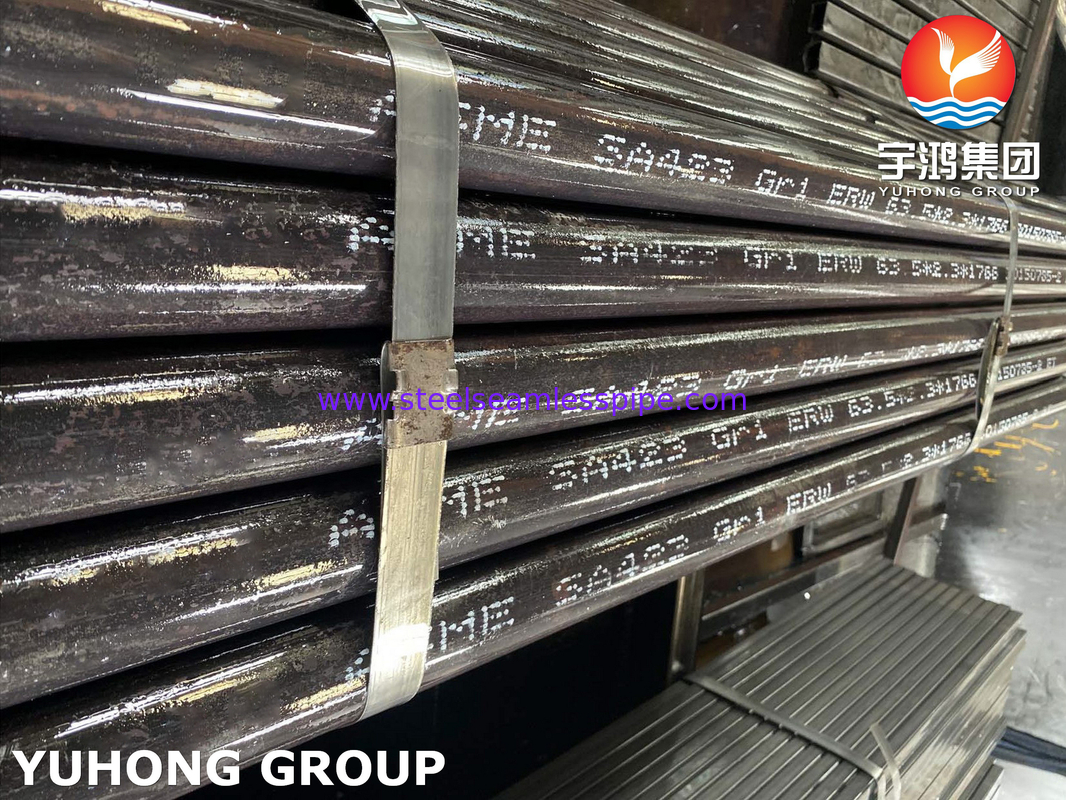

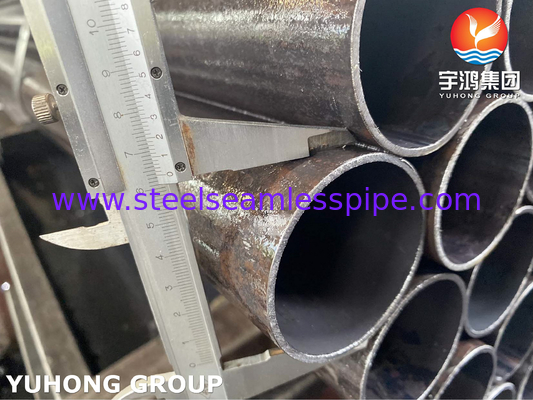

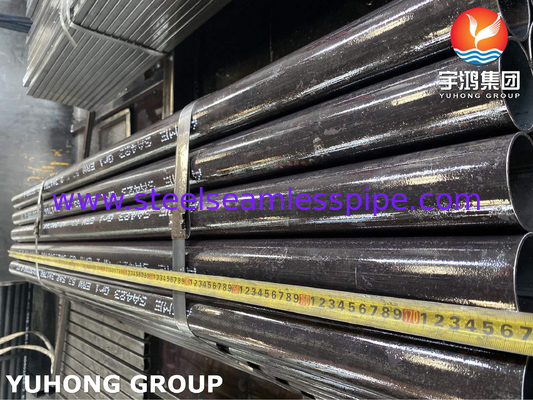

ASME SA423 GR1 Welded Carbon Steel Heat Exchanger , Boiler Tubes

YUHONG Group offers ASME SA423 GR1 welded carbon steel tubes and sells more than 70 countries up to now.

This specification covers minimum-wall thickness, seamless and electric-resistance welded, low-alloy steel tubes for pressure containing parts such as economizers or other applications where corrosion resistance is important.

Specifications

Standard	ASME SA423
Name of Material	Seamless or Electric-resistance Welded Tubes
Manufacture	Hot finished or Cold finished
Quantity	Feet,metres,or number of lengths
Size	O.D.: 1/2 to 5 in. (12.7 to 127mm), Minimum wall thickness:0.9 to 12.7mm
Length	Specific or random
Hardness Requirements	A hardness number not exceeding 170HB or 87HRB

Test Required

Flattening Test / Flaring Test / Flange Test / Hardness Test / Reverse Flattening Test

Hydrostatic or Nondestructive Electric Test

Chemical Composition % of ASME SA423

Carbon,Max	0.15
Manganese,Max	0.55
Phosphorus	0.06-0.16
Sulfur,Max	0.06
Silicon,Min	0.10
Copper	0.20-0.60
Chromium	0.24-1.31
Nickel	0.20-0.70

Mechanical Property of ASME SA423

Steel Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
GR 1	≥255	≥415	≥25

Applications Industry

Pharmaceutical Equipment Off-Shore Oil Drilling Companies
Chemical Equipment Power Generation
Sea Water Equipment Petrochemicals
Heat Exchangers Gas Processing
Condensers & Boiler Specialty Chemicals
Pipeline Pharmaceuticals
