Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ISO9001-2008, API 5L, API 5CT |
Model Number: | ASTM A192 |
Minimum Order Quantity: | 10PC |
---|---|
Price: | 1-100000 USD |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
Delivery Time: | 10-65 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000tons/month |
Product: | Seamless Tube | Materialrd: | Carbon Steel |
---|---|---|---|
Standard: | ASTM A192 | Grade: | A192 |
Length: | Or As Required | Application: | High Pressure Service |
Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
High Light: | Seamless Carbon Steel Tubes,ASTM A192 Carbon Steel Tubes,High Pressure Seamless Tube |

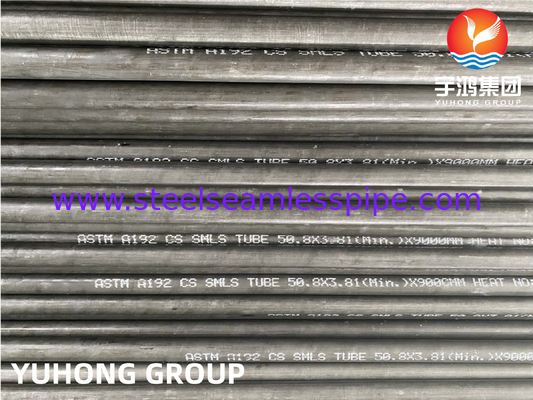

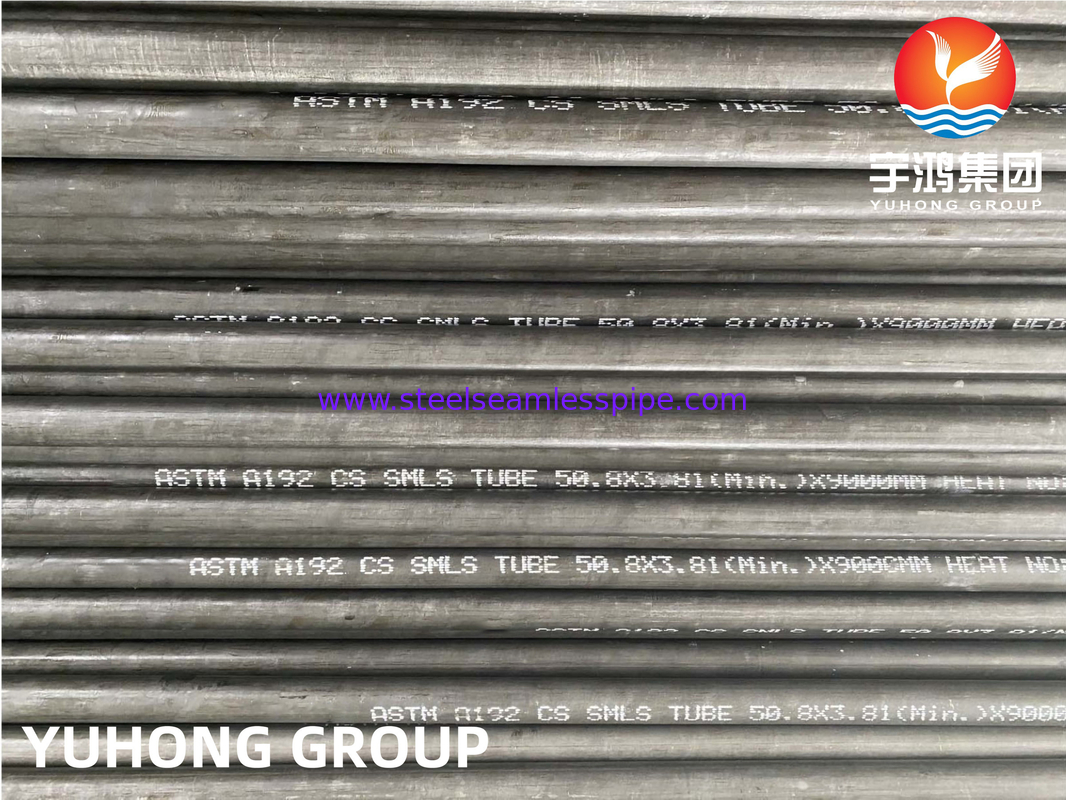

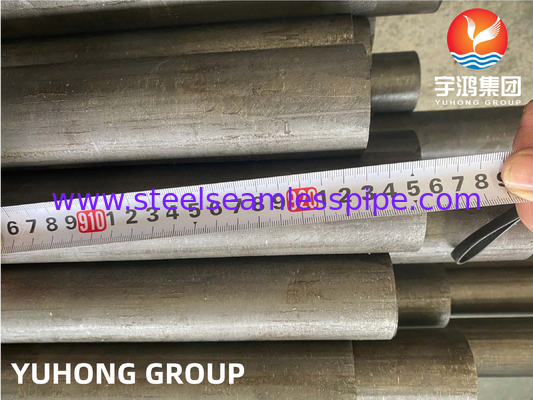

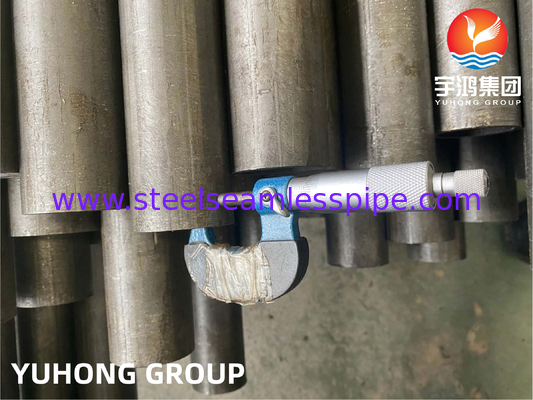

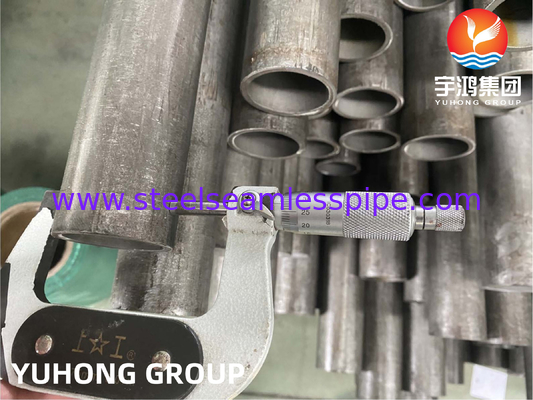

ASTM A192 Seamless Carbon Steel Tubes For High Pressure Service
YUHONG Group offers ASTM A192 seamless carbon steel tubes and sells more than 70 countries up to now.
This specification covers minimum-wall thickness, seamless carbon steel boiler and superheater tubes for high pressure service.Hot-finished tubes need not be heat treated. Cold-finished tubes shall be heat treated after final cold-finished at a temperature of 1200° F (650°C) or higher.
Specifications
Standard | ASTM A192 | ||
Name of Material | Seamless Tubes | ||
Manufacture | Hot finished or Cold drawn | ||
Quantity | Feet,metres,or number of lengths | ||
Size | O.D.: 1/2 to 7 in. (12.7 to 177.8mm), Minimum wall thickness:2.2 to 25.4mm | ||
Length | Specific or random |
Test Required
Flattening Test / Flaring Test / Hardness Test / Hydrostatic Test
Chemical Composition % of ASTM A192
Carbon | 0.06-0.18 |
Manganese | 0.27-0.63 |
Phosphorus,Max | 0.035 |
Sulfur,Max | 0.035 |
Silicon,Min | 0.25 |
Mechanical Property of ASTM A192
Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
A192 | ≥180 | ≥325 | ≥35 |
Applications Industry
Petrochemicals
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
Chemical Equipment
Power Generation
Sea Water Equipment
Gas Processing
Heat Exchangers
Specialty Chemicals
Condensers & Boiler
