| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 T9 U Bend Tube |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Iron Case |
| Delivery Time: | Depending on QTY |
| Payment Terms: | L/C at sight, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | Alloy Steel U Bend Tube | Standard: | ASTM A213/ASME SA213 |
|---|---|---|---|
| Material Grade: | Alloy Steel Grade T9 | Length: | Single, Random |
| Technique: | Cold Rolled And Cold Drawn | NDT: | HT, ET, UT Etc. |
| Application: | Boiler Tube Oil / Gas Drilling, Chemical Industry, Etc. | ||
| High Light: | ASTM A213 Boiler U Tube,T9 Alloy Steel Seamless Tubes,Alloy Steel U Bend Tube Seamless |
||

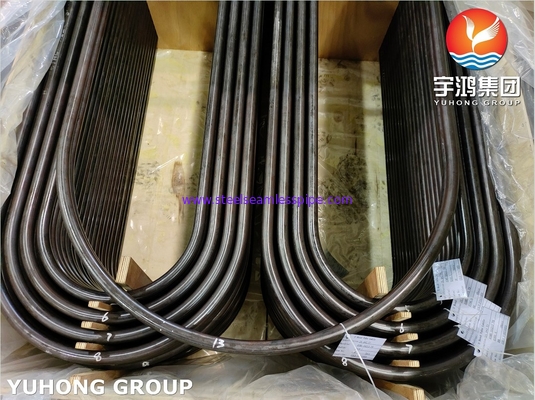

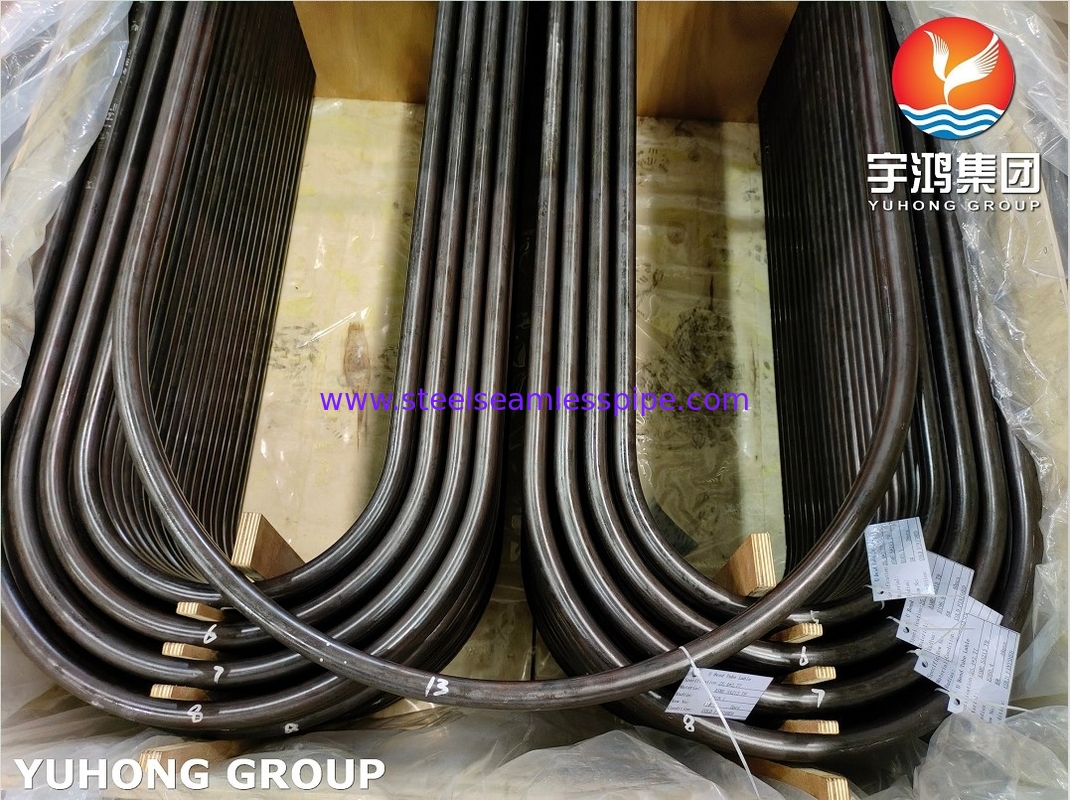

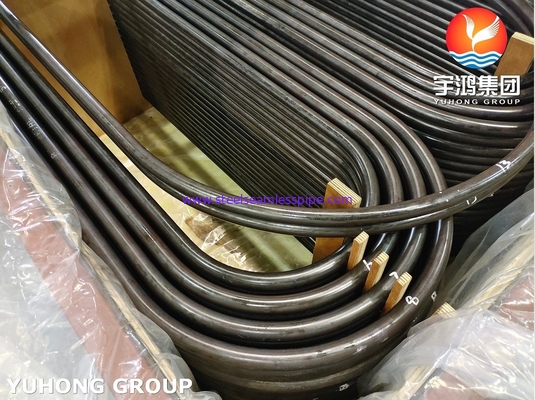

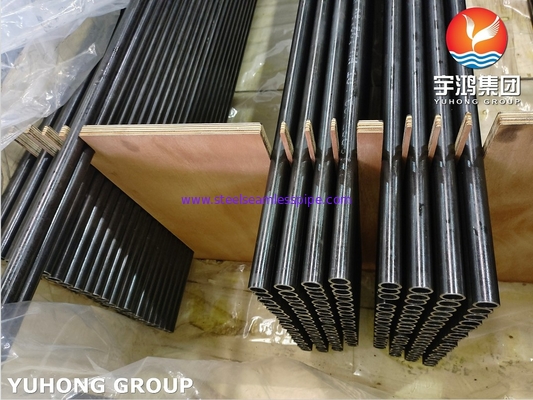

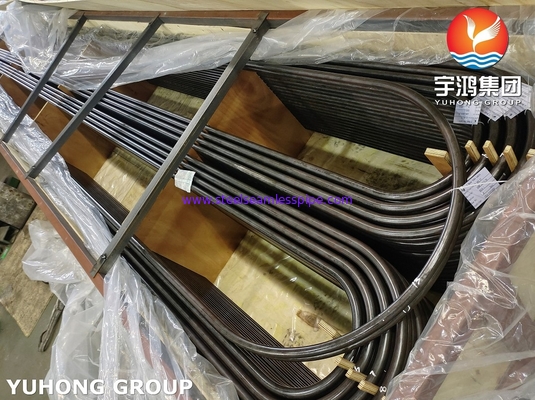

ASTM A213 T9 Alloy Steel Seamless Tubes For Boiler And Heat Exchanger
With decades of production and export experience in this field, YUHONG GROUP is proud to say that we can handle kinds of projects, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc. Every year we sell more than 80000 tons of stainless steel pipes and tubes. Our products have been well known among the customers around the world. YUHONG GROUP has build long term relationship with these valuable clients, which already cover more than 65 countries.
Description
SA213 T9 is a seamless ferritic alloy steel pipe for high temperature conditions. A213 is commonly referred to as Chrome-molybdenum tube because of the chemical composition of molybdenum (Mo) and chromium (Cr). Typical components of SA213 T9 tubing include 8% to 10% chromium, 0.3% to 0.6% molybdenum and small amounts of carbon, manganese, silicon, phosphorus, sulfur and other elements. Molybdenum increases the strength of steel as well as its elastic limit, wear resistance, impact mass, and hardenability. Molybdenum increases resistance to softening, inhibits grain growth, and makes chromium steel less embrittlement. Molybdenum is the most effective single additive for increasing creep strength at high temperature. It also enhances the corrosion resistance of the steel and inhibits pitting. Chromium (or chromium) is an essential component of stainless steel. Any steel with a chromium content of 12% or higher is considered stainless steel. Chromium is almost irreplaceable in terms of oxidation resistance at high temperatures. Chromium increases tensile, yield and hardness at room temperature. The composition of chrome-molybdenum steel tubes makes them ideal for power plants, refineries, petrochemical plants, and oilfield services, where fluids and gases are transported under extremely high temperatures and pressures.
ASTM A213 Grade T9 Alloy Steel Seamless Tubes Chemical Composition
|
Element |
C |
Cr |
Mn |
Mo |
P |
S |
Si |
|
Grade T9 |
0.05 - 0.15 |
0.90 - 1.10 |
0.30 - 0.60 |
0.90 - 1.10 |
0.025 max |
0.025 max |
0.25 - 1.00 |
SA 213 Gr T9 Seamless Tubing Equivalent Material Grade
|
Grade |
UNS |
Steel Number |
Trade Name |
|
T9 |
S50400 |
1.7386 |
9Cr-1Mo |
Seamless Heat Exchange Alloy Steel T9 Tubes Mechanical properties
|
Tensile Strength , MPa |
Yield Strength, MPa |
Elongation, % |
Hardness, HB |
|
415 min |
205 min |
30 min |
179 max |
Application
· Textile machinery.
· Oil and gas industry
· Pipeline Systems
· Pharmaceutical processing industry
· Fluid piping.
· Modern architecture.
· Water waste projects.
