Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008 |
| Model Number: | ASTM B167/ UNS NO6601 |
| Minimum Order Quantity: | 10 PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Bundle/Ply Wooden Case |
| Delivery Time: | 5-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 tons/month |
| Product: | Steel Pipe | Standard: | ASTM B167 |
|---|---|---|---|
| Material: | Nickel Chromium Alloy | Grade: | UNS NO6601 |
| Length: | 6 Meters Or Customized | Shape: | Round/Square/Rectangle |
| Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Package: | Standard Seaworthy Package |
| High Light: | NO6601 Nickel Alloy Pipe,Nickel Chromium Alloy Seamless Pipe,Nickel Alloy Seamless Steel Pipe |
||

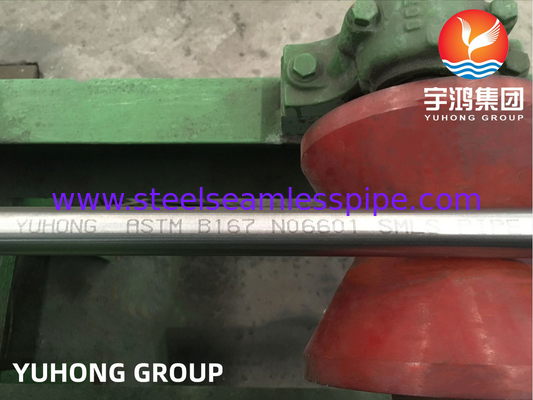

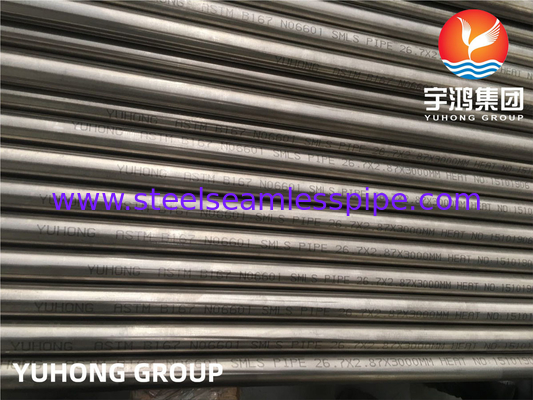

ASTM B167 UNS NO6601 Nickel Chromium Alloy Seamless Pipe
YUHONG offers ASTM B167 UNS NO6601 nickel chromium alloy pipe and we sell these products in more than 70 countries up to now.
This specification covers nickel-chromium-iron alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, and N06045) and nickel-chromium-cobaltmolybdenum alloy (UNS N06617) in cold-worked annealed, hot-worked annealed, and hot-finished seamless pipe and tube intended for general corrosion resistant and heat resistant applications.
Specifications
| Standard | ASTM B167 / ASME SB167 | ||||
| Name of Material | Nickel chromium alloy | ||||
| Keywordas | Seamless pipe; seamless tube;nickel chromium alloy,etc. | ||||
| Condition | Annealed | ||||
| Quantity | Feet / metres / or number of lengths | ||||
| Size | OD:0.25-16 inch(6.35-406.4mm) WT:0.02-2inch(-50.8mm) | ||||
| Length | Specific or random | ||||
Test Required

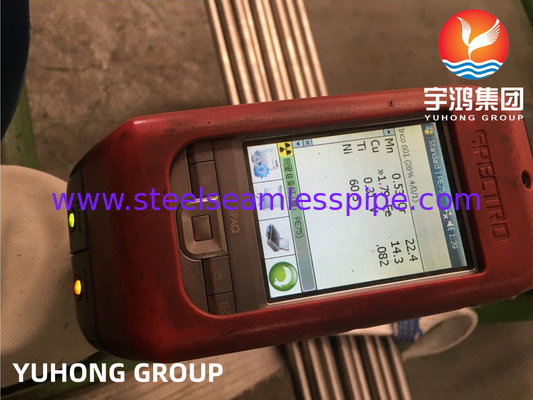

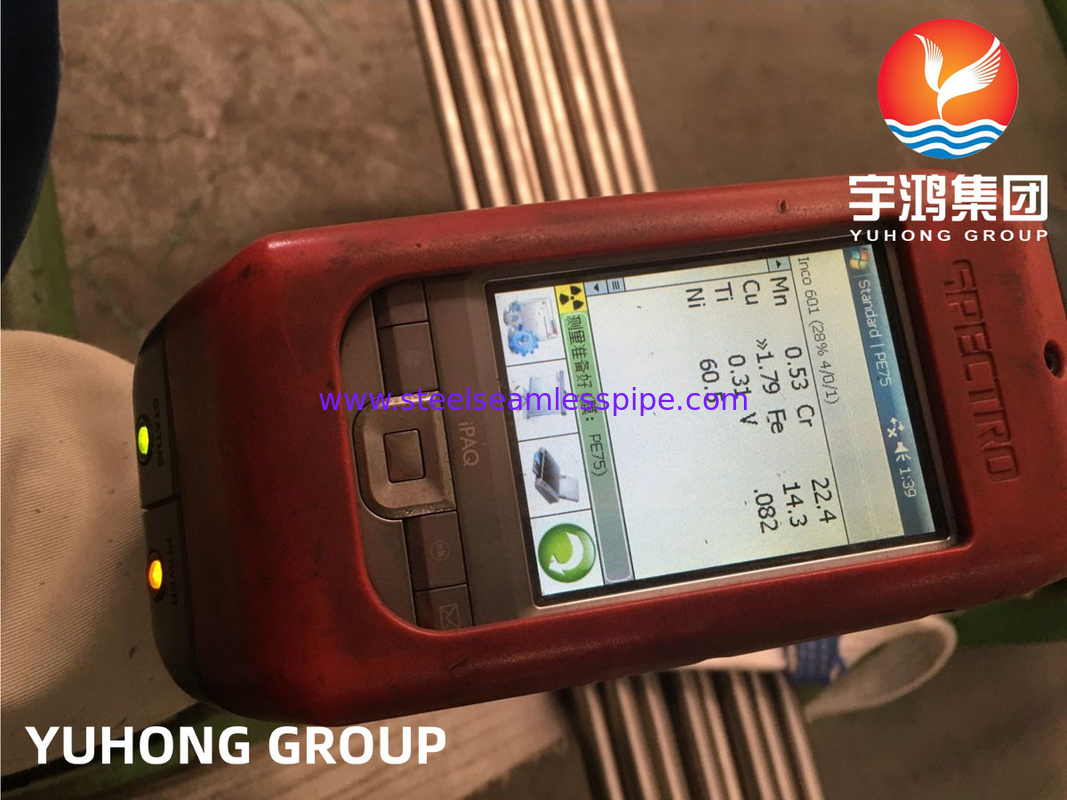

Chemical Analysis/ Mechanical Properties/ Hardness conversion/ Tension Test / Rounding Method
Hydrostatic Test / Nondestructive Electric Test
Chemical Composition UNS NO6601
| Element | Content, % |
| Nickel [Ni] | 58-63 |
| Chromium [Cr] | 21-25 |
| Iron [Fe] | remainder |
| Manganese [Mn] | 1.5 Max |
| Aluminum [Al] | 1-1.7 |
| Carbon [C] | 0.1 Max |
| Copper [Cu] | 1 Max |
| Silicon [Si] | 0.5 Max |
| Sulfur [S] | 0.015 Max |
Mechanical Properties
| UNS NO6601 | Tensile Strength min | Yield Strength (0.2% offset) min |
|
Cold-worked annealed or hot-worked annealed: (all sizes)
|
80 000 psi (550 MPa)
|
30 000 psi (205 MPa)
|
| Elongation in 2 in. or 50mm or 4D, min %: 30% | ||
Applications Industries
Chemical Equipment
Thermal Treatment Plants
Petrochemicals- Oil Refining Chemical,etc
Condensers & Boiler & Heat Exchangers.
Food Processing- Salt Making,etc.
Energy Field- Nuclear Power Generation,Tidal Power Generation,etc.
Environmental Protection Field- Gas Processing,Waste Water Treatment,Combustion Chambers of Solid Waste Incinerators,et
