Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | T9 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A213 / ASME SA213 | Material Grade: | T9 |
|---|---|---|---|
| Type: | Seamless | Outer Diameter(round): | 8 - 1200 Mm |
| Thickness: | 2 - 70 Mm | Technique: | Hot Rolled,Cold Drawn,Cold Rolled |
| Length: | 6m Or As Required. | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |
| High Light: | Ferritic Alloy Steel Seamless Tube,Heat Exchanger Alloy Steel Seamless Tube,2mm Alloy Steel Boiler Tube |
||

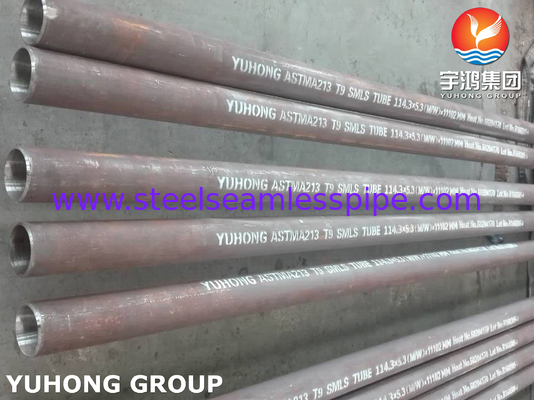

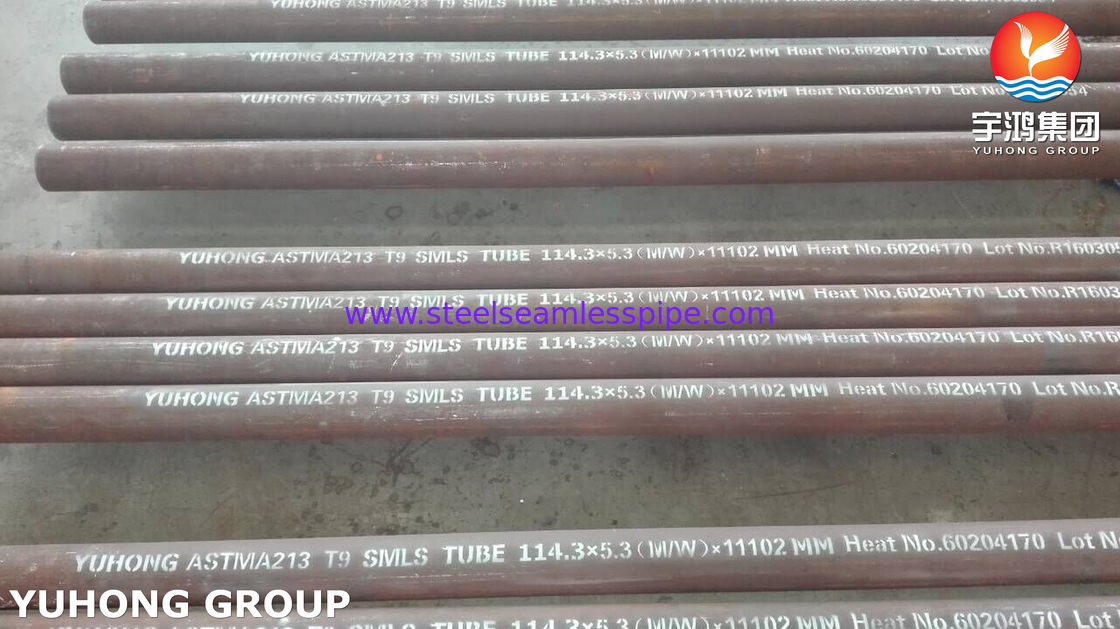

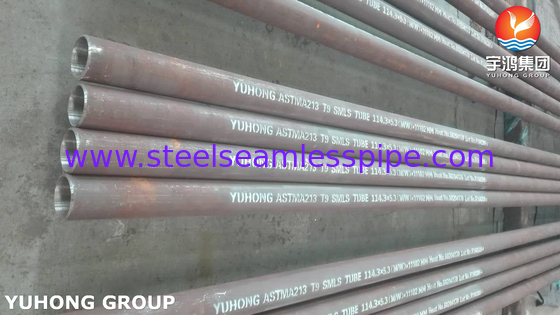

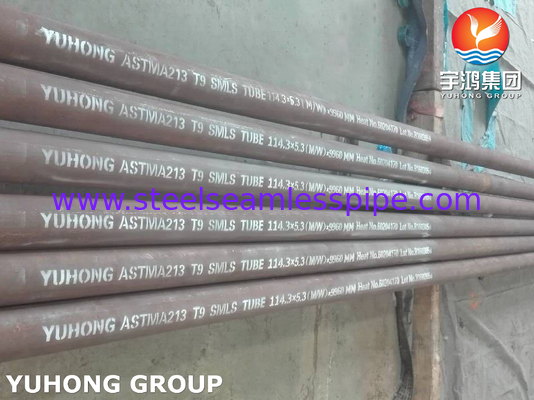

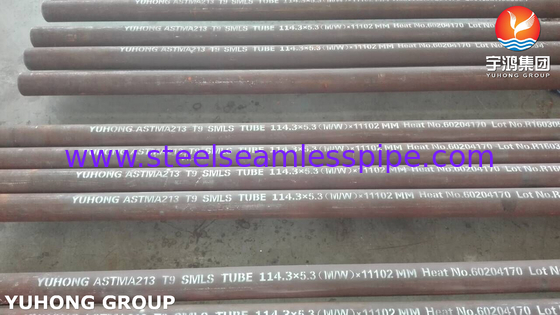

ASTM A213 T9 Ferritic Alloy Steel Seamless Tube For Boiler And Heat Exchanger
A213 Gr.T9 Seamless Tubes have more strength, superior corrosion resistance, and the ability to withstand higher pressure than T9 welded tube. ASTM A213 Gr.T9 has a high percentage of other elements apart from iron and carbon, such as silicon, manganese, nickel, copper, titanium and chromium. Alloy elements are added to improve the hardness and durability of the A213 T9 tube. And it improves corrosion resistance due to the high amount of other elements like chromium. In general, alloy steel has comparatively low strength, high weld ability, high melting points, high ductility, and high corrosion resistance.
ASTM A213 T9 Alloy Steel Seamless Tube is made up of a low carbon alloy steel that is suitable for high heat and high pressure applications like the chemical, power generation, petroleum and oil and gas industrial applications.
Features:
High temperature strength
Excellent resistance to corrosion and oxidation
Good weldability and formability
| Specifications | ASTM A213 / ASME SA213 |
| Dimensional | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Size | 1 / 2" - 24" |
| Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Manufacturing Techniques | Seamless / Fabricated / CDW / 100% X Ray Welded |
| Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| End Types | Plain End, Beveled End, Threaded One End, Threaded Both Ends |
Equivalent Grades:
| Grade | UNS | Steel Number | Trade Name |
| T9 | S50400 | 1.7386 | 9Cr-1Mo |
Chemical Composition:
| C | Cr | Mn | Mo | P | S | Si |
| 0.05 - 0.15 | 0.9 - 1.1 | 0.3 - 0.6 | 0.9 - 1.1 | 0.025 max | 0.025 max | 0.25 - 1 |
Mechanical Properties:
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation(%) | Hardness(HRB) |
| ≥415 | ≥205 | ≥30 | ≤85 |
Applications:
Petrochemical Industry
Chemical Industry
Nuclear Power Plant
Oil and Gas Plant
Research & Development Industry
Pulp & Paper Industry
