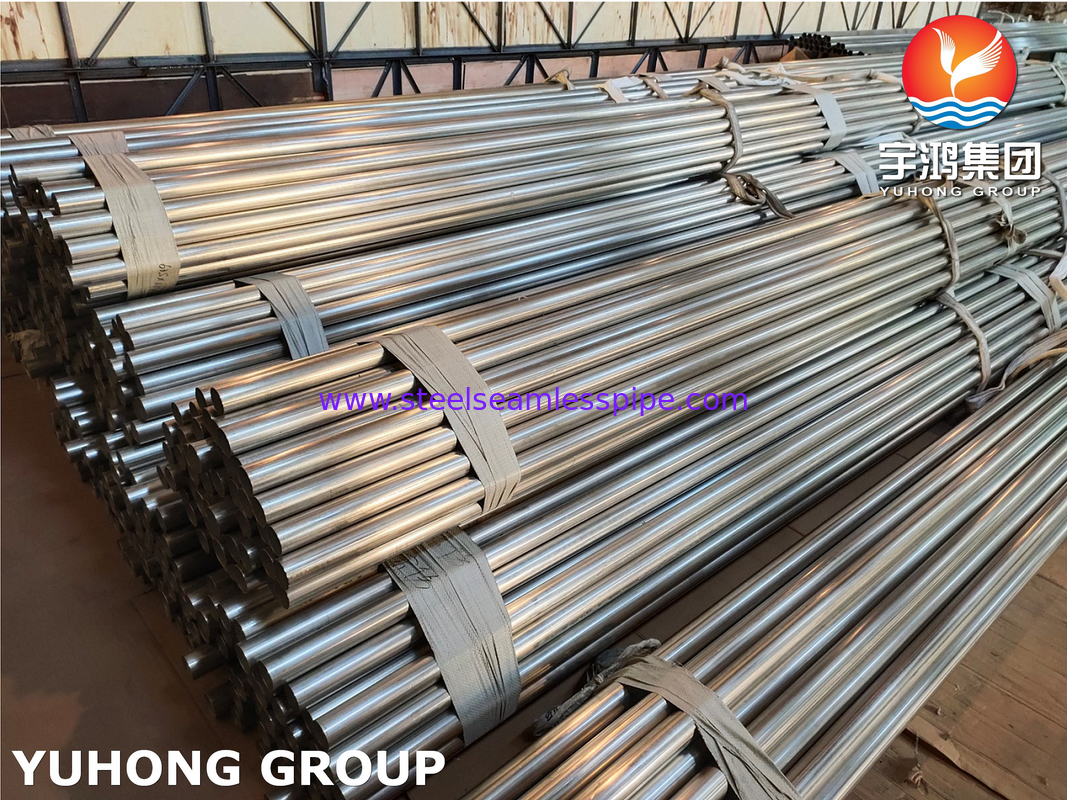

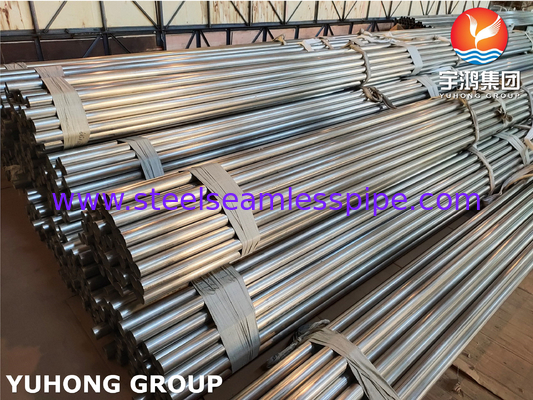

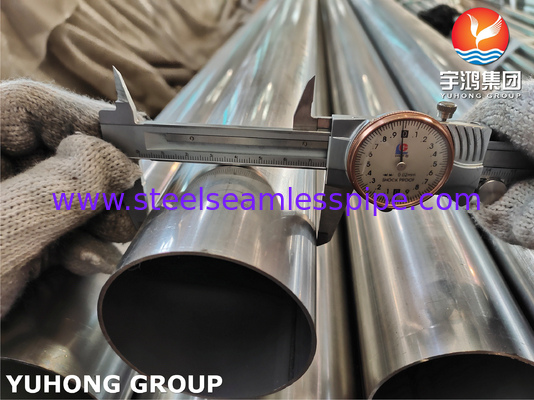

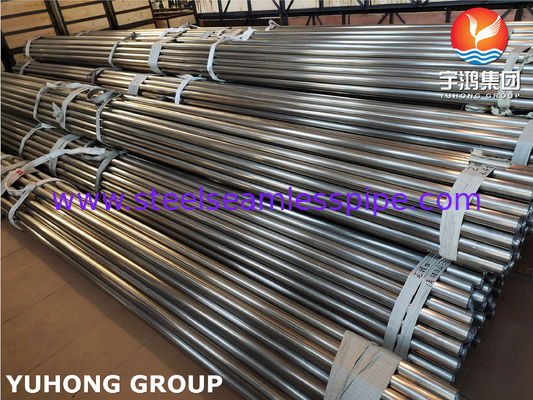

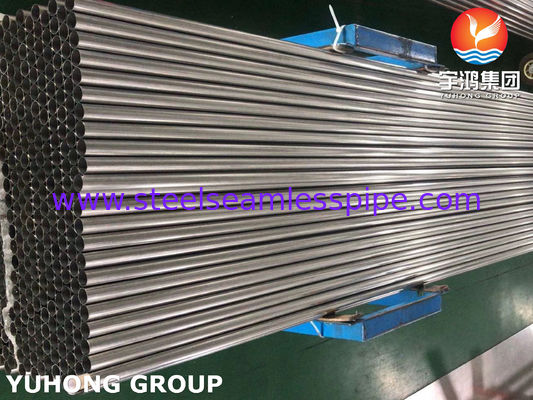

ASME SA249/ASTM A246 TP316L Stainless Steel Welded Tube BA Surface in Bundle Package
ASME SA 249 TP316L stainless steel tube is a type of welded tube, ASME SA 249 specification specifies Aaustemitic steel welded tubes for heat exchanger system, It is the same with ASTM A249 standard, TP316L stainless steel is typical grade used in special environment, which require good corrosion resistance steel.
| C | Mn | P | S | Si | Ni | Cr | Mo | Fe | |
|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.0 | 11-14 | 16-18 | 2-3 | Balance |
| 316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.0 | 10-14 | 16-18 | 2-3 | Balance |
| Tensile Strength(Mpa), Min | Yield Point(Mpa), Min | Elongation(%), Min | Hardness, Max | |
|---|---|---|---|---|
| 316 | 515 | 205 | 35 | B90 |
| 316L | 485 | 170 | 35 | B90 |
There are several alternatives of TP316 in different standards, some of them referring to chemical composition are little difference, noticing SUS316L is JIS standard grade, Ni content 12% – 15%.
We offer TP316L welded stainless steel tube conforming to ASME SA 249 / ASTM A249, outside diameter and wall thickness tolerances should be controlled according to SA249 or ASTM A1016, aiming to offer closer tolerances welded tubes, specific details on tolerances
ASME SA 249 TP316L stainless steel tube is applied in condenser, boiler, super heater and heat exchanger and other pressure equipment, TP316L stainless steel has high strength and corrosion resistance characteristics compared to typical Austenitic stainless steel 304, the tubes are able to work under high temperature and corrosive environment, of course TP316L tube is a good option, and it is durable and cost effective.
