ASTM A335 P9 With 11Cr Studded Tube For High Temperature Service

ASTM A335 P9 with 11Cr Studded Tube For High Temperature Service

Description

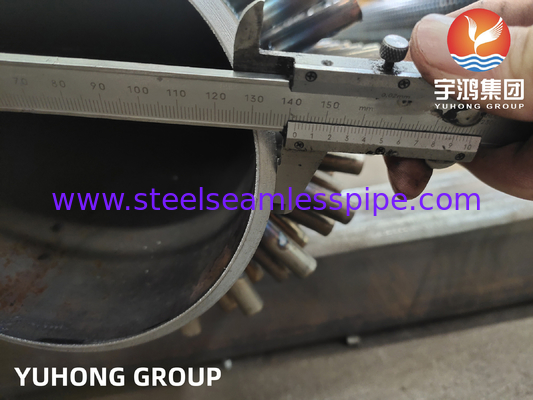

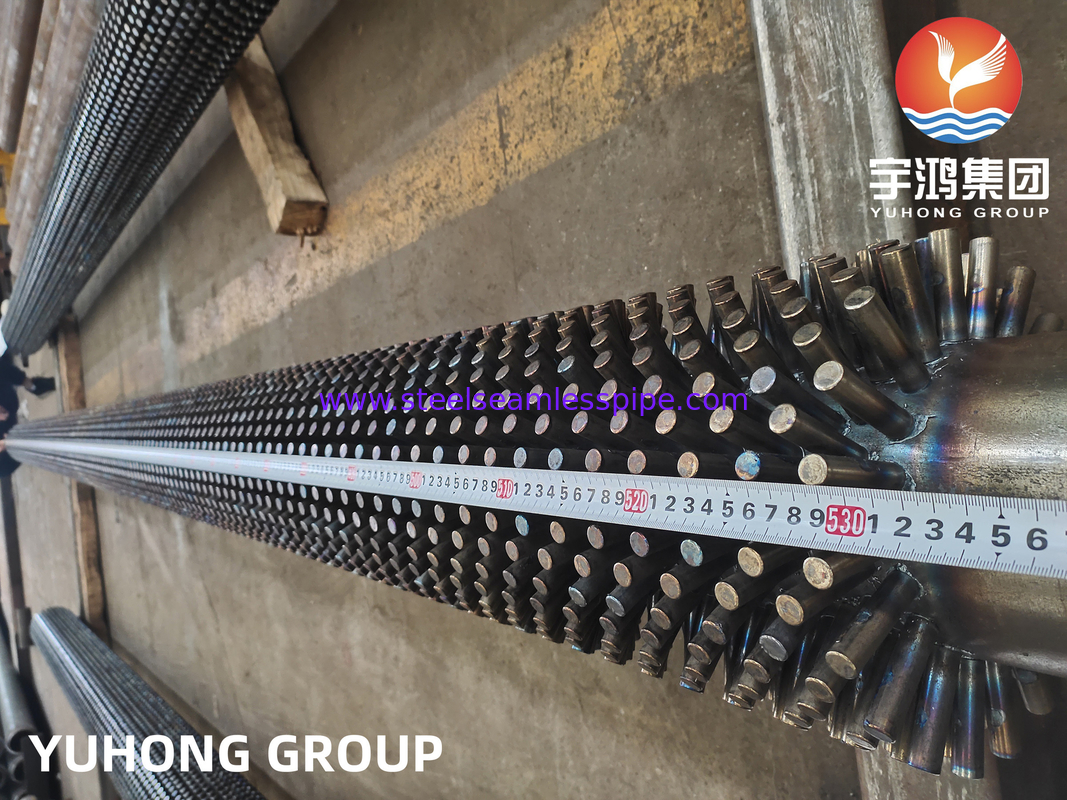

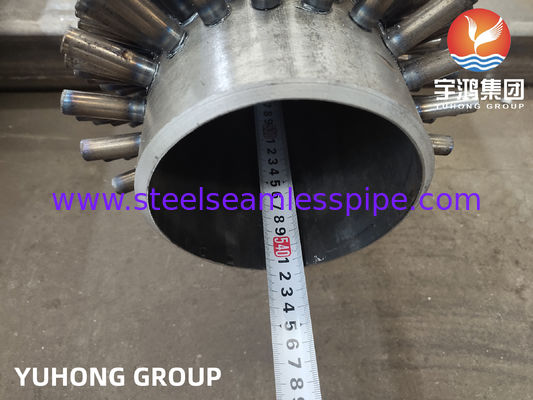

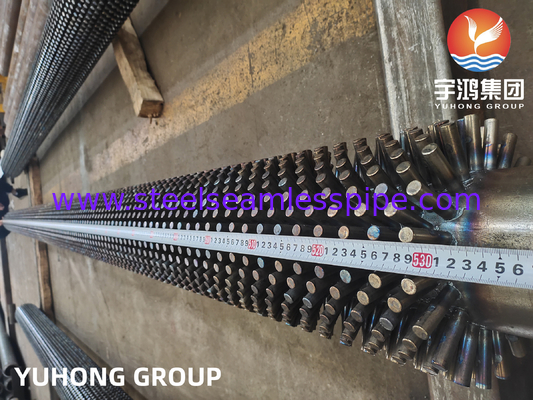

Studded tube is also called Studded tube. In the petrochemical industry, Studded tube has a wide range of applications. Especially in the convection chamber of tubular heating furnace, in order to strengthen the heat transfer effect outside the tube, the heat transfer element often uses Studded tube.
The studded tube can improve the heat transfer coefficient of the flue gas side, the studded tube area is 2 to 3 times that of the light tube, and the same heat intensity as radiation can be obtained under reasonable design due to the application of studded tube. The company's studded tube equipment adopts resistance welding, the welding process adopts PLC program control, feed motor and indexing use servo motor, man-machine interface can set the number of nails, indexing parameters and compensation coefficient, according to the process requirements to ensure product quality and accuracy.
The studded tube enhanced heat exchange element is welded by a series of cylindrical shapes on the surface of the steel pipe by the studded tube automatic welding machine, which is characterized by :

1, square circular equipartition arrangement welding 2, hexagonal circular equipartition arrangement welding

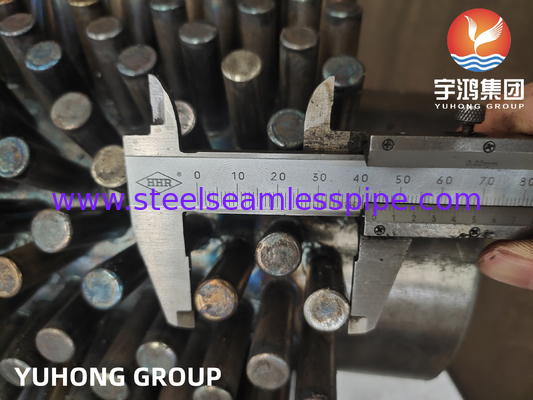

Compared with the traditional studded tube manufacturing process, the square type and hexagonal studded tube strengthen the heat exchange element by welding once forming, changing the phenomenon of the welding studded falling off after the forced stretching molding of the tool after welding, making the welding of the needle more firm and the welding needle not easy to fall off. The welding studded, diameter, length, longitudinal spacing, the number of circumferential welding studded and the Angle of the welding studded are all factors that affect the heat transfer of the studded tube.
Therefore, it must be considered comprehensively and systematically in order to have more practical application. The use of square and hexagonal circular equidivided arrangement of welded and studded tubes has a larger expansion surface, and the studded tube has a disturbing effect on the fluid, which can greatly improve the heat transfer coefficient, especially suitable for high-viscosity oil, heavy oil and other media to enhance heat transfer occasions.
Product characteristics

1.As a new type of enhanced heat transfer element, the main advantage of the needle tube is to reduce the thermal resistance and greatly improve the heat transfer coefficient.

2.Because the needle aid of the needle tube is a cantilever structure, the needle aid vibrates under the impact of the air flow, making the soot difficult to accumulate; Coupled with the strong primary flow of flue gas, the needle tube heat exchanger element has a strong self-cleaning ability.

3. The studded tube has compact structure, low metal consumption per unit heat exchange, small size and small footprint. The square-shaped and hexagonal studded tube heat transfer elements have the advantages of good heat transfer performance, less ash accumulation, small volume, etc., and have broad application prospects in heat transfer and energy saving projects.




Application

Petrochemical and oil refining industry
Fluidized bed reactor
Hydrogenation reactor
Power and energy industry
Circulating fluidized bed boiler
Coal gasifier
Chemical and metallurgical industry
High temperature reactor
Waste heat recovery system
Marine and ship engineering
Desalination evaporator
