Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASME SA249 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-135000USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 10-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Product: | Welded Bend U Tube | Materialrd: | Austenitic Steel |
|---|---|---|---|
| Standard: | ASME SA249 | Grade: | TP316L |
| Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |

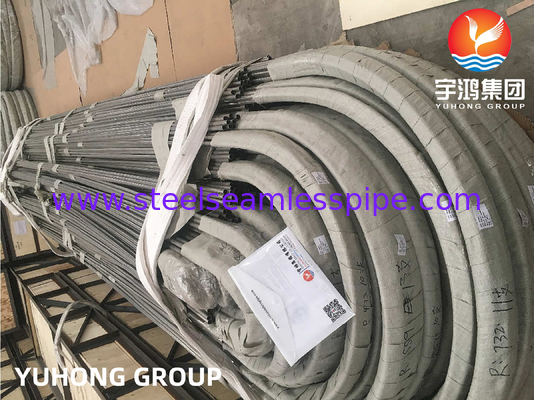

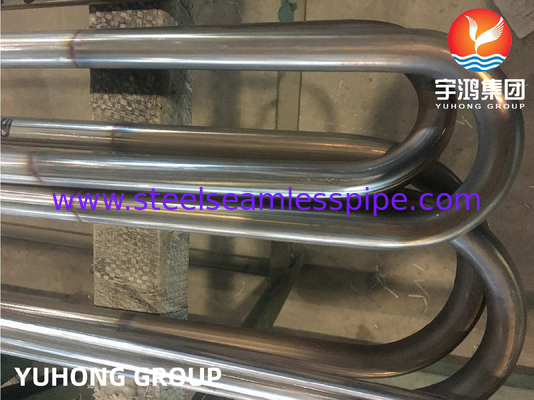

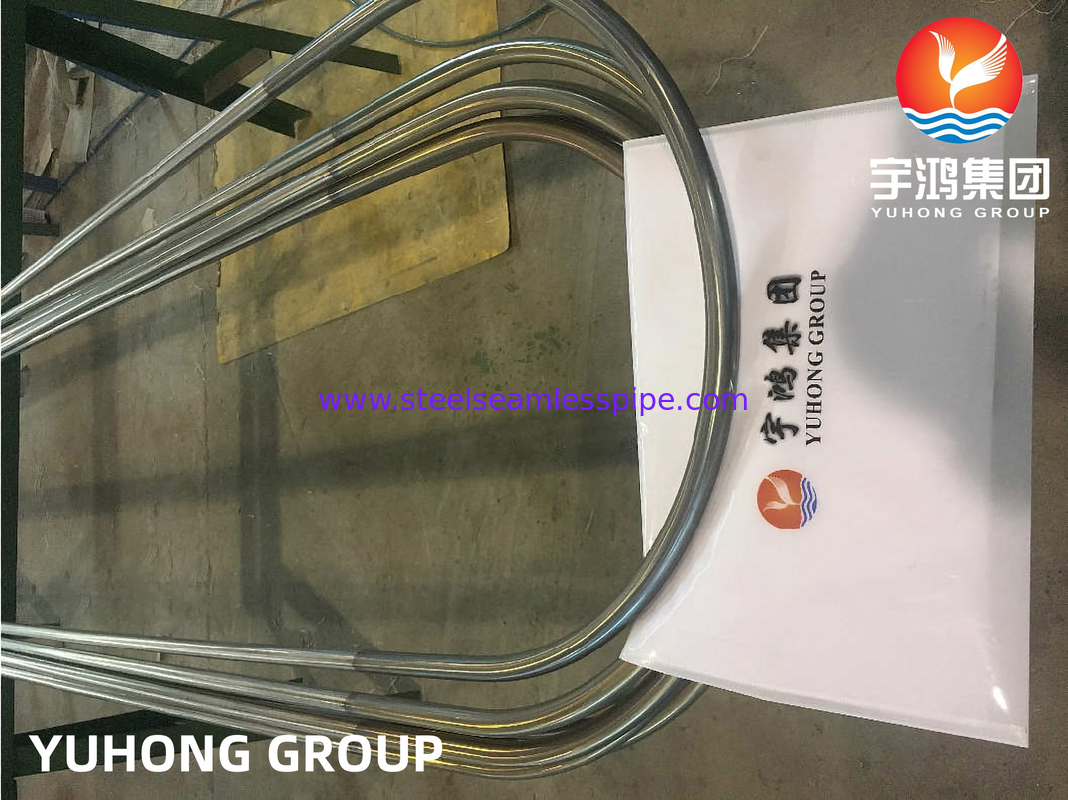

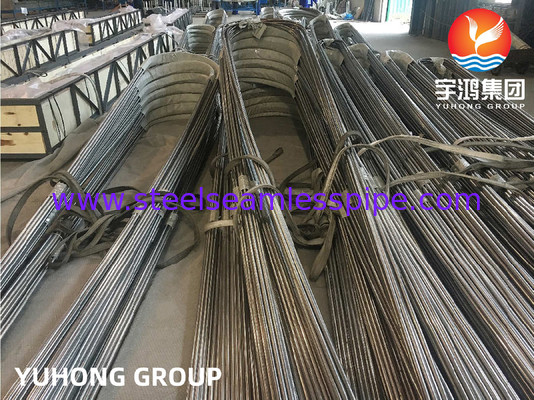

ASME SA249 Welded SS TP316L Bend U Boiler Tubes
YuHong can offer ASME SA249 TP316L welded austenitic steel bend U tubes and we sell these products with highest quality in more than 70 countries.
ASME SA249 / ASTM A249 This specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.
TP316L stainless steel pipe is a high-strength, corrosion-resistant, high-temperature-resistant material, which is widely used in petroleum, chemical, pharmaceutical, food and other fields. The tensile strength, flexural strength and elastic modulus of TP316L stainless steel pipe are much higher than traditional materials. Especially in high temperature and low temperature environments, the change characteristics of its mechanical properties are more obvious.
U tubes are manufactured by bending straight tubes. And bending is done cold on an automatic U-bend. To ensure tube wall thinning and diameter ovality are controlled, tube bending is accomplished with a mandrel inserted into the tube. And the U-bend of the U-tube is stress relieved under controlled conditions and cycles for extended life.
Specifications
| Sizes / Thickness |
The tubing sizes and thicknesses usually furnished to this specification are 1 ⁄ 8 in. [3.2 mm] in inside diameter to 12 in. [304.8 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
|
||||
| Manufacture |
1.The welded (WLD) tubes shall be made from flatrolled steel by an automatic welding process with no addition of filler metal. 2.Subsequent to welding and prior to final heat treatment, the tubes shall be cold worked either in both weld and base metal or in weld metal only. 3.Heavily cold worked (HCW) tubes shall be made by applying cold working of not less than 35% reduction in both wall and weld to a welded tube prior to the final anneal. No filler metal shall be used in the making of the weld. |
||||
| Heat Treatment |
seamless tubing immediately following hot forming may be individually quenched in water or rapidly cooled by other means, provided that the temperature of the tubes after hot forming is not less than the minimum specifified solution temperature (direct
quenched).
|
||||
| Length | As required by clients | ||||
| Surface Condition |
The tubes, after final heat treatment, shall be chemically descaled or pickled free of scale. When bright annealing is used, pickling or chemical descaling is not necessary.
|
||||
| Bending Radius | From 1.5*OD(Outside Diameter) To 1500mm, ≤1.5*OD,necessary To agree precision of geometrics | ||||
| Straight Tubes | specific or random | ||||
Test Required Bend U tube
1.Corrosion Test
2.Chemical Analysis
3.Average Grain Size
4.Ultrasonic Examination
5.Mechanical Tests: Flattening test, Flaring test, Flange test, Hardness Test and Hydrostatic test
6.Reverse-bend and Re. flat tests
7.Eddy Current Testing
8.Hydrostatic Testing
9.Air Under Pressure Test
10.Visual Inspection
Chemical Composition S31603 TP316L
| Chemical Composition | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Cr | Ni | Mo |
| 0.03 | 2 | 0.045 | 0.03 | 1 | 16-18 | 10-14 | 2-3 |
Note:For small diameter or thin walls, or both, where many drawing passes are required, a carbon maximum of 0.040% is necessary in Grades TP304L and TP316L. Small outside diameter tubes are defined as those less than 0.500 in. [12.7 mm] in outside diameter and light wall are those less than 0.049 in. [1.2 mm] in minimum wall thickness.
Mechanical Property S31603
| Steel Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Rockwell Hardness Number max |
| TP316L | 485min | 170min | 35min |
B90 |
Note:Mechanical property requirements do not apply to tubing smaller than 1 ⁄ 8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.
Applications Industry
Pharmaceutical Equipment
Chemical Equipment
Power Generation
Sea Water Equipment
Petrochemicals
Heat Exchangers / Condensers / Boiler
Gas Processing
Specialty Chemicals
Pulp and Paper Industry
