Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | Gr.70, Gr70N |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply Wooden Case with Waterproof Membrane |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A516, ASME SA516 | Material Grade: | Gr.70, Gr.70N |
|---|---|---|---|
| Size: | Customized | Surface Treatment: | Polishing |
| Material: | Stainless Steel, Carbon Steel | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |

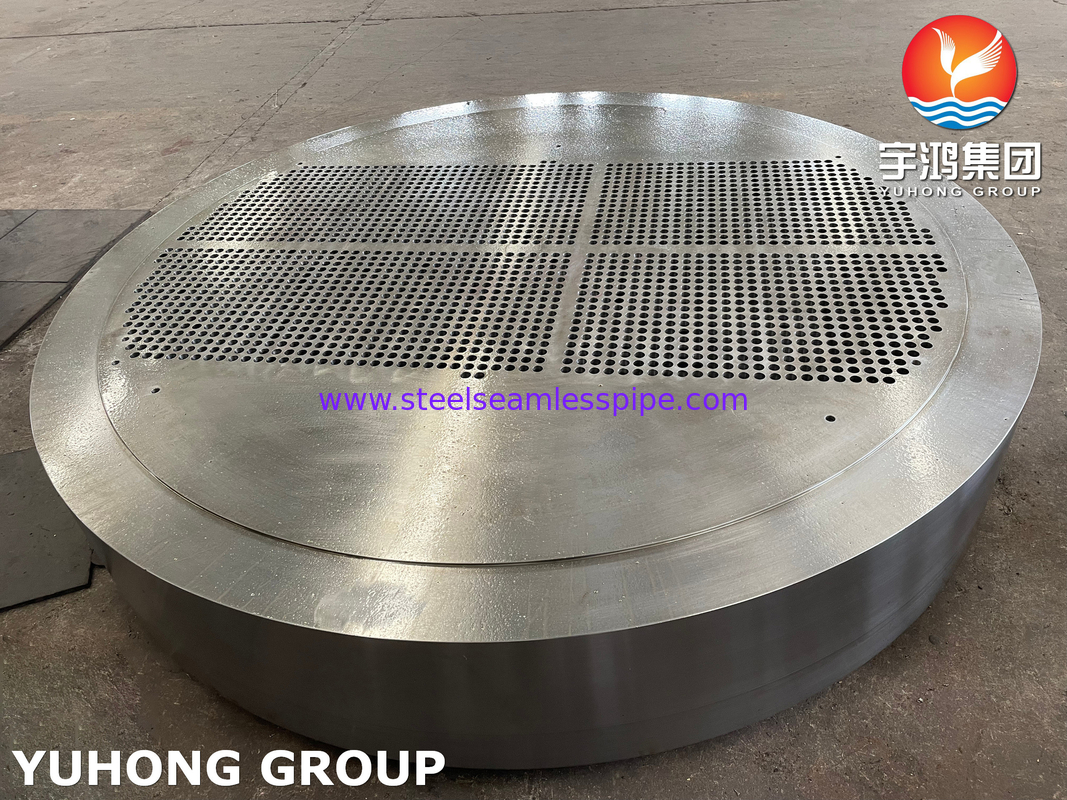

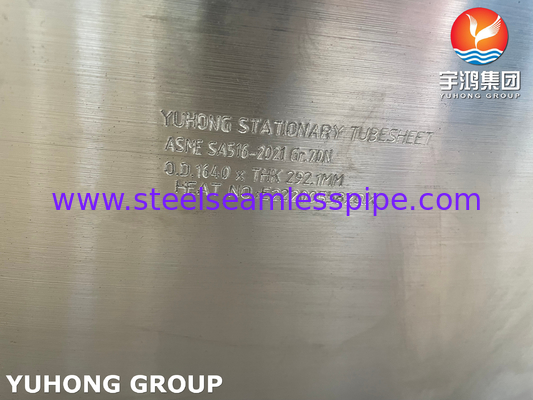

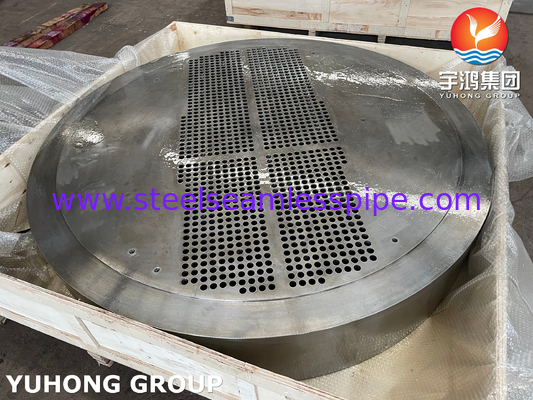

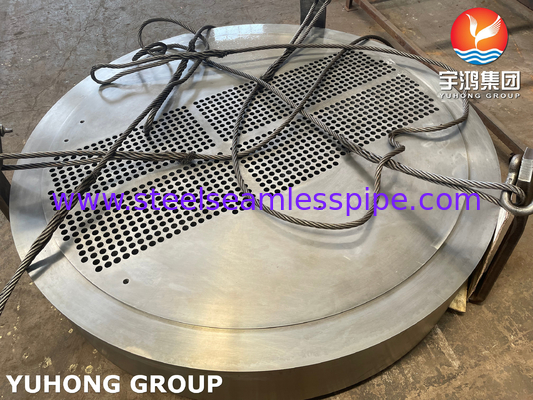

ASTM A516 Gr.70, Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
Tubesheet is widely used in shell and tube heat exchanger, boiler, pressure vessel, steam turbine, etc. The material of metal makes it not only has strong rigidity, but also has a great deal of Heat conduction performance.
ASTM A516 Gr.70+N steel is characterised by good weldability and high resistance to brittle cracking. This material is widely used for manufacturing vessels for pressurised gas, pressure vessels, steam boilers, pressure piping, compressors, etc.
Tubesheet is one of the main components of the shell and tube heat exchanger. Depending on the configuration of the tueb bundle, a heat exchanger can be equipped with one or two tubesheets. These are usually made of low carbon steel material, but depending on the applications such as petrochemical, nuclear, oil&gas, etc., the tubesheet can be made of Stainless Steel or Superalloys.
Feature:
High Gloss
Good Tube Hole Surface Quality
High Precisive
Mechanical Properties:
| Element | Gr. 70N |
| Tensile strength | 70 -90Ksi, 485 - 620Mpa |
| Yield strength | 38Ksi, 260Mpa |
| Elongation in 200mm(min) | 17% |
| Elongation in 50mm(min) | 21% |
| Thickness(max) | 205mm |
Applications:
Tubular heat exchangers
Boilers
Pressure vessels
Steam turbines,
large central air conditioners
Condensers
Evaporators
Pulp and Paper Industry
