Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A276 TP316L |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLYWOOD CASE |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Specification: | ASTM A276 | Grade: | TP316L, Stainless Steel, Nickel Alloy |
|---|---|---|---|
| Shape: | Round | Length: | Can Customize |
| Surface: | Bright | Application: | Oil And Gas Industries, Food Processing Industries, Equipments, Etc |

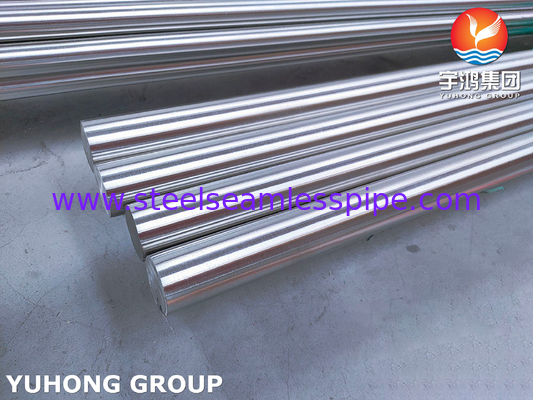

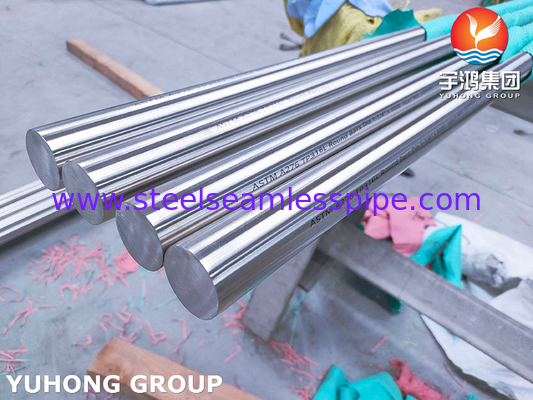

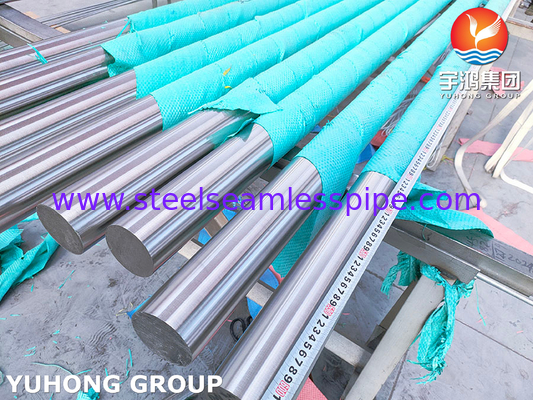

Bright Face Stainless Steel ASTM A276 TP316L 1.4404 Round Bar
What is ASTM A276?
This specification covers hot-finished or cold-finished bars except bars for reforging. It includes rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels.
Size range and material availble
| Range | 3.17 MM TO 350 MM DIA |
| Stainless Steel | ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444. |
| Duplex Steel | ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760. Carbon Steel. ASTM / ASME A 105. |
| Nickel Alloy | ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ), ASTM / ASME SB 164 UNS 4400 (MONEL 400 ), ASTM / ASME SB 425 UNS 8825 (INCONEL 825), ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 ), ASTM / ASME SB 446UNS 6625 (INCONEL 625), ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 ) ,ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ) |
| Alloy Steel | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91. ASTM / ASME A 729 GR B 11 & B 22. |
Stainless Steel 316L Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
A276 316L Round Bar Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
A276 316L Round Bar Mechanical Properties
| Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
316L Heat Treatment
Annealing: The recommended annealing temperatures for 316L wrought steel is 1400 °C (1900 °F).
Stress Relieving: Stress relief is usually not required unless you know or suspect that the environment will cause stress corrosion.
Applications:
Oil and Gas Industries
Food Processing Industries
Equipments
Pipeline
