Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, LR, DNV, GR, KR, GOST, TUV, TS, ISO |
| Model Number: | ASTM A213/ ASME SA213 TP321 , TP321H, TP347H, TP317L , TP904L |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Material Grade:: | TP321 , TP321H, TP347H, TP317L , TP904L | Standard:: | ASTM A213 , ASTM A269 , ASME SA213 |
|---|---|---|---|
| Type:: | U Bend , Straight ,Coil, Snake Tube | Surface:: | Mill Finished, Bright Annealed , Polished |
| NDT:: | ET, UT, HT | OD Size:: | 12.7mm , 15.88mm, 19.05mm , 20mm, 25mm, 25.4mm, 31.75mm, 38.1mm, 44.45mm, 50.8mm |
| WT Size:: | 0.6mm To 14mm | High Light:: | U Bend Pipe, Seamless And Welded Pipe |

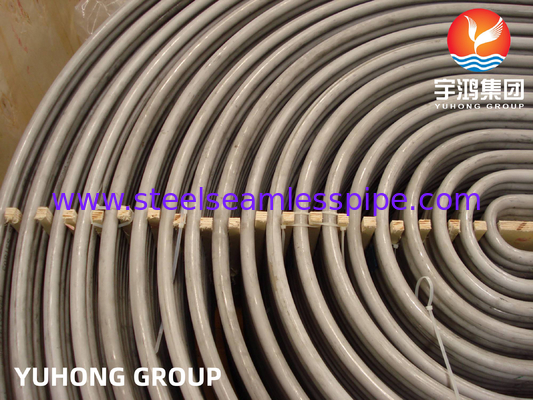

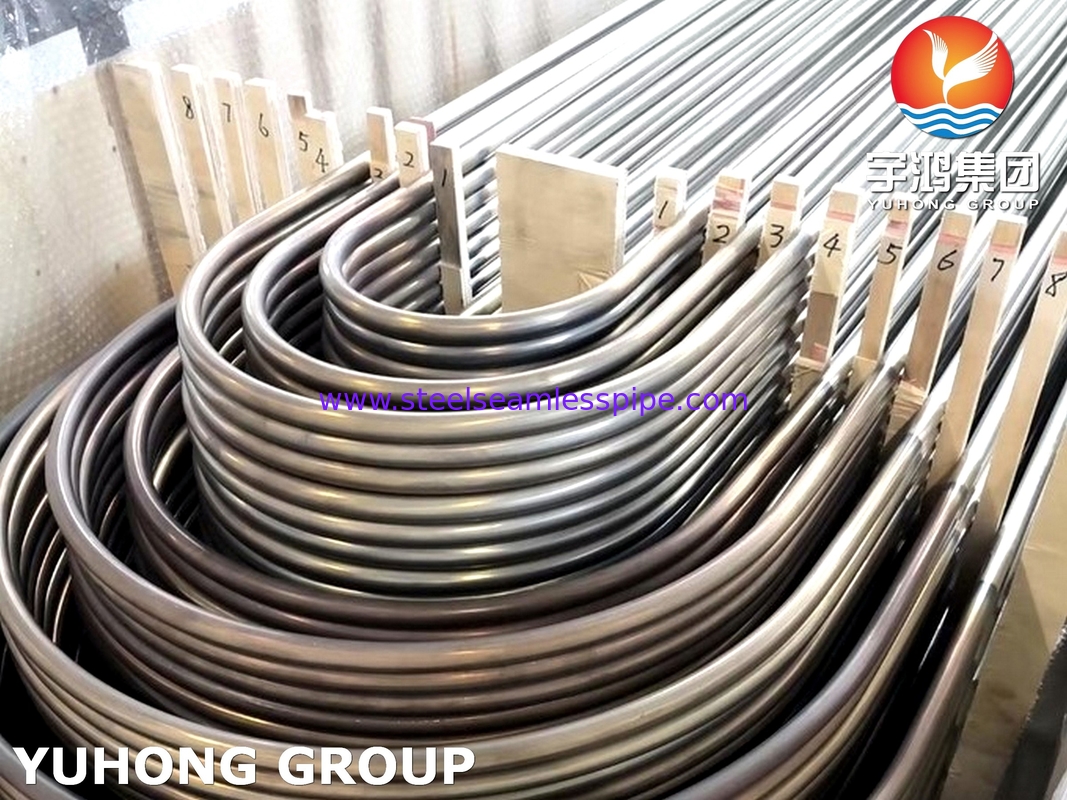

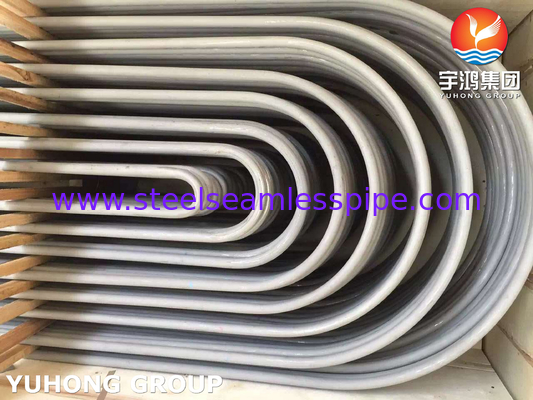

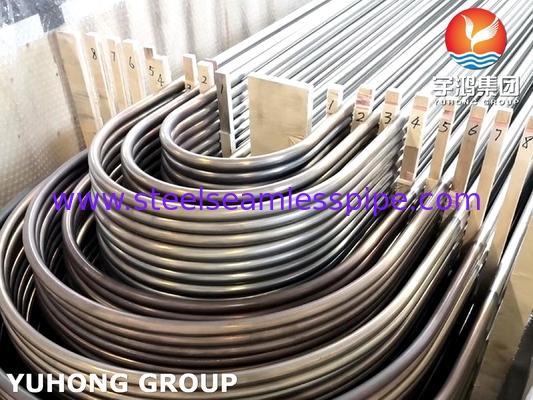

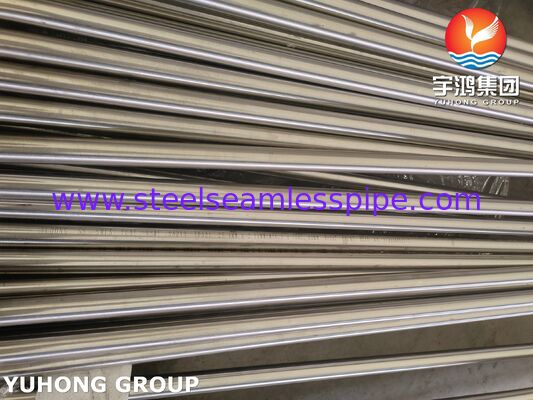

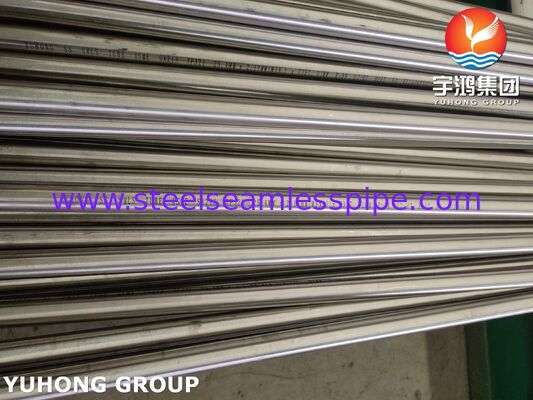

SS Seamless ASTM A213 / ASME SA213 TP321 / TP321H / TP347H Boiler U Bend Tube
YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 33 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Description
ASTM A213 TP321H Stainless Steel Seamless Pipe austenitic chromium-nickel stainless steel pipe suitable for corrosive or high-temperature service, or both, or for general applications.
Product features
Higher nickel content than 321, strong corrosion resistance, adding metal titanium, with better resistance to grain boundary corrosion and high temperature strength.
Hydraulic test
Carry out hydraulic pressure test on stainless steel seamless pipe one by one, and keep at least 5 seconds under the specified pressure value. The steel pipe shall not have water leakage or leakage, and the conventional supply water pressure pressure test is P=2SR/D(maximum 20MPa). 3, corrosion resistance:
Has a high resistance to intergranular corrosion, some organic acids and inorganic acids (especially in the oxidizing medium) has good corrosion resistance, the stainless steel seamless pipe are provided according to the standard or the corrosion method agreed by the two sides for corrosion resistance test, there should be no intergranular corrosion tendency. 4, process performance test:
Flattening test. Tensile test. Flaring test. Hardness test. Metallographic testing - Non-destructive testing (including eddy current testing and ultrasonic testing).
Product use
It is used for acid-resistant pipeline, large boiler superheater pipeline, heat exchanger pipeline, steam pipeline, petrochemical heat exchanger pipeline, etc. 321 is used for long-term operation in high temperature environment of 427-816°C. 321 is also commonly used in: boiler plants, heat exchanger plants, oil refineries, etc.
ASTM A213 Chemical Composition %
| Grade | C | Si | Mn | Cr | Ni | Mo | S | P | Fe |
| Max, % | Max, % | Max, % | % | % | % | Max, % | Max, % | % | |
| TP304 | 0,08 | 1,0 | 2 | 18 – 20 | 8 – 11 | – | 0,03 | 0,045 | Bal |
| TP304L | 0,035 | 1,0 | 2 | 18 – 20 | 8 – 12 | – | 0,03 | 0,045 | Bal |
| TP316 | 0,08 | 1,0 | 2 | 16 – 18 | 11 – 14 | 2 – 3 | 0,03 | 0,045 | Bal |
| TP316L | 0,035 | 1,0 | 2 | 16 – 18 | 10 – 14 | 2 – 3 | 0,03 | 0,045 | Bal |
| TP321 | 0,08 | 1,0 | 2 | 17 – 19 | 9 – 12 | – | 0,03 | 0,045 | Bal |
ASTM A213 Mechanical Properties And Solution Temperature (Min, Degree Centigrade).
| Grade | Tensile Strength | Yield Point | Elongation | Hardness(HRB) | Solution Temperature |
| Min, Mpa | Min, Mpa | Min, % | Max Rockwell | Min, OC, | |
| TP304 | 515 | 205 | 35 | 90 | 1040 |
| TP304L | 485 | 170 | 35 | 90 | 1040 |
| TP316 | 515 | 205 | 35 | 90 | 1040 |
| TP316L | 485 | 170 | 35 | 90 | 1040 |
| TP321 | 515 | 205 | 35 | 90 | 1040 |
SA213 321 SS Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
| SS 321 | 1.4541 | S32100 |
Apllication
