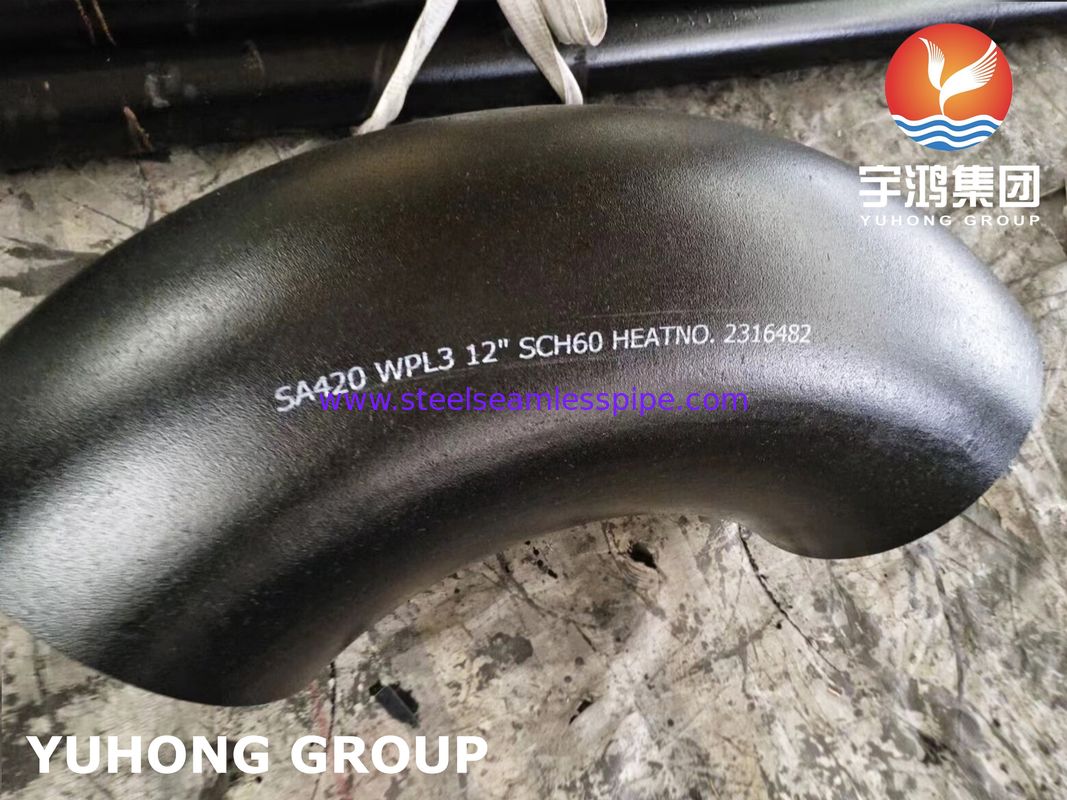

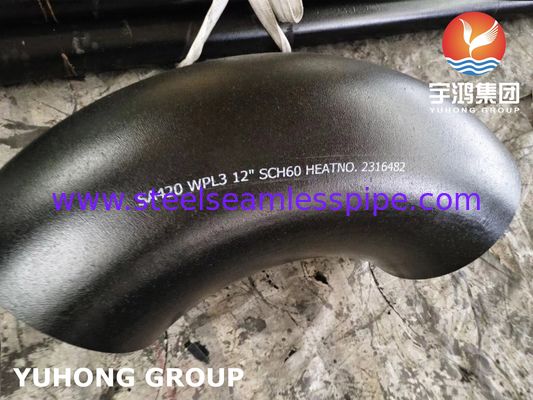

ASTM A420 WPL3 Low Temperature Long Radius Butt Weld Elbow Steel Fitting

ASTM A420 WPL3 Long Radius Elbow is a low-temperature alloy steel butt weld fitting designed for pressure piping systems where impact toughness at low temperatures is required. Manufactured in accordance with ASTM A420/A420M and dimensional requirements of ASME B16.9, the WPL3 elbow is available in long radius configurations and commonly supplied in 45° and 90° angles.

• During welding, repeated heating precipitates carbides, reducing corrosion resistance and mechanical properties
• Post-welding provides good hardness but susceptibility to cracking; requires preheating above 300°C and slow cooling at 700°C
• Prevents eye corrosion with welding current approximately 20% lower than carbon steel electrodes
• Designed for low-temperature service where impact toughness is critical

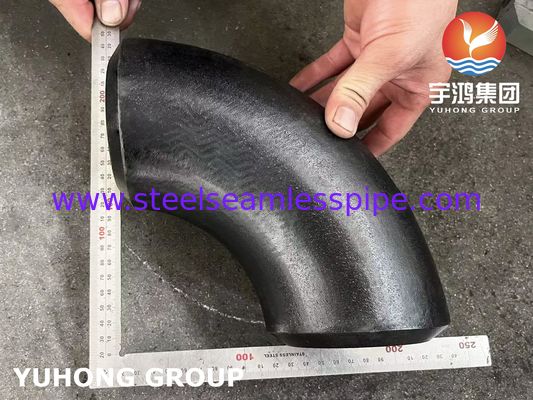

• Long radius configuration follows ASME B16.9 dimensional requirements

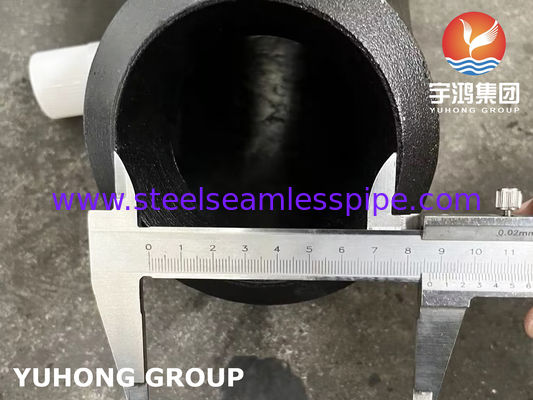

• Standardized dimensions for integration with compatible piping components

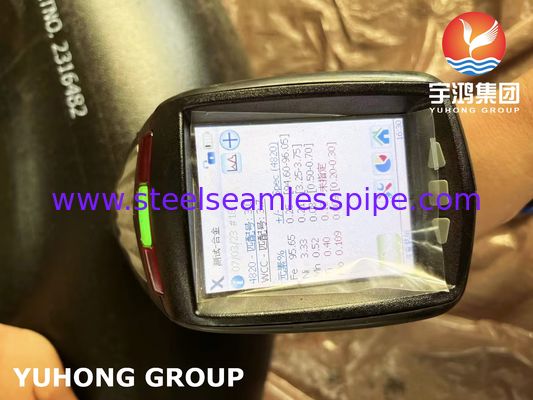

• Material traceability with certificates and inspection documentation available

1. Stamping process offers high production efficiency and easy automation
2. Material-saving and energy-efficient processing with minimal waste
3. Capable of producing parts with wide dimensional ranges and complex shapes
4. Cold deformation hardening enhances strength and stiffness

• Oil & Gas
• LNG and Cryogenic-Related Piping
• Petrochemical
• Gas Processing
• Low-Temperature Pressure Piping
• Process Piping
