ASTM B366 WPNCMC Fittings UNS N06625 / Inconel 625 Nickel Alloy Tee ASME B16.5 Fittings

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B366 WPNCMC Nickel Alloy Tee

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Ply-wooden Case /Iron Case
Delivery Time:	7days
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (350)

Stainless Steel Seamless Tube (347)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (173)

Fin Tube (752)

Heat Exchanger (43)

Heat Exchanger Tube (480)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (131)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (135)

Nickel Alloy Pipe (275)

Nickel Alloy Tube (110)

Copper Alloy Tube (258)

Alloy Steel Tube (225)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (163)

Steel Fitting (883)

Steel Flange (683)

Others (412)

Cladding Parts (9)

Detailed Product Description

Product Name:	Equal Tee	Dimension:	ASME B16.9, ANSI B16.9
Standard:	ASTM B366 / ASME SB366	Material Grade:	Incoloy 625, UNS N06625, 2.4856
OD:	1/2" To 48"	Thickness:	Sch5S To Sch.XXS
Products:	Equal Tee, Reducer Tee	NDT:	Penetrant Inspection , Ultrasonic Test , Hydraustatic Test
Application:	Heat Exchanger, Oil And Gas Industry, Energy Industries, Pulp And Paper Industry, Etc
High Light:	ASTM B366 Inconel 625 Nickel Alloy Fitting, Alloy 625 Buttweld Tee

Inconel 625 Nickel Alloy Fittings , ASTM B366 WPNCMC Fittings UNS N06625 Nickel Alloy Tee

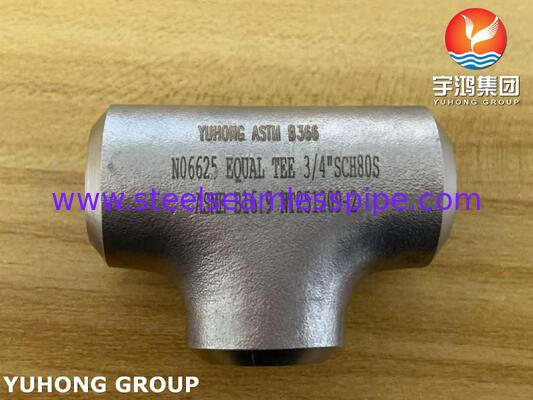

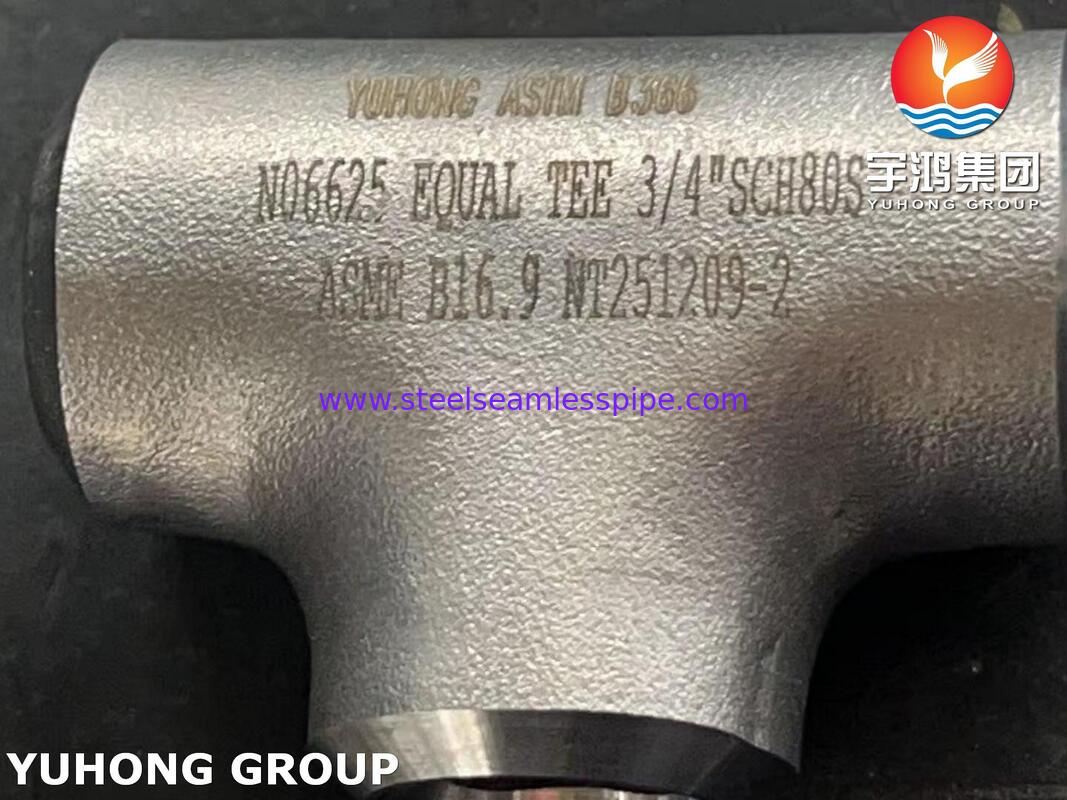

ASTM B366 UNS N06625 Equal Tee is a forged or wrought pipe fitting manufactured from Nickel Alloy Inconel 625. It features three openings (one inlet, two outlets, or vice versa) all of the same nominal diameter (Equal Tee), allowing a 90-degree branch connection from the main pipeline. The ends are manufactured with beveled ends (BW - Butt-Weld) for permanent, high-integrity installation via full-penetration welding directly to pipes of matching schedules.

Equivalent Grades of ASTM B366 UNS N06625 Tee Inconel 625 Nickel Alloy Equal Tee ASME B16.5 BW Steel Fitting

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb

Chemical Composition % of ASTM B366 UNS N06625 Tee Inconel 625 Nickel Alloy Equal Tee ASME B16.5 BW Steel Fitting

Cb+Ta

0.10

0.05

max

.015

max

.015

max

.50

max

20.0-23.0

58.0

min

8.0-10.0

1.0

max

0.4

max

0.4

max

5.0

max

3.15-4.15

Chemical Composition of ASTM B366 UNS N06625 Tee Inconel 625 Nickel Alloy Equal Tee ASME B16.5 BW Steel Fitting

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	-	5.0 max	58.0 min	20.0 - 23.0

Mechanical Properties of ASTM B366 UNS N06625 Tee Inconel 625 Nickel Alloy Equal Tee ASME B16.5 BW Steel Fitting

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %

Manufacturing Process (Per ASTM B366)

The fitting is produced from a seamless or welded pipe, or from a forged billet of UNS N06625.
It is hot-formed (or cold-formed) and then solution-annealed to restore corrosion resistance and ductility.
Post-manufacturing, it undergoes 100% hydrostatic testing or NDT (Non-Destructive Testing) as per code requirements (e.g., radiography or dye penetrant) to ensure no material defects exist after forming.
