| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASTM A335 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Materialrd: | Alloy Steel | Product: | SMLS Pipes |
|---|---|---|---|
| Standard: | ASTM A335 | Grade: | P5 P9 P11 P22 |
| Length: | Or As Required | Application: | Heat Exchanger / Boiler /Superheater Tube |
| Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | SMLS Alloy Steel Boiler Pipes,P22 Boiler Pipes,ASTM A335 SMLS Pipes |
||

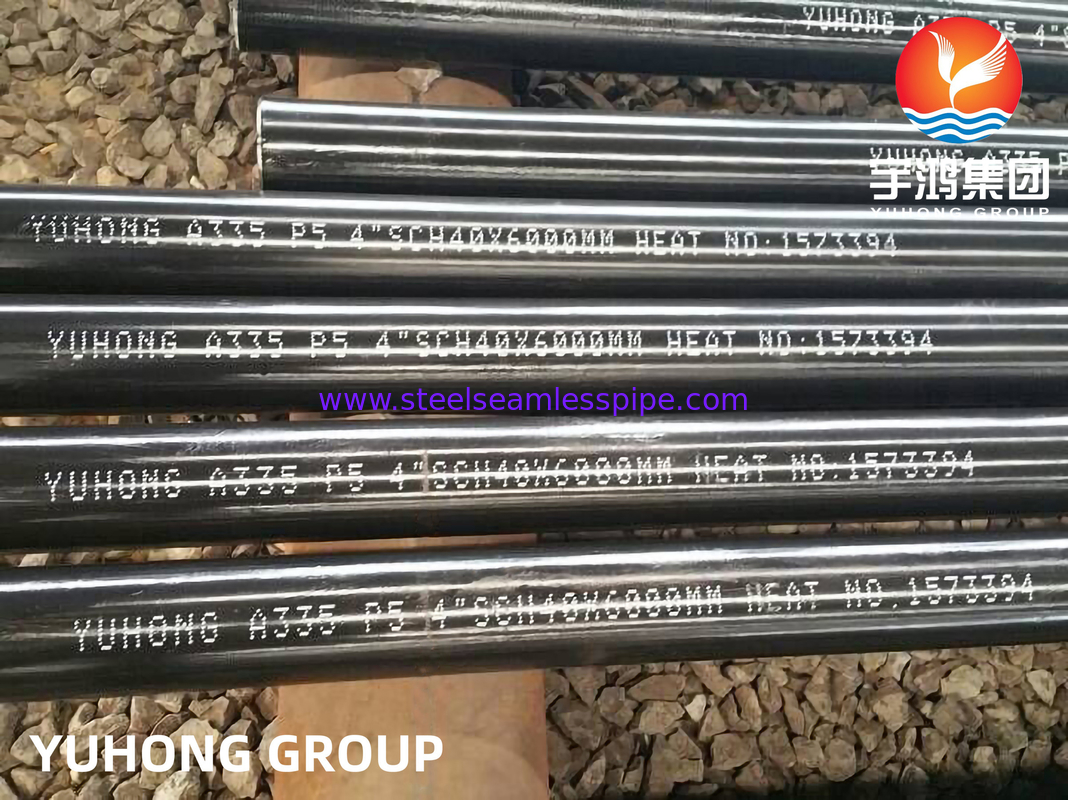

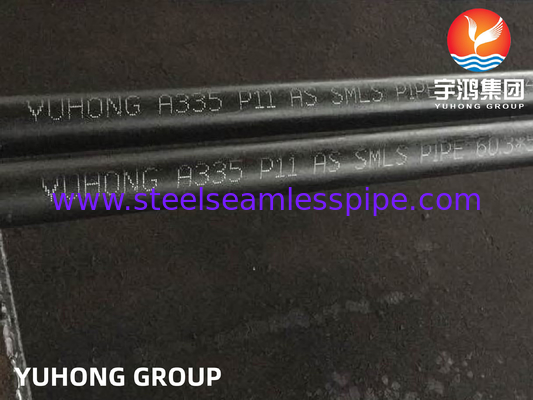

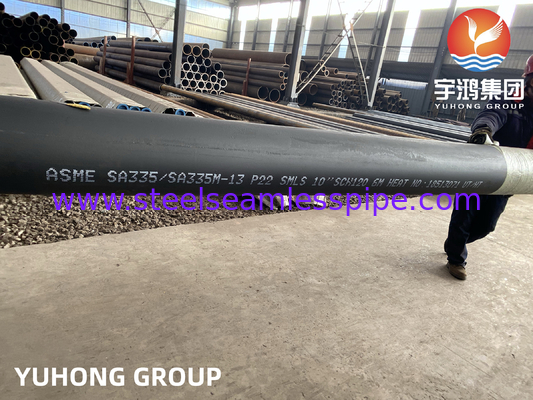

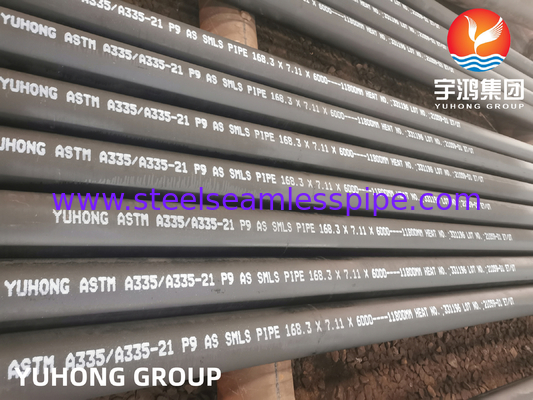

ASTM A335 P5 P9 P11 P22 Seamless Alloy Steel Boiler Pipes
YUHONG Group offers ASTM A335 P5 / P9 / P11 / P22 SMLS alloy steel pipes with high quality.
These alloy pipes are general used in heat exchangers, boilers, and other high-temperature applications, in industries such as power generation, chemical processing, and oil & gas production,piping line,etc.
ASTM A335 This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Selection will depend upon design, service conditions, mechanical properties, and high-temperature characteristics.
Thses alloy grades made up of carbon, manganese, phosphorus, silicon, sulfur with chromium and molybdenum,making A335 Seamless Pipes have good mechanical properties.And the material could also be heat treated by full or isothermal annealing, normalized and tempered conditions.
About the chemical composition,chromium improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures. And molybdenum increases the strength, elastic limit, resistance to wear, impact qualities and hardenability, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is also the most effective additive for increasing high temperature creep strength, or creep resistance,it also enhances the corrosion resistance of steel and inhibits pitting.
Specifications
| Standard | ASTM A335 | ||||
| Name of Material | SMLS pipes, Alloy steel | ||||
| Keywordas | Heat exchanger/Boiler pipes; Seamless steel pips; Superheater tubes; Temperature service applications-high,etc | ||||
| Size | OD:0.5 to 48in.and WT Min/Avg. :0.006 to 2.5 in. Or as required | ||||
| Length | max 70ft or as required | ||||
| Grade Equivalent | P5-K41545; P5b-K51545; P5c-K41245; P9-S50400; P11-K11597; P22-K21590 | ||||
| Quantity | Feet,metres,or number of lengths | ||||
| Heat Treat Type | Normalize and Tempher:1250°F [675°C] | ||||
Test Required
Tension Test / Flattening Test / Flaring Test / Hardness Test / Hydrostatic Test / Nondestructive Electric Test
Chemical Composition max%
| Grade | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Molybdenum |
| P5 | 0.15 | 0.3-0.6 | 0.025 | 0.025 | 0.5 | 4-6 | 0.45-0.65 |
| P5b | 0.15 | 0.3-0.6 | 0.025 | 0.025 | 1-2 | 4-6 | 0.45-0.65 |
| P5c | 0.12 | 0.3-0.6 | 0.025 | 0.025 | 0.5 | 4-6 | 0.45-0.65 |
| P9 | 0.15 | 0.3-0.6 | 0.025 | 0.025 | 0.25-1 | 8-10 | 0.45-0.65 |
| P11 | 0.05-0.15 | 0.3-0.6 | 0.025 | 0.025 | 0.5-1 | 1-1.5 | 0.44-0.65 |
| P22 | 0.05-0.15 | 0.3-0.6 | 0.025 | 0.025 | 0.5 | 1.9-2.6 | 0.87-1.13 |
Mechanical Property
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| P5/P9/P11/P22 | 205min | 415 min | 30 min |
Applications
Heat Exchangers/Boilers
Condensers/Superheaters
Pharmaceuticals
Power Generation
Petrochemicals Industries
Gas Processing
Marine Industries
Food Processing Industries
Chemical Equipment
Sea Water Equipment
Sour Service Application
Oil & Gas Industries
Nuclear reactors,etc
