Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B407 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Tons/Month |
| Standard: | ASTM B407 / B514 / B163 | Material Grade: | Alloy 800 (NO8800 , 1.4876), Allloy 800H (NO8810, 1.4958), Alloy 800HT( NO8811, 1.4959) , Alloy 8825 (NO8825, 2.4845), Alloy 926 (NO8926, 1.4529) |
|---|---|---|---|
| Type: | Incoloy Steel Seamless Tube , Incoloy Steel Welded Pipe | NDT: | Eddy Current Test , Hydrostatic Test, Ultrasonic Test , PT |
| Test Standard: | ASTM E426, ASTM E530 , ASTM A370 , ASTM A450 , ASTM A999 | Package: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Nickel Alloy Steel Seamless Tube,800AT Nickel Alloy Pipe,ASME SB829 Nickel Alloy Pipe |
||

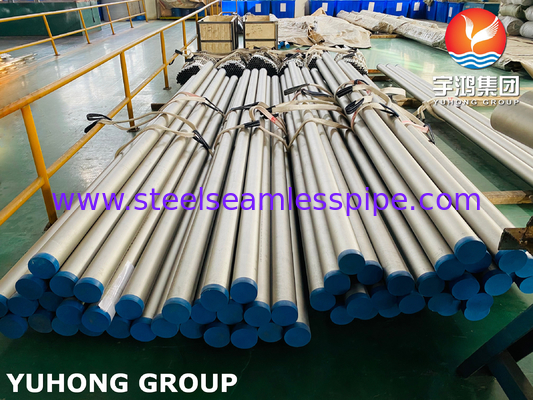

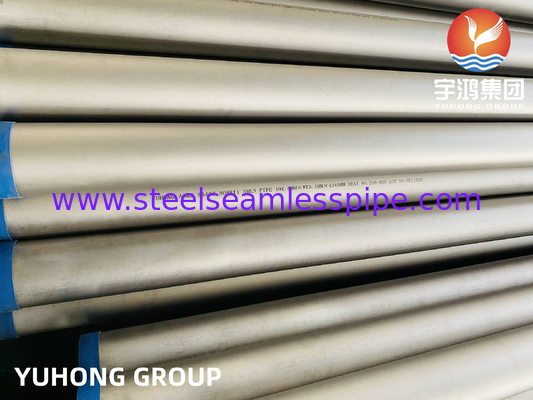

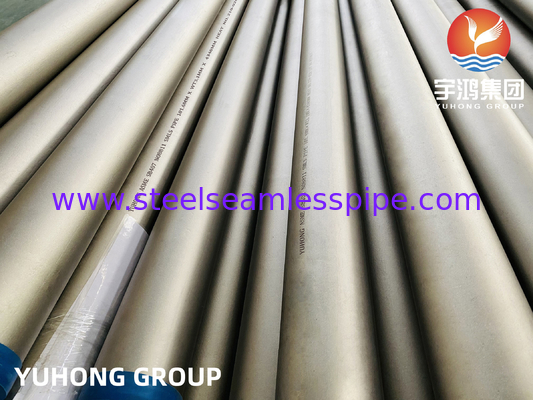

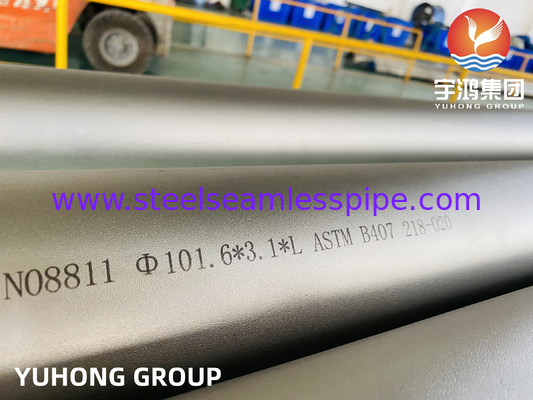

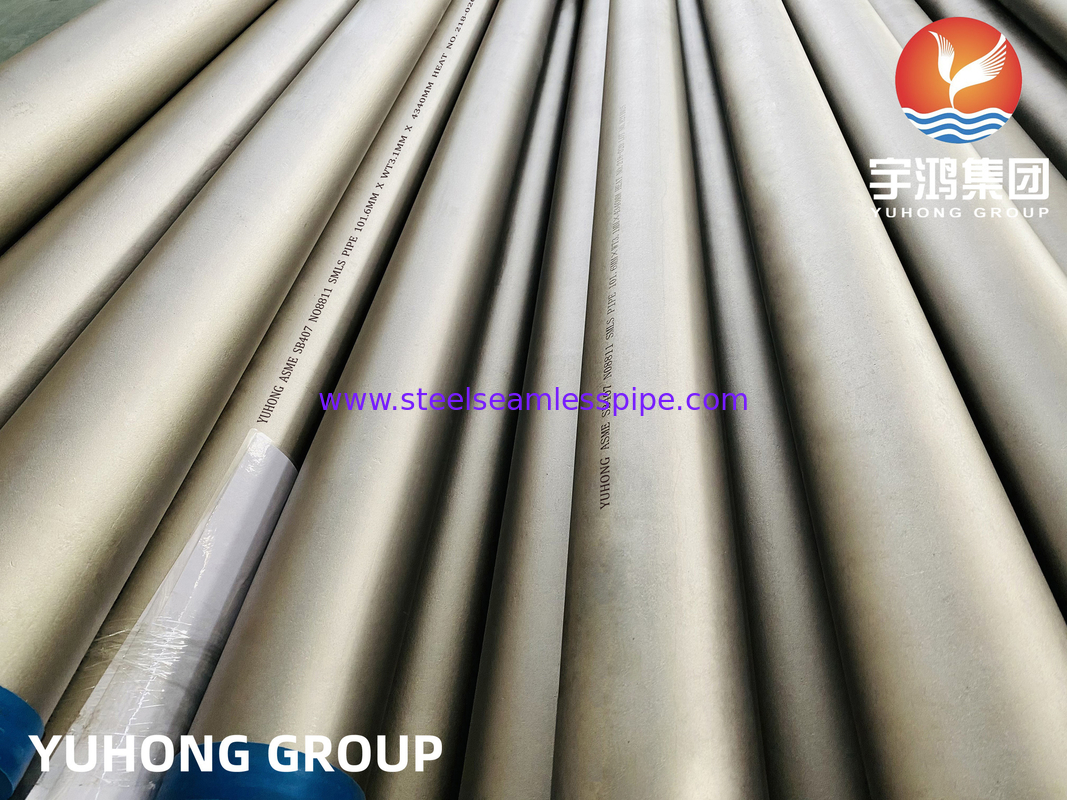

ASME SB163 / ASTM B407 / ASME SB829 Incoloy 800H / 800HT / 800AT Nickel Alloy Pipe
Incoloy 800 (UNS N08800, W. Nr. 1.4876) is a widely used material for manufacturing equipment that requires corrosion resistance, heat resistance, strength, and stability. It can be used at temperatures up to 1500 ° F (816 ° C). Alloy 800 has general corrosion resistance to many water-based media and can resist stress corrosion cracking due to its nickel content. At high temperatures, it has antioxidant, carburizing and sulfurization resistance, as well as fracture and creep resistance.
Application:
Steamer furnace, muffle furnace and heat treatment fixture and basket, vacuum furnace device, chlorination equipment with high working temperature of 1000 degrees Fahrenheit, titanium dioxide factory, steamer furnace, heater, distiller, bubble cap tower and condenser in fatty acid process, evaporator tube, tube plate and tablet plate in Sodium sulfide manufacturing process, rosin acid treatment equipment in pulp manufacturing, etc.
Physical properties: density: 8.1g/cm3, melting point: 1357-1385 ℃, magnetic properties: none
Heat treatment: Hold at 980-1150 ℃ for 2 hours, rapid water cooling.
Mechanical properties: Tensile strength: σ B ≥ 450Mpa, yield strength σ B ≥ 175Mpa: Elongation: δ≥ 30%, hardness; HB135-179
Processability
The processing characteristics of INCOLOY 800 alloy are similar to those of iron based alloys. This alloy is prone to work hardening during processing.
Welding
INCOLOY alloy 800 can be welded using matching filler metals through common welding techniques.
Molding
This alloy exhibits good ductility and can therefore be formed using conventional methods.
Hot working
INCOLOY Alloy 800 can be Hot working in the temperature range of 871-1232 ° C (1600-2250 ° F).
Cold working
Standard tools can be used for cold working of alloys.
Annealing
INCOLOY alloy 800 can be annealed after cold working. Annealing should be carried out at 982 ° C (1800 ° F) for 15 minutes, followed by air cooling of the alloy.
Chemical Composition:
| UNS Designation | N08800 | N08810 | N08811 |
| Incoloy Alloys | 800 | 800H | 800HT |
| Nickel | 30.0 - 35.0 | 30.0 - 35.0 | 30.0 - 35.0 |
| Chromium | 19.0 - 23.0 | 19.0 - 23.0 | 19.0 - 23.0 |
| Iron | 39.5 min. | 39.5 min | 39.5 min. |
| Carbon | 0.10 max | 0.05 - 0.10 | 0.06 - 0.10 |
| Aluminum | 0.15 - 0.60 | 0.15 - 0.60 | 0.25 - 0.60 |
| Titanium | 0.15 - 0.60 | 0.15 - 0.60 | 0.25 - 0.60 |
|
Aluminum + Titanium |
0.30 - 1.20 | 0.30 - 1.20 | 0.85 - 1.20 |
| ASTM Grain Size | Not Specified | 5 or Coarser | 5 or Coaser |
Application
Incoloy 800 is used in various applications involving exposure to corrosive environments and high temperatures. It is used for heat treatment equipment, such as baskets, pallets, and fixtures. In chemical and petrochemical processing, this alloy is used for heat exchangers and other pipeline systems in nitric acid media, especially when resistance to chloride stress corrosion cracking is required. In nuclear power plants, it is used for steam generator piping. This alloy is commonly used as a sheath for electric heating components in household appliances. In pulp production, the cooking liquid heater is usually made of alloy 800. In petroleum processing, alloys are used as heat exchangers for air cooling process flow.
