Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | B444 UNS625 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Standard: | B444 B163 | Material: | Monel/Inconel/Hastelloy/Nickel Alloy |
|---|---|---|---|
| Shape: | Plate/sheet/bar/pipe/wire | Thickness: | Seamless Pipe 1mm - 80mm Or Customized |
| Application: | Used In Chemical, Oil, Marine Industry |

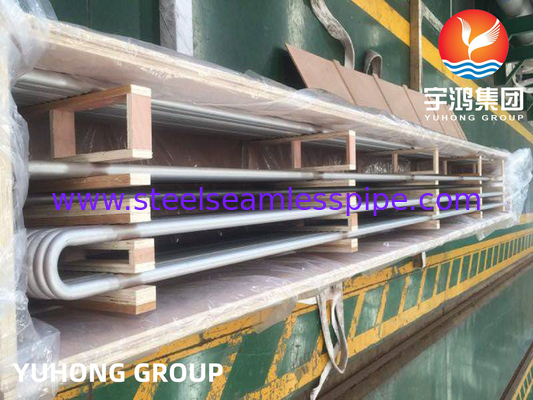

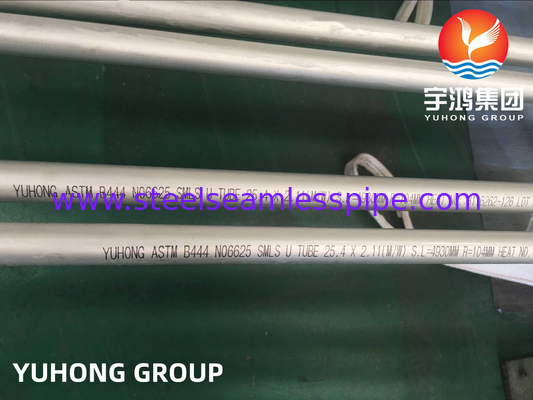

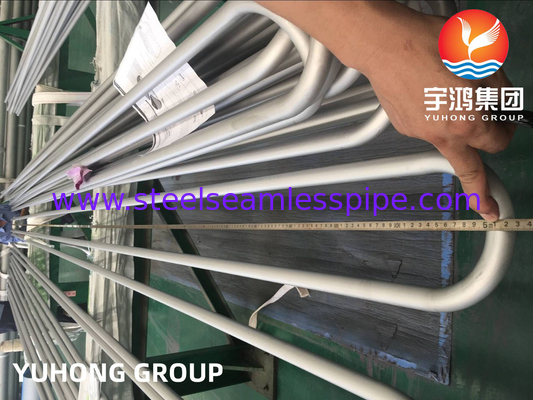

ASTM B444 Inconel 625 SMLS U BEND TUBE Nickel Alloy Pipe 25.4X2.11(M/W)*4900MM For Oil and Gas Marine industry
Grade Inconel 625 / UNS N06625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Alloy625 has good oxidation resistance at temperature up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
Advantage Products: (Boiler & Heat Exchanger & Condenser Tube)
ASTM A213(TP304,TP304L,TP304H,TP310S,TP316L,TP316Ti, TP317/L, TP321/H, TP347/H)
ASTM A249(TP304,TP304L,TP316L, TP321/H)
ASTM A789(S31803(2205), 32750(2507), S31254(254MO),S32304)
ASTM B163/B167/B444 for Nickel Alloy Steel Tube
ASTM B677 UNS NO8904(904L)
ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Other Standard: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
Chemical Composition of UNS N06625 / Inconel 625
| C | Mn | P | S | Si | Cr | Ni | Mo | Cu | Co | Cb Ta | Ti | Al | Fe | Nb | Other |
| 0.1 | .50 max | .015 max | .015 max | .50 max | 20.0 -23.0 | 58.0 min | 8.0 -10.0 | 1.0 max | 0.40 max | 0.40 max | 5.0 max | 3.15 -4.15 |
Mechanical Properties of ASTM B444 Inconel 625 Seamless Tubes
Typical room temperature Tensile Properties of Annealed Material (Representative Tensile Properties, bar, 1800° F anneal)
| Temp° F | Tensile (psi) | .2% Yield (psi) | Elongation in 2 “ (%) |
| 70 | 144,000 | 84,000 | 44 |
| 400 | 134,000 | 66,000 | 45 |
| 600 | 132,000 | 63,000 | 42.5 |
| 800 | 131,500 | 61,000 | 45 |
| 1000 | 130,000 | 60,500 | 48 |
| 1200 | 119,000 | 60,000 | 34 |
| 1400 | 78,000 | 58,500 | 59 |
| 1600 | 40,000 | 39,000 | 117 |
Specifications
| International Specifications | Sheet/Plate | Round Bar | Pipe | Tube | Fittings | Forgings |
| BS 3072, BS 3074, BS 3076, NA 21 DIN 17744, DIN 17750, DIN 17751, DIN 17752, DIN 17754. Werkstoff Nr. 2.4856 AFNOR NC 22 D Nb | ASME SB-443 AMS 5599 AMS 5869 | ASME SB-446 AMS 5666 AMS 5837 | ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-705 | ASME SB-444 ASME SB-829 ASME SB-751 ASME SB-704 AMS 5581 | ASME SB- 366 | ASME SB- 564 AMS 5666 |
| Alloy | Alloy 200(N02200), Alloy 201(N02201), Alloy 20(N08020), Alloy 28(N08028), Alloy 31(N08031), Alloy 36 (K93600), Alloy 904(N08904) |
| Hastelloy | Hastelloy C22(N06022), Hastelloy C276(N10276), Hastelloy C4(N06045), Hastelloy S(N06635), Hastelloy C2000(N06200), Hastelloy G-30(N06030), Hastelloy G-35(N06035), Hastelloy X(N06002), Hastelloy N(N10003), Hastelloy B(N10001), Hastelloy B-2(N10665), Hastelloy B-3(N10675) |
| Monel | Monel 400(N04400), Monel 401 (N04401), Monel 404 (N04404), Monel K500(N05500), |
| Inconel | Inconel 600(N06600), Inconel 601(N06601), Inconel 617(N06617), Inconel 625(N06625), Inconel 690(N06690), Inconel 718(N07718), Inconel X-750(N07750) |
| Incoloy | Incoloy 800(N08800), Incoloy 800H(N08810), Incoloy 800HT(N08811), Incoloy 825(N08825), Incoloy 925(N08925), Incoloy 926(N09926) |
| Others | 253MA(S30815), 254SMO(S31254), S32304, 17-4PH(S17400), 17-7PH(S17700), 15-7PH(S15700) |
Applications
