Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A213 T5 T9 T11 T12 T9 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Standard: | ASME A213 | Material: | Carbon Steel And Alloy Steel |
|---|---|---|---|
| Certificate: | API, BIS, KS, JIS, GS, ISO9001 | Application: | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe, Other |

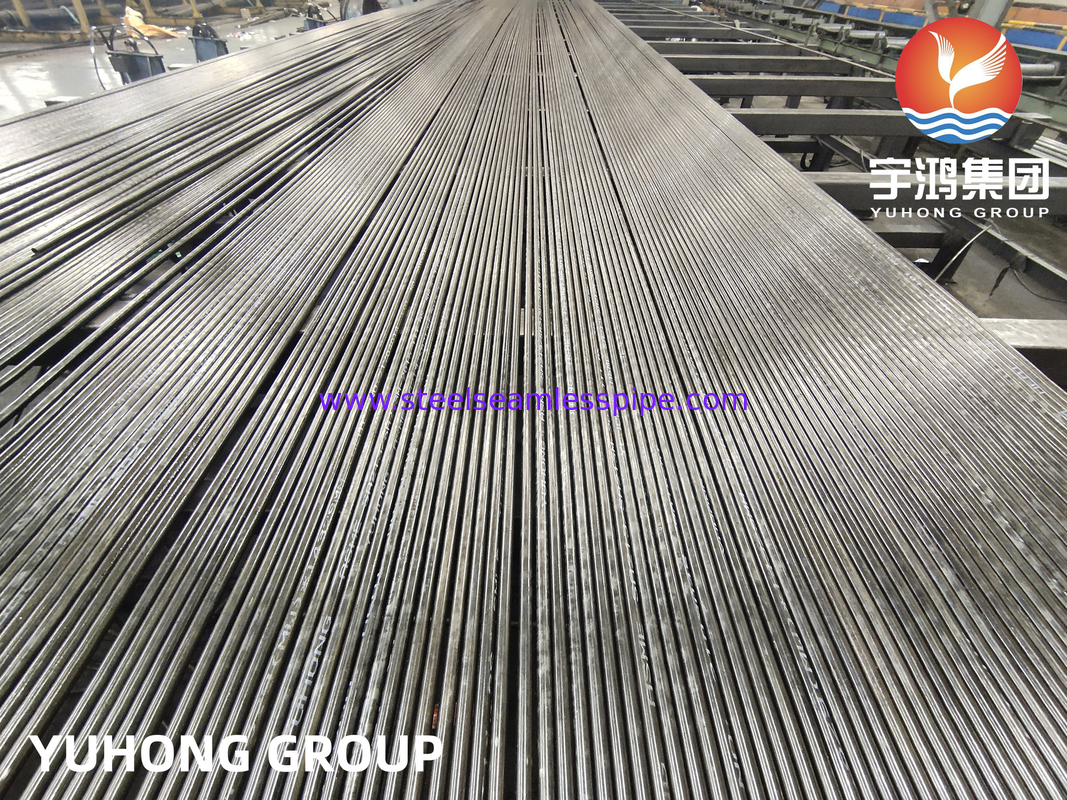

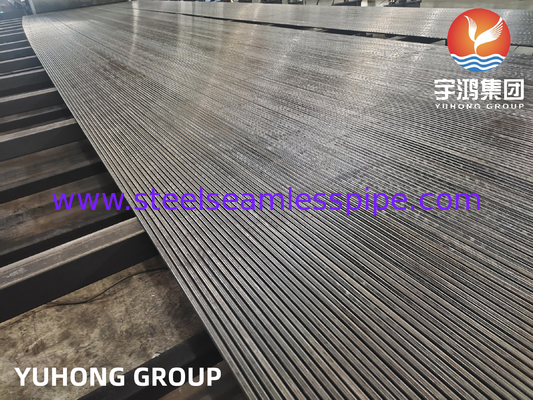

ASTM A213/SA213 T9, T11, T22, T91 Alloy Steel Seamless Tubing Heat Exchanger Tube Galvanized Round Pipe
SA213 T9 is a seamless ferritic alloy steel pipe for high temperature conditions. A213 is commonly referred to as Chrome-molybdenum tube because of the chemical composition of molybdenum (Mo) and chromium (Cr). Typical components of SA213 T9 tubing include 8% to 10% chromium, 0.3% to 0.6% molybdenum and small amounts of carbon, manganese, silicon, phosphorus, sulfur and other elements. Molybdenum increases the strength of steel as well as its elastic limit, wear resistance, impact mass, and hardenability. Molybdenum increases resistance to softening, inhibits grain growth, and makes chromium steel less embrittlement. Molybdenum is the most effective single additive for increasing creep strength at high temperature. It also enhances the corrosion resistance of the steel and inhibits pitting. Chromium (or chromium) is an essential component of stainless steel. Any steel with a chromium content of 12% or higher is considered stainless steel. Chromium is almost irreplaceable in terms of oxidation resistance at high temperatures. Chromium increases tensile, yield and hardness at room temperature. The composition of chrome-molybdenum steel tubes makes them ideal for power plants, refineries, petrochemical plants, and oilfield services, where fluids and gases are transported under extremely high temperatures and pressures.
ASTM A213 Grade T9 Alloy Steel Seamless Tubes Chemical Composition
| Element | C | Cr | Mn | Mo | P | S | Si |
| Grade T9 | 0.05 - 0.15 | 0.90 - 1.10 | 0.30 - 0.60 | 0.90 - 1.10 | 0.025 max | 0.025 max | 0.25 - 1.00 |
SA 213 Gr T9 Seamless Tubing Equivalent Material Grade
| Grade | UNS | Steel Number | Trade Name |
| T9 | S50400 | 1.7386 | 9Cr-1Mo |
Seamless Heat Exchange Alloy Steel T9 Tubes Mechanical properties
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 415 min | 205 min | 30 min | 179 max |
Application
· Textile machinery.
· Oil and gas industry
· Pipeline Systems
· Pharmaceutical processing industry
· Fluid piping.
· Modern architecture.
· Water waste projects.
Contact Person: Naty Shen
Tel: 008613738423992
Fax: 0086-574-88017980
