SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection

  • SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
  • SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
  • SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
  • SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Model Number: Tube Bundle
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 0~1000000 USD
Packaging Details: Export Standard
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C at sight
Supply Ability: 30SETS/MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Product Name: Tube Bundles Standard: ASTM, ASME
Material: Stainless Steel, Alloy Steel, Copper Alloy Size: Custom As Per Buyer's Drawing Requirements
Application: Tubular Heat Exchanger, Chemical Production ,Petroleum Industry, Energy Power, Pharmaceutical
Highlight:

Stainless Steel 316 Tube Bundles

,

Condenser Tank Tube Bundles

Stainless Steel Tube Bundles 316L Heat Exchanger Great heat transfer performance





What is tube bundle?




In a shell-and tube-exchanger the tube bundle is enclosed in a cylindrical shell, through which the second fluid flows.
A tube bundle is a set of tubes in a shell-and-tube heat exchanger.The tube plate at both ends of the tube bundle and the shell into one, simple structure, but only for hot and cold fluid temperature difference is not large, and the shell process does not require mechanical cleaning when the heat transfer operation. When the temperature difference is slightly larger and the shell pressure is not too high, can be installed in the shell with elastic compensation ring to reduce thermal stress.

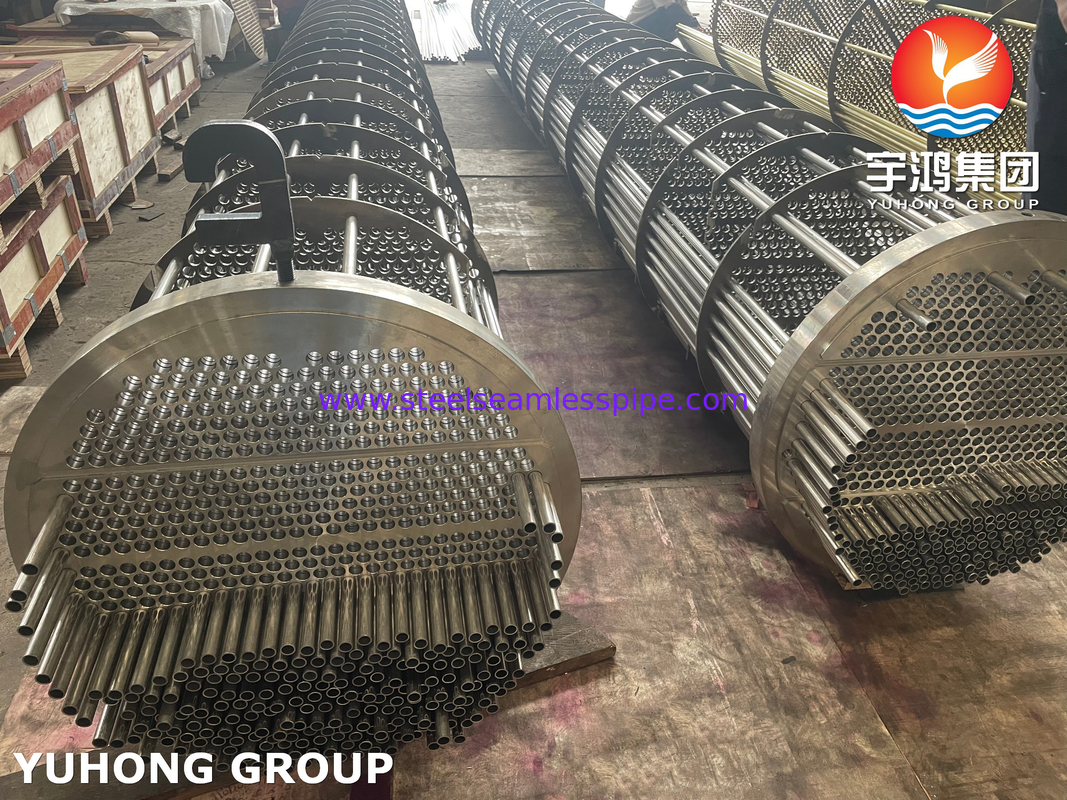

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection 0





Equivalent Grades of SS316



STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3





Chemical properties of SS316



Element SS 316 SS 316L
C 0.08 max 0.035 max
Mn 2.0 max 2.0 max
Si 1.0 max 1.0 max
P 0.045 max 0.045 max
S 0.030 max 0.030 max
Cr 16.00 - 18.00 16.00 - 18.00
Mo 2.00 - 3.00 2.00 - 3.00
Ni 11.00 - 14.00 10.00 - 14.00
Fe 67.845 min 68.89 min





Mechanical & Physical Properties of SS316



Element SS 316 SS 316L
Density 8.0 g/cm3 8.0 g/cm3
Melting Point 1400 °C (2550 °F) 1399 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515 Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205 Psi – 30000 , MPa – 205
Elongation 35 % 35 %







Applications



  • HVAC systems
  • Heat Exchanger
  • Oil and gas refining
  • chemical
  • Pharmaceutical manufacturing

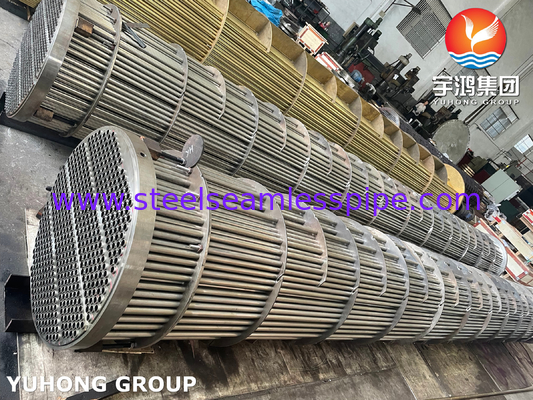

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection 1

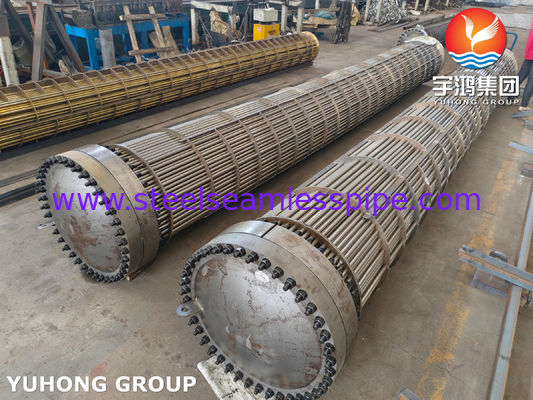

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection 2
