Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs/month |
| Product: | Tube Sheet Baffle Plates | Standard: | ATube Sheet Baffle Plates |
|---|---|---|---|
| Material: | Stainless Steel | Grade: | F316L |
| Use: | Heater Parts,Heat Exchanger, Condenser, Boiler | Size: | As Per Client's Drawing |
| Packing: | Standard Export Package | ||
| High Light: | F316L SS Tube Sheet,Heat Exchanger Baffle Plates,ASTM A182 Baffle Plates |
||

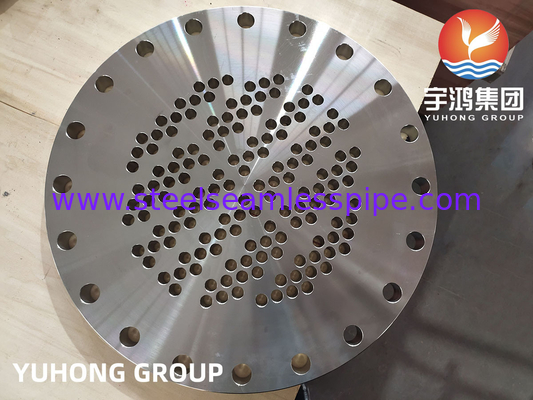

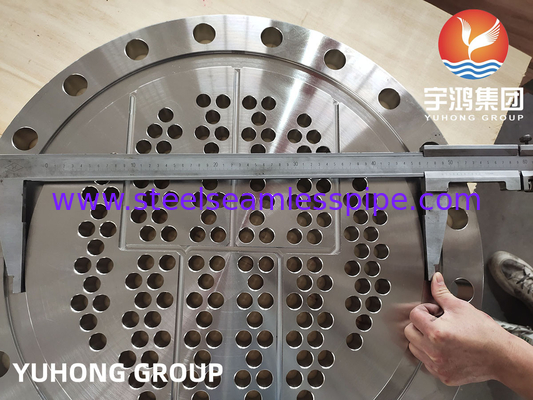

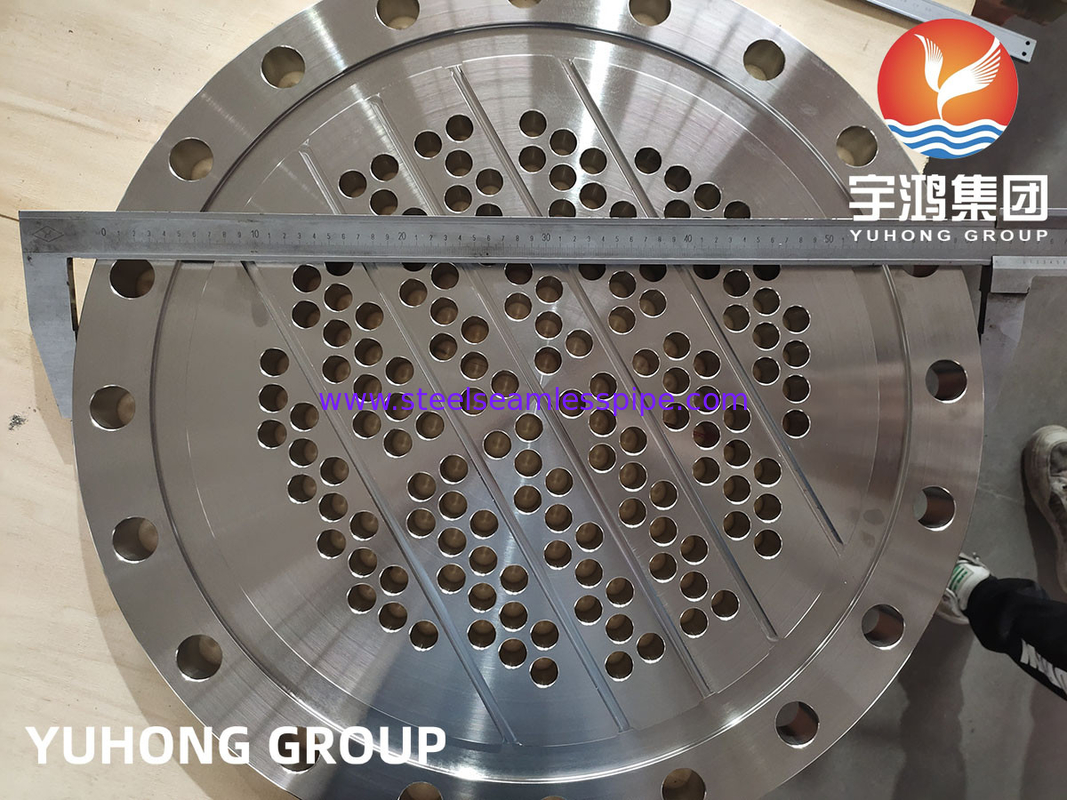

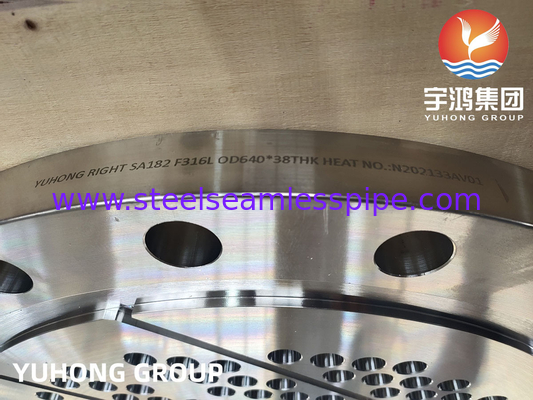

ASTM A182 F316L SS Tube Sheet Baffle Plates , Placa Para Caldera
YUHONG Group can do many projects: heat exchanger / boiler projects, marine projects, oil & gas projects etc.And we supply variety of tube sheets made by many materials, such as of carbon steel, stainless steel, copper steel and alloy steel!
This page is about ASTM A182 F316L SS tube sheet baffle plates for heat exchanger, for boiler, etc.
We are konwn that tube sheet is a plate that is used to support and hold the tubes in various heat exchangers, boilers, and other types of equipment where tubes are used. The tube sheet is typically made of a metal and has holes or openings drilled into it to allow the tubes to pass through. The tubes are then secured to the tube sheet by various methods such as welding, rolling, or expansion.
And the tube sheet helps to ensure proper alignment and sealing of the tubes, allowing for efficient heat transfer or fluid flow between the tubes and the surrounding medium.
ASTM A182 This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.
Chemical Composition (%)--MAX F316L
| C | Mn | P | S | Si | Ni | Cr | Mo | N |
| 0.03 | 2 | 0.045 | 0.03 | 1 | 10-15 | 16-18 | 2-3 | 0.1 |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation |
| F316L | ksi-70,MPa-485 | ksi-25,MPa-170 | 30% |
Application
Tube sheets are widely used in various industries for different applications. Some common applications of tube sheets include:
Heat exchangers: Tube sheets are an essential component of heat exchangers, which are used to transfer heat between two fluids.
Boilers: Tube sheets are used in boilers to separate the water and steam passages.
Condensers: Tube sheets are used in condensers, which are used to convert vapor or gas into a liquid state. T
Evaporators: Tube sheets are used in evaporators, which are used to convert liquid into a vapor state.
Shell and tube heat exchangers: Tube sheets are an integral part of shell and tube heat exchangers, which are used for transferring heat from one fluid to another.
Oil coolers: Tube sheets are used in oil coolers to transfer heat from hot oil to a cooling medium.
Overall, tube sheets play a crucial role in many applications where heat transfer, separation, and sealing are required. They provide support, structural integrity, and a sealing surface for tubes, ensuring efficient and reliable operation of various equipment and systems.
