Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA516 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs/month |
| Product: | Tube Sheet Baffle Plates | Standard: | ASME SA516 |
|---|---|---|---|
| Material: | Carbon Steel | Grade: | Gr. 70 |
| Use: | Heater Parts,Heat Exchanger, Condenser, Boiler | Size: | As Per Client's Drawing |
| Packing: | Standard Export Package | ||
| High Light: | Heat Exchanger Tubesheet Plates,Gr70 Heat Exchanger Tubesheet,ASME SA516 Heat Exchanger Parts |
||
ASME SA516 Gr. 70 Tubesheet Plates For Heat Exchanger , Placa Caldera
YUHONG Group can do many projects: heat exchanger / boiler projects, marine projects, oil & gas projects etc.And we supply variety of tube sheets made by many materials, such as of carbon steel, stainless steel, copper steel and alloy steel!
This page is about ASME SA516 Gr. 70 carbon steel tube sheet baffle plates for heat exchanger, for boiler, etc.

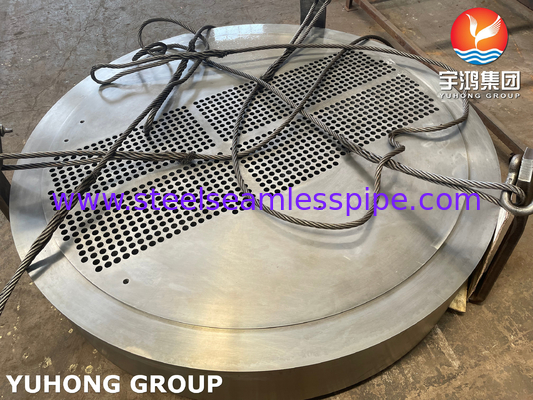

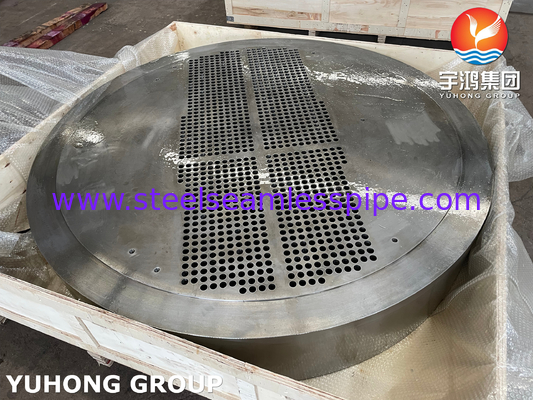

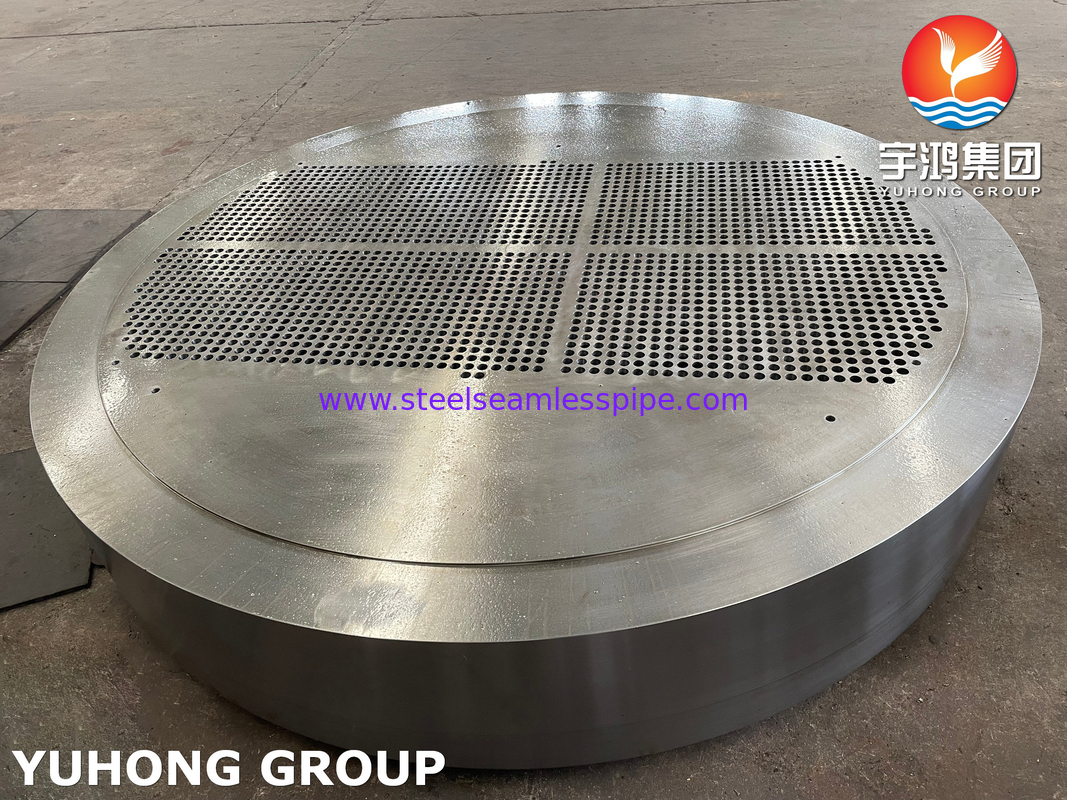

We are konwn that tube sheet is a plate that is used to support and hold the tubes in various heat exchangers, boilers, and other types of equipment where tubes are used. It is an important component in heat exchangers and boilers.The tube sheet is typically made of a metal and has holes or openings drilled into it to allow the tubes to pass through. The tubes are then secured to the tube sheet by various methods such as welding, rolling, or expansion.
ASME SA516 This specification covers carbon steel plates intended primarily for service in welded pressure vessels where improved notch toughness is important.
Plates under this specification are available in four grades having different strength levels as follows:
Grade 55 ; Grade 60 ; Grade 65 ; Grade 70
Chemical Composition (%) Grade 70
| Grade | C | Mn | P | S | Si |
| Heat analysis | 0.27-0.31 | 0.85-1.2 | 0.025 | 0.025 | 0.15-0.4 |
| Product analysis | 0.79-1.3 | 0.13-0.45 |
Mechanical Properties Grade 70 kis Mpa
| Tensile Strength,min | Yield Strength,min | Elongation in 8 in. [200 mm], min | Elongation in 2 in. [50 mm], min |
|
70–90 [485–620]
|
38 [260] | 17% | 21% |
Application
Tube sheets are widely used in various industries for different applications. Some common applications of tube sheets include:
Heat exchangers
Boilers
Condensers
Evaporators
Shell and tube heat exchangers
Oil coolers,etc
