Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B163 N08825 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Heat Exchanger Tube | Standard: | ASTM B163/ASME SB163 |
|---|---|---|---|
| Material: | Nickel Alloy Steel | Ends: | Plain Ends/ Beveled Ends |
| Type: | Seamless | ||
| High Light: | ASTM B163 Nickel Alloy Steel Tube,ASTM B163 UNS N08825 Alloy Steel Tube, Heat Exchanger Tube,Condenser Tube | ||

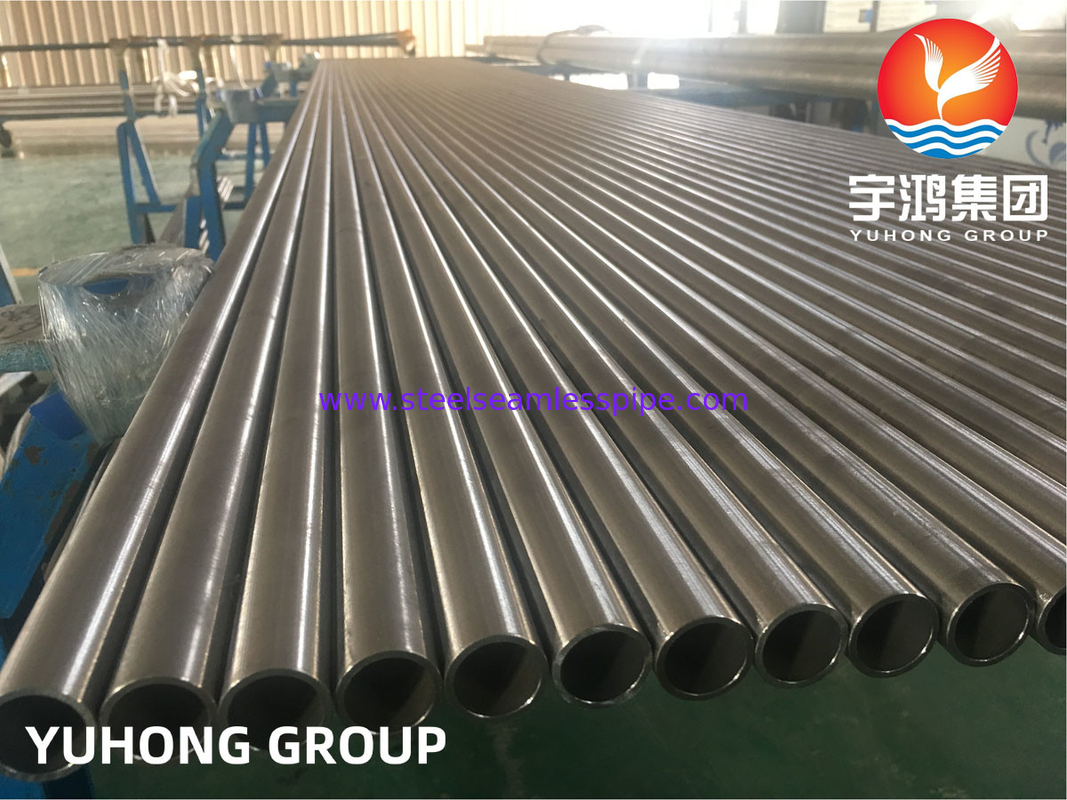

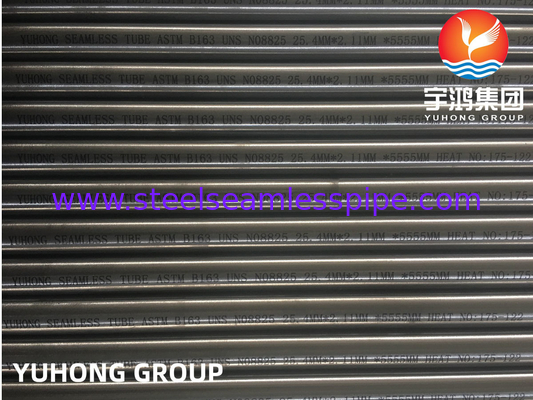

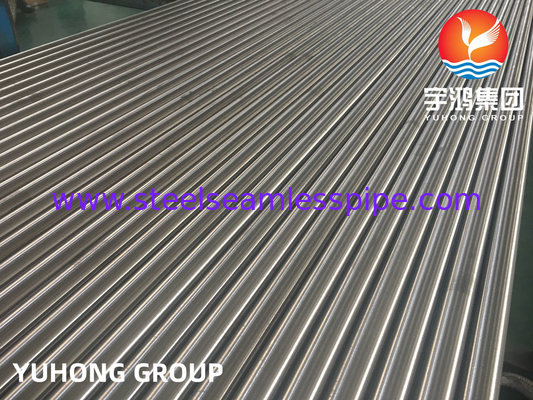

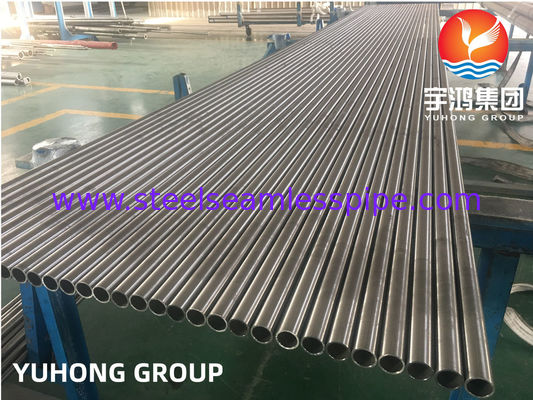

ASTM B163 UNS N08825 Nickel Alloy Steel Tube
Overview
ASTM B163 N08825 is a standard specification for seamless nickel and nickel alloy condenser and heat exchanger tubes. The specification covers tubes made from nickel-chromium-iron alloy (UNS N08825), which is also known as Incoloy 825.The ASTM B163 N08825 specification covers tubes in sizes ranging from 5/8 inch to 1 1/4 inch (15.9 mm to 31.8 mm) outside diameter, with wall thicknesses ranging from 0.035 inch to 0.065 inch (0.89 mm to 1.65 mm). The tubes are intended for use in condensers and heat exchangers for general corrosion-resisting and low or high-temperature service.
The tubes are required to be furnished in the annealed condition and shall be free of defects such as cracks, seams, laps, and other imperfections. The chemical composition, mechanical properties, and other requirements of the tubes are specified in the standard.Overall, ASTM B163 N08825 provides a standard specification for seamless nickel and nickel alloy tubes used in condensers and heat exchangers, ensuring that the tubes meet certain requirements for chemical composition, mechanical properties, and other characteristics.

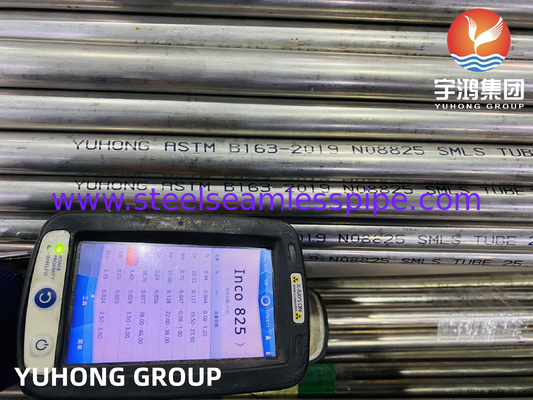

Chemical Composition of ASTM B163 UNS N08825
| Grade | Ni | Cu | Iron | Mn | C | Si | Ni | S | Cr | Ti | |
| N08825 | Min | 38.0 | 1.5 | 22.0 | 38.0 | 19.5 | 0.6 | ||||
| Max | 46.0 | 3.0 | 1.0 | 0.05 | 0.50 | 46.0 | 0.03 | 23.5 | 1.2 |
Mechanical Properies of ASTM B163 UNS N08825
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Rockwell C(HRC) |
| N08825 | ≥85(586) | ≥35(241) | ≥30 | ≥65 |
Uses&Application
1>.Chemical processing: ASTM B163 N08825 tubes are used in chemical processing industries for handling corrosive chemicals such as sulfuric acid, hydrochloric acid, and phosphoric acid.
2>.Oil and gas industry: ASTM B163 N08825 tubes are used in the oil and gas industry for applications such as heat exchangers, condensers, and piping systems that require resistance to corrosion and high-temperature environments.
3>.Power generation: ASTM B163 N08825 tubes are used in power generation plants for applications such as heat exchangers, condensers, and piping systems that require resistance to corrosion and high-temperature environments.
4>.Marine industry: ASTM B163 N08825 tubes are used in the marine industry for applications such as seawater cooling systems, heat exchangers, and piping systems that require resistance to corrosion and high-temperature environments.
