Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B163 N04400 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Heat Exchanger Tube | Standard: | ASTM B163/ASME SB163 |
|---|---|---|---|
| Material: | Nickel Alloy Steel | Ends: | Plain Ends/ Beveled Ends |
| Type: | Seamless | ||
| High Light: | Seamless Nickel Alloy Steel Tube,Heat Exchanger Nickel Alloy Seamless Tube,ASTM B163 Alloy Steel Seamless Tubes |
||

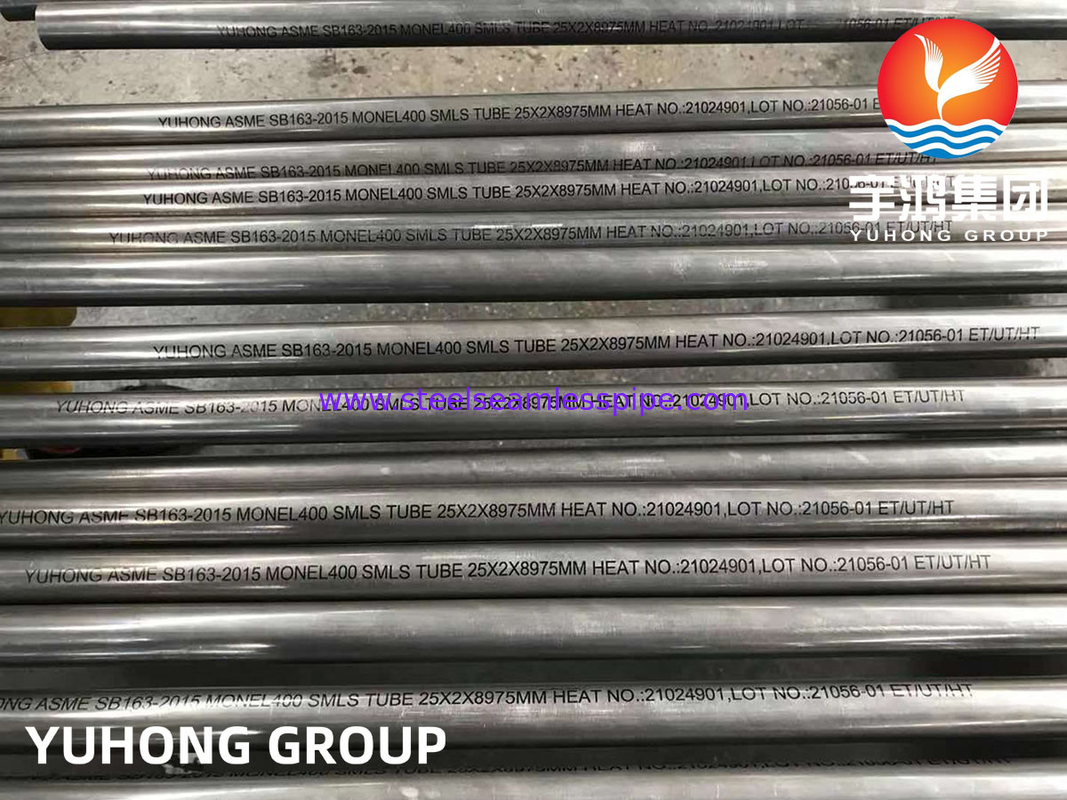

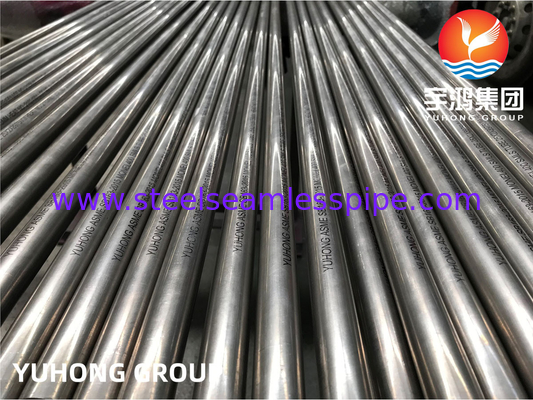

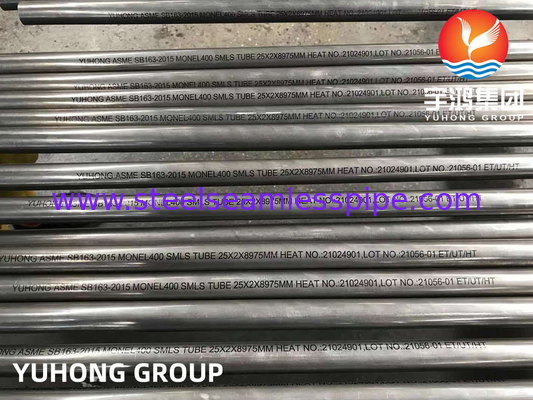

ASTM B163 UNS N04400 Nickel Alloy Steel Tube
Overview
ASTM B163 N04400 is a standard specification for seamless nickel and nickel alloy condenser and heat-exchanger tubes. This specification covers tubes made from nickel-copper alloy UNS N04400, also known as Monel 400.The ASTM B163 N04400 specification covers tubes in sizes ranging from 1/8 inch to 3 inches (3.2 to 76.2 mm) in outside diameter and from 0.015 inch to 0.148 inch (0.38 to 3.76 mm) in wall thickness. The tubes are intended for use in condensers and heat exchangers for general corrosion-resisting and low or high-temperature service.
The chemical composition of the material is specified in the standard, which includes the percentage of elements such as nickel, copper, iron, manganese, carbon, silicon, and sulfur. The mechanical properties of the tubes, such as tensile strength, yield strength, and elongation, are also specified in the standard.The ASTM B163 N04400 specification also includes requirements for the manufacturing process, heat treatment, and testing of the tubes. The tests include hydrostatic or nondestructive electric tests, flaring tests, flattening tests, and hardness tests.Overall, the ASTM B163 N04400 specification provides a standard for the manufacture and testing of seamless nickel and nickel alloy condenser and heat-exchanger tubes made from UNS N04400, ensuring that the tubes meet the required chemical composition and mechanical properties for their intended use.
Chemical Composition of ASTM B163 UNS N04400
| Grade | Ni | Cu | Iron | Mn | C | Si | S | |
| N04400 | Min | 63.0 | 28.0 | |||||
| Max | 34.0 | 2.5 | 2.0 | 0.3 | 0.5 | 0.024 |
Mechanical Properies of ASTM B163 UNS N04400
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| N04400 | ≥75(483) | ≥28(193) | ≥35 |
Uses&Application
1>.Heat exchangers: ASTM B163 N04400 tubes are widely used in heat exchangers for their excellent resistance to corrosion by seawater and other corrosive environments. They are also used in chemical processing plants, where they can withstand exposure to a wide range of chemicals.
2>.Condensers: ASTM B163 N04400 tubes are used in condensers for their high thermal conductivity and resistance to corrosion. They are commonly used in power plants, refrigeration systems, and other industrial applications.
3>.Marine applications: ASTM B163 N04400 tubes are commonly used in marine applications due to their excellent resistance to seawater corrosion. They are used in seawater cooling systems, piping systems, and other marine equipment.
4>.Oil and gas industry: ASTM B163 N04400 tubes are used in the oil and gas industry for their resistance to corrosion and erosion. They are used in heat exchangers, condensers, and other equipment in offshore platforms and onshore facilities.
