Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A554, TP304 , TP316L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLYWOOD CASE,BUNDLE,PALLET |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| MATERIAL: | TP304,TP316L | POLISH: | 180G,600G |
|---|---|---|---|
| SURAFACE: | MIRROR,HAIRLINE | TYPE: | Round,Square,Rectangular |
| APPLICATION: | Decoration , Bath Room,handrail | STANDARD: | ASTM A554 |

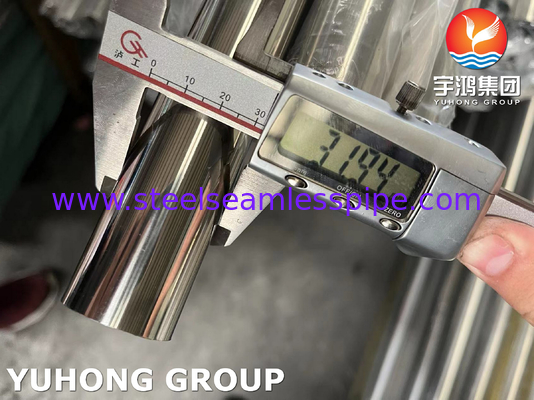

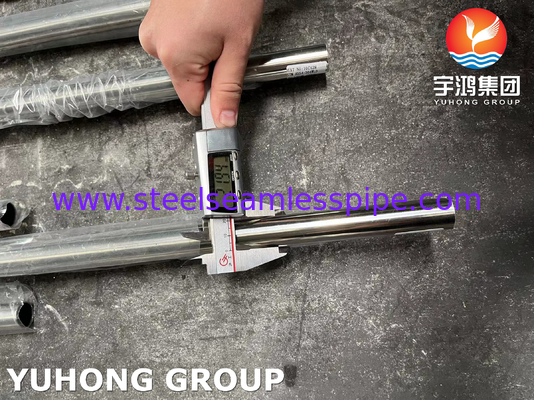

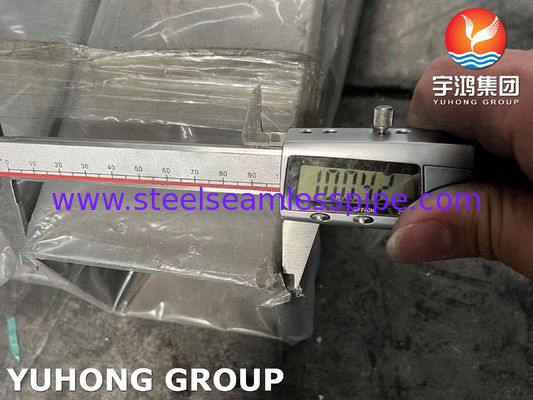

STAINLESS STEEL WELDED TUBE ASTM A554 TP304,HAIR LINE SURFACE 180G 600G
A 554. Standard Specification For. Welded Stainless Steel Mechanical Tubing.
1) Round pipes - Outside diameter(mm) :
8,9.5,11,12, 12.7,14.5, 15.9, 17,18,19,20,22,23,28,29, 31.8 ,35,36,38,45, 47,48,50.8,60,63,76,88.9,102,114,133,141,159,219
2)Square pipes - Outside dimensions(mm) :
10x10,12x12,15x15,17x17,18x18,19x19,20x20,22x22,23x23,24x24,25x25,28x28,30x30,36x36,38x38,40x40,48x48,50x50,60x60,
70x70,80x80
3)Rectangular pipes - Outside dimensions(mm) :
20x10,23x11,24x12,25x13,28x13,30x15,34x22,36x23,37x24,38x25,40x20,48x23,50x15,50x25,60x15,60x30,73x43,75x45,95x45
4) Wall thickness: 0.3 - 3.0mm
5) Length: 6m (or according to customers' requests)
6) Polishing: 600#,400#, 320#, 240#, 180#.etc.
7) Tolerance:
a) Outer diameter: ±0.15mm
b) Thickness: ±10% of wall thickness
c) Length: ±4.5mm - 0mm
8) Other size can be manufactured according to requirements
Overview
1.1 This specification covers welded stainless steel tubing for mechanical applications where appearance, mechanical properties, or corrosion resistance is needed.
1.2 This specification covers as-welded or cold-reduced mechanical tubing in sizes to 16 in. (406.4 mm) outside diameter, inclusive (for round tubing) and in wall thicknesses 0.020 in. (0.51 mm) and over.
1.3 Tubes shall be furnished in one of the following shapes as specified by the purchaser: round, square, rectangular, or special.
1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
1.5 Values stated in inch-pound units, in accordance with the specifications, are to be regarded as the standard.
Lead time
| Quantity (kilograms) | 1 - 1000 | 1001 - 5000 | 5001 - 10000 | > 10000 |
| Lead time (days) | 7 | 10 | 15 | To be negotiated |
