Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Stainless Steel AISI 431 Shaft |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | PALLET,PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| STANDARD: | ASTM / ASME SA A291/A291M, A470/A470M, A920/A920M, ASTM A503/A503M | MATERIAL: | Stainless Steel 202,303,304,304L,316L,431, Etc. |
|---|---|---|---|
| PRODUCT NAME: | STAINLESS STEEL SHAFT | OD: | 150mm To 350mm, As The Drawing Request |
| High Light: | Axis Drive Transmission Steel Shaft,Industrial 431 Steel Shafting |
||

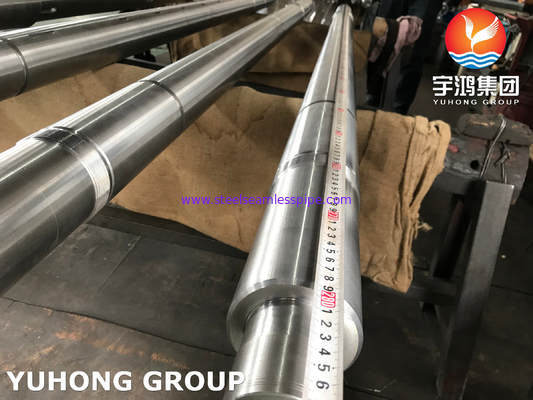

Steel Shafting Axis Drive Transmission Shaft For Indust AISI 431
431 is a high chromium-low nickel high hardenability Martensitic stainless steel with high strength and good corrosion resistance, as generally supplied hardened and tempered in the tensile range 850 - 1000 Mpa (condition T) Brinell range 248 - 302.
Shafting production processes:
Cylindrical grinding
CNC horizontal,vertical and 5 axis Milling
CNC turning
Chemical Composition
| Grade | C | Mn | P | S | Si | Cr | Ni |
| 431 | 0.12-0.22 | 1.50 max | 0.040 max | 0.030 max | 1.00 max |
15.0- 17.0 |
1.50- 2.50 |
stainless steel 431 equivalent & Specification Comparison
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| SS431 | S43100 | 431S29 | 57 | 1.4057 | X17CrNi16-2 | 2321 | SUS 431 |
Heat treatment
Condition: Annealed, Quenched+tempered
Hardness: 600(QT800), 700(QT900)
Tensile strength: 800-950(QT800), 900-1050(QT900)
Elongation after fracture:12％-14％
Applications
Based on our customers’ individual project specifications, we can machine a variety of long shafts. Including:Pump Shafts,Drive Shafts,Axle Shafts,Spline Shafts
We machine long shafts for the following industries:
Regardless of your industry or application, we can provide the long shaft machining services you need to help optimize both efficiency and cost-effectiveness.
