Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | SA249 TP316L |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | SA249 | Material: | 316L |
|---|---|---|---|
| Application: | Construction,Decoration,seawater Environment,oil And Gas,petroleum | Type: | Welded |
| Thickness: | 0.4-30mm,0.5-100mm | Length: | 6 Meters Or According To Customer's Request |
| High Light: | Stainless Steel Welded Tube 0.4mm,TP316L SS Welded Tube,Petroleum SS Welded Tube |
||

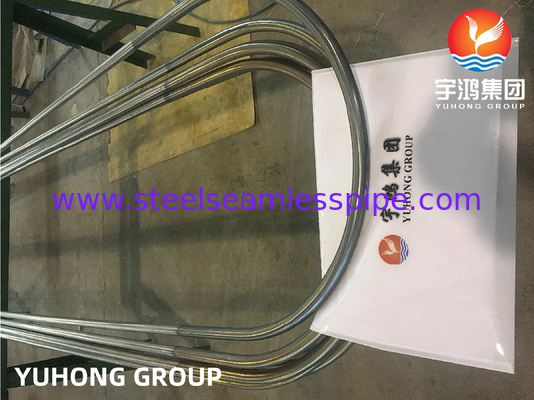

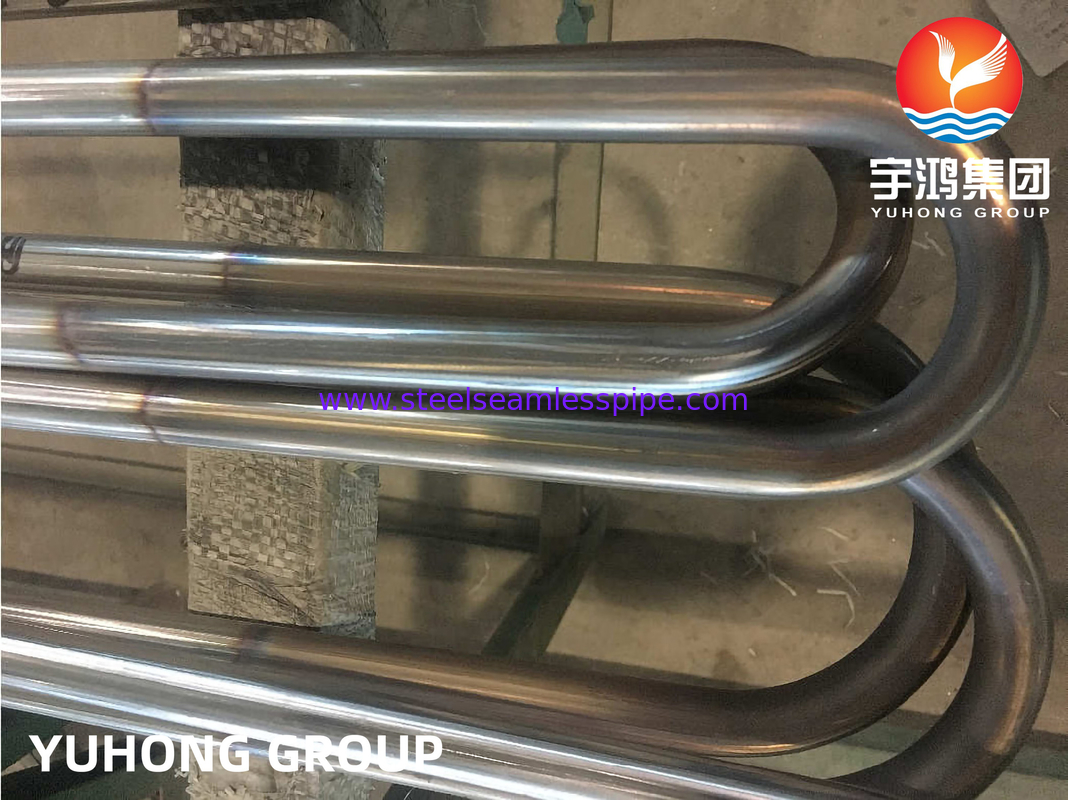

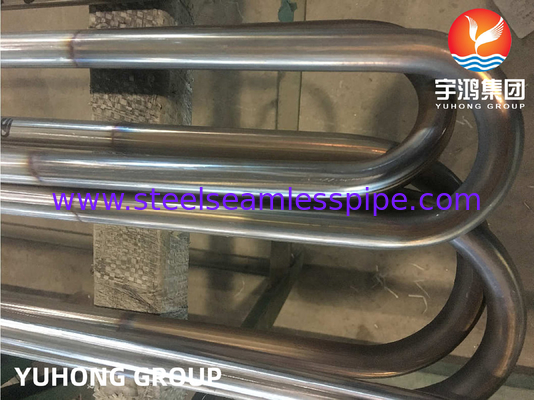

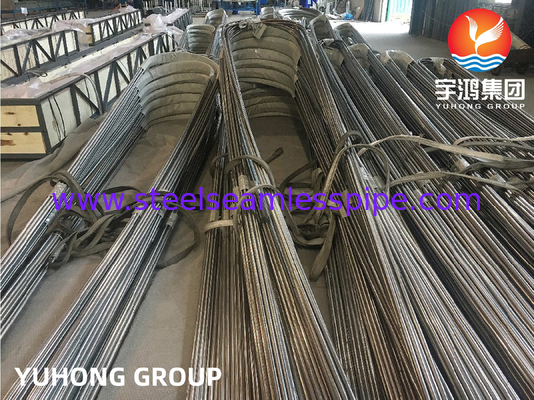

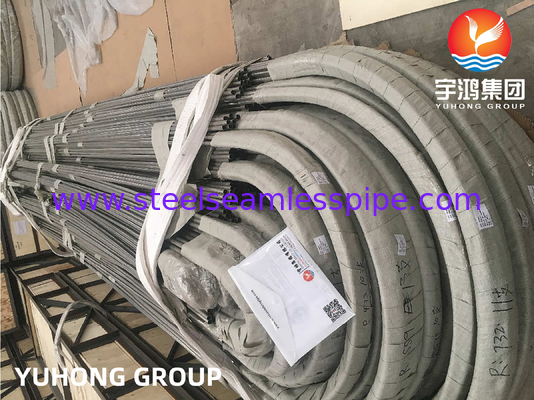

SA249 TP316L SS WELDED TUBE
ASTM A249 SS 316L Tube Chemical Properties
| Grade | C | Mn | Si | P | S | |
| 316L | Min | – | – | – | – | – |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 |
Mechanical Properties Of ASTM A249 TP316L Stainless Steel Tube
| Grade | Tensile Str | Yield Str | Elong | Hardness | |
| (MPa) min | 0.2% Proof | (% in 50mm) min | |||
| (MPa) min | Rockwell B (HR B) max | Brinell (HB) max | |||
| 316L | 485 | 170 | 40 | 95 | 217 |
Mechanical Properties Of ASTM A249 TP316L Stainless Steel Tube
| Grade | UNS No | Old British | Euronorm | ||
| BS | En | No | Name | ||
| 316L | S31603 | 316S11 | – | 1.4404 | X2CrNiMo17-12-2 |
SA249 TP316L SS welded tube can be used in various applications, including:
1. Heat exchangers: The high corrosion resistance of TP316L stainless steel makes it suitable for use in heat exchangers, where it can handle high temperatures and corrosive fluids.
2. Pharmaceutical industry: TP316L stainless steel is commonly used in the pharmaceutical industry due to its excellent corrosion resistance and ability to withstand high temperatures and sterilization processes.
3. Food processing: The sanitary properties of TP316L stainless steel make it ideal for use in the food processing industry, where it is used in equipment such as tanks, piping, and fittings.
4. Petrochemical industry: TP316L stainless steel is commonly used in the petrochemical industry for applications such as piping, pressure vessels, and storage tanks, where it can handle corrosive environments and high temperatures.
5. Automotive industry: TP316L stainless steel welded tubes can be used in automotive applications, such as exhaust systems, where corrosion resistance and high temperature resistance are required.
6. Oil and gas industry: TP316L stainless steel welded tubes are used in the oil and gas industry for applications such as pipelines, offshore platforms, and refineries, where they can handle corrosive environments and high pressures.
7. Water treatment: TP316L stainless steel welded tubes are used in water treatment plants for applications such as piping and tanks, where corrosion resistance and durability are essential.
