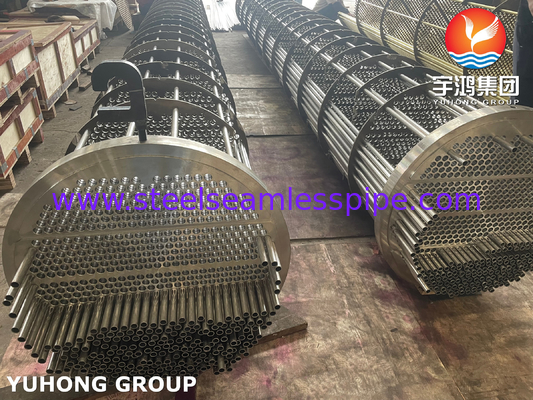

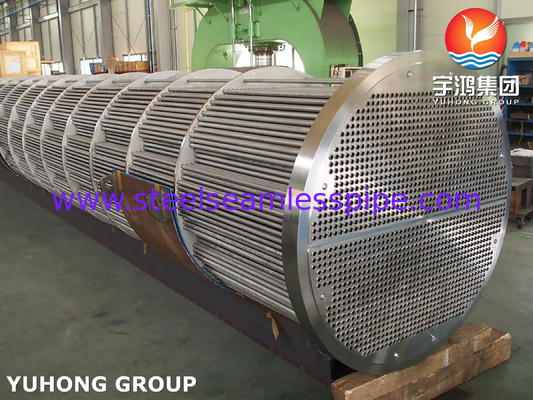

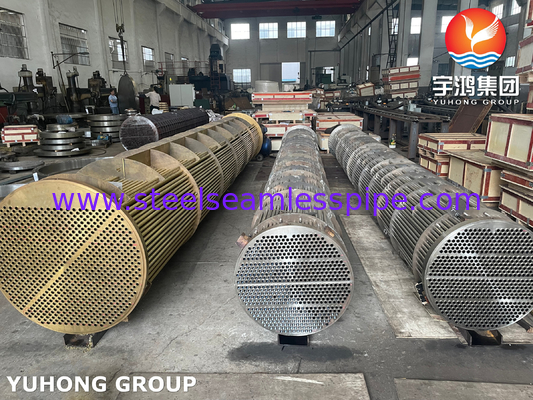

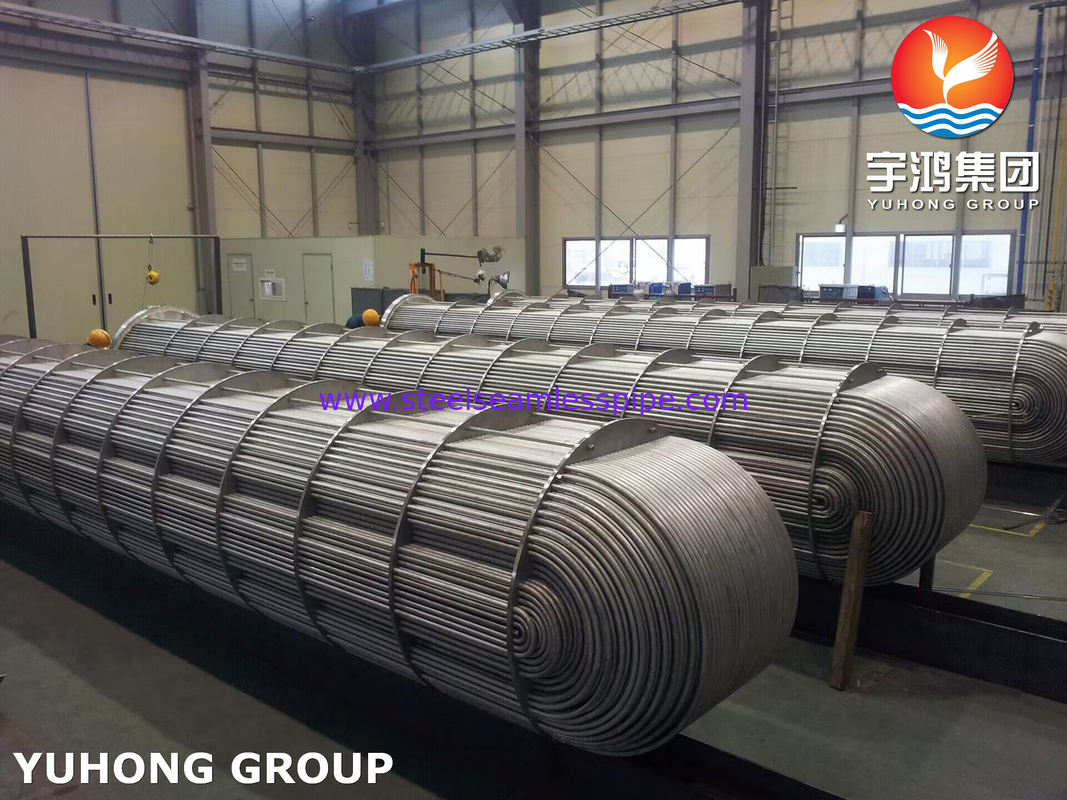

Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy

Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy

  • Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy
  • Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy
  • Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy
  • Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy
Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Plywood Case/Iron Case
Delivery Time: according to quantity
Payment Terms: T/T, L/C
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Standard: ASTM B111;ASTM A213;ASTM B163... Material: C44300/C70600/C68700;TP304L/TP316L;UNS N06625/UNS N04400...
Application: Heat Exchanger, Bolier Brand: YUHONG
High Light:

Heat Exchanger Tube Bundle

,

C44300 Copper Tube Bundle



Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy





Overview:



A tube bundle assembly is a configuration of tubes arranged within a cylindrical shell or plate to facilitate the transfer of heat or fluid.



The assembly typically consists of a bundle of small-diameter tubes enclosed within a larger shell or plate structure. The tubes are connected at both ends to tube sheets which separate the shell-side fluid from the tube-side fluid, allowing for the transfer of heat or fluid between the two mediums. The fluid can be either a liquid or a gas, and the purpose of the tube bundle assembly can range from heat exchange to fluid heating or cooling.



Tube bundle assemblies are widely used in various industrial applications, such as in heat exchangers, boilers, condensers, and other process equipment where efficient heat transfer or fluid exchange is required. They are commonly found in industries such as petrochemical, chemical processing, power generation, HVAC (heating, ventilation, and air conditioning), and many others.



The design and manufacturing of tube bundle assemblies involve considerations such as material selection, tube arrangement, tube pitch, tube diameter, shell diameter, tube sheet thickness, and the overall mechanical design to ensure efficient heat or fluid transfer, structural integrity, and long-term reliability.



Tube bundles can be made from a variety of materials depending on the intended application and operating conditions. Some common materials used in tube bundles include:



1. Copper: Copper is a good conductor of heat and is often used in tube bundles for air conditioning and refrigeration systems.



2. Stainless steel: Stainless steel is a popular material for tube bundles used in high-temperature and high-pressure applications, such as in chemical processing and power generation.



3. Carbon steel: Carbon steel is a strong and durable material that is often used in tube bundles for heat exchangers and boilers.



4. Titanium: Titanium is a lightweight and corrosion-resistant material that is used in tube bundles for applications where high strength and resistance to corrosion are required.



5. Inconel: Inconel is a family of nickel-chromium-based alloys that are known for their high strength and resistance to corrosion and oxidation. Inconel is often used in tube bundles for high-temperature applications, such as in gas turbines and aerospace components.



Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy 0



Application:



Tube bundles are commonly used in heat exchangers, which are devices designed to transfer heat between two or more fluids. The tube bundle is a collection of tubes that are arranged in a specific pattern within the heat exchanger. One fluid flows through the tubes, while the other fluid flows around the tubes, allowing for heat transfer between the two fluids.



Tube bundles can also be used in other types of equipment, such as shell and tube reactors, where the tubes are used to contain a reaction mixture and allow for heat transfer to or from the mixture. Additionally, tube bundles can be used in boilers, where they are used to transfer heat from the combustion gases to the water that is being heated.



In the oil and gas industry, tube bundles are used in heat exchangers for various processes, such as cooling of process fluids, heating of crude oil, and condensing of hydrocarbon vapors. They are also used in air-cooled heat exchangers, which are used to cool process fluids by passing them through a bundle of tubes that are exposed to ambient air.



Tube Bundle Assembly for Heat Exchanger, Material in Stainless Steel/Copper Alloy/Nickel Alloy 1
