Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM A213 T22 |
Minimum Order Quantity: | 10PC |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
Delivery Time: | 15-35 DAYS |
Payment Terms: | L/C, L/C, T/T |
Supply Ability: | 1000tons/month |
Product Name: | Boiler Tube | Standard: | ASTM A213 |
---|---|---|---|
Material: | T22 | Ends: | Plain Ends/ Bevelled Ends |
Type: | Seamless | Shape: | Round |
Size: | Customized | Length: | Customized |
High Light: | ASTM A213 Superheater Tube,Seamless Boiler Alloy Steel Tube |

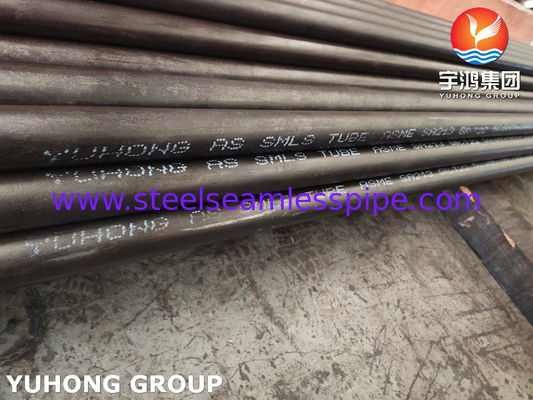

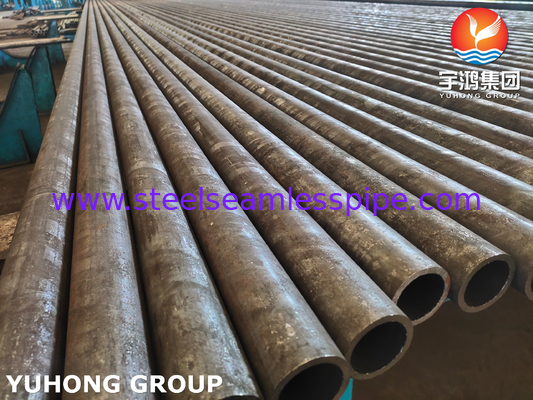

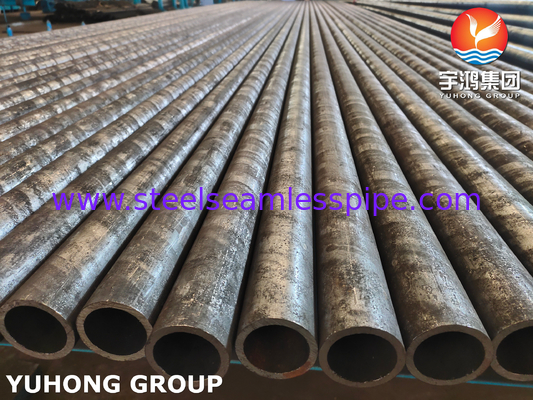

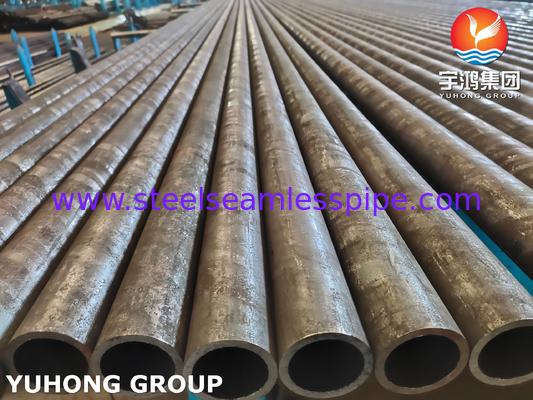

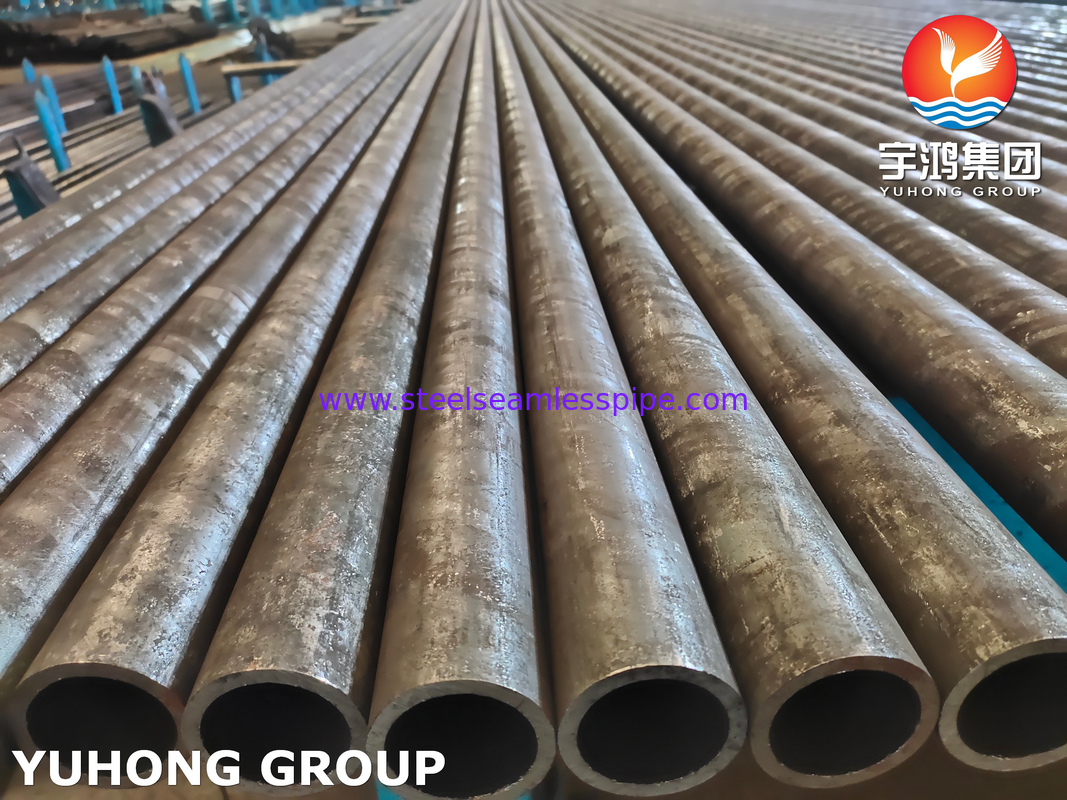

ASTM A213 T22,Alloy Steel Seamless Tube,Boiler,Superheater,Heat Exchanger
Overview
ASTM A213 is a standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. It covers a range of steel grades including T2, T5, T9, T11, T12, T22, T91, and T92, among others.ASTM A213 T22 specifically refers to a seamless ferritic alloy-steel tube with the composition suitable for high-temperature service. T22 is commonly used in power generation and petrochemical industries, particularly in boiler applications.The specification covers various mechanical properties such as tensile strength, yield strength, elongation, and hardness requirements. It also specifies the chemical composition of the steel, including elements like chromium, molybdenum, and carbon.
Chemical Composition of ASTM A213 T22
Grade | Mo | Cr | Si | Mn | C | P | S | |
T22 | Min | 0.87 | 1.9 | 0.3 | 0.05 | |||
Max | 1.13 | 2.6 | 0.5 | 0.6 | 0.15 | 0.025 | 0.025 |
Mechanical Properies of ASTM A213 T22
Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
T22 | ≥60(415) | ≥30(205) | ≥30 |
Wall Thickness Tolerance of ASTM A213
Welded, Hot-Finished Tubes | Type | Wall Thickness Tolerance |
OD Range | Average(-) | |
6~65mm(Incl.) | SMLS&WLD | (-12.5%,+20%) |
>65mm | SMLS&WLD t/D≤5% | (-12.5%,+22.5%) |
>65mm | SMLS&WLD t/D>5% | (-12.5%,+15%) |
The Application of ASTM A213 T22
