Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, ISO 9001-2008, GL, DNV, BV, NK, PED, AD 2000, GOST9941-81 |
| Model Number: | ASTM A268 TP405 Stainless Steel Seamless Tube |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Plywood Case /Iron Case/ Bundle with plastic Cap/requirements |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel Seamless Tube | Standard: | ASTM A268, ASME SA268 |
|---|---|---|---|
| Material: | TP409/TP410/TP405/TP420/TP430/TP430Ti/TP403/TP444/TP439/TP446,etc | Type: | Seamless, Welded |
| Surface: | Polished, Bright Annealed, Picked And Annealed | Length: | Single Random, Double Random & Cut Length |
| End: | Beveled End, Plain End | Application: | Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service |
| Package: | Plywood Case /Iron Case/ Bundle With Plastic Cap/requirements | Highlight: | ASTM A268 TP405 Stainless Steel Seamless Tube, Ferritic Stainless Steel Tube |
| High Light: | Heat Exchanger Tube ASTM A268,Polished Seamless Heat Exchanger Tube |
||

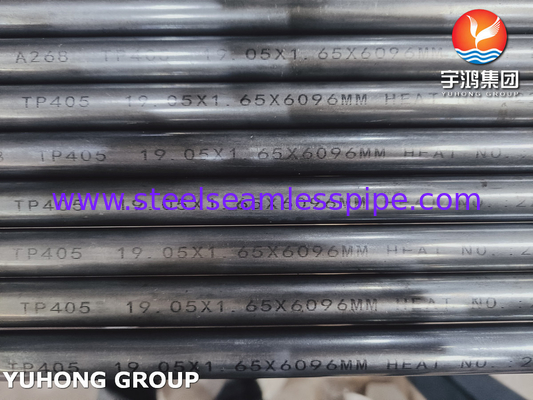

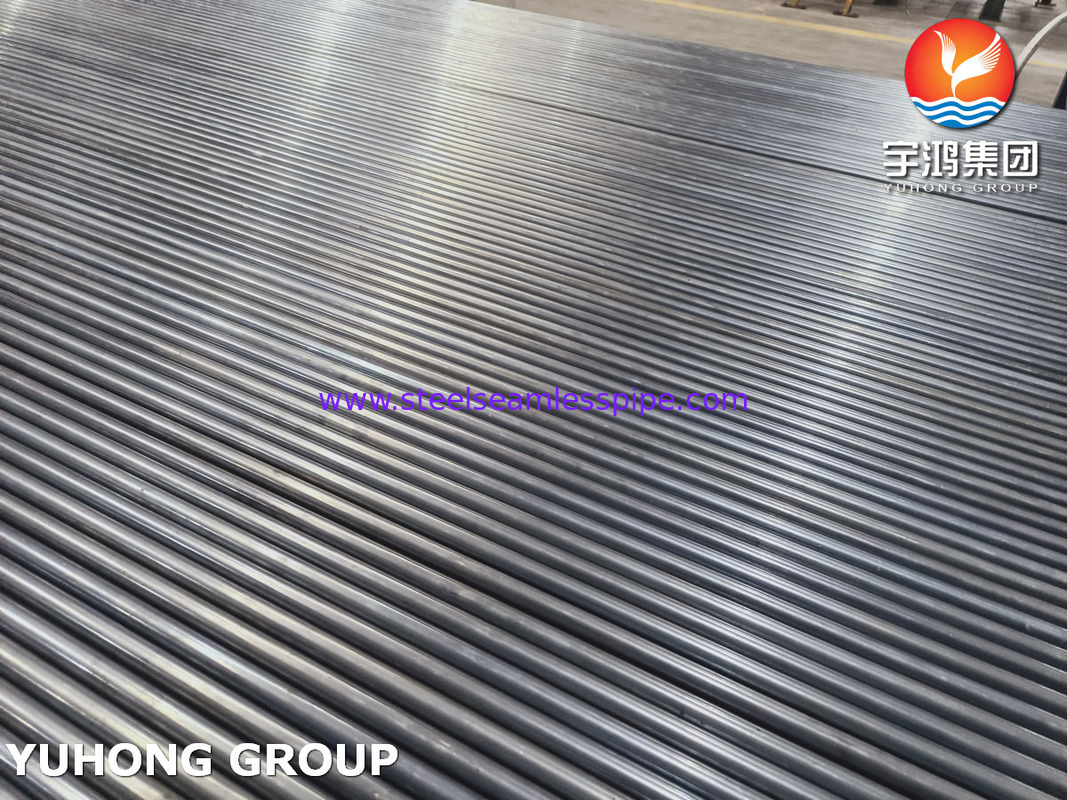

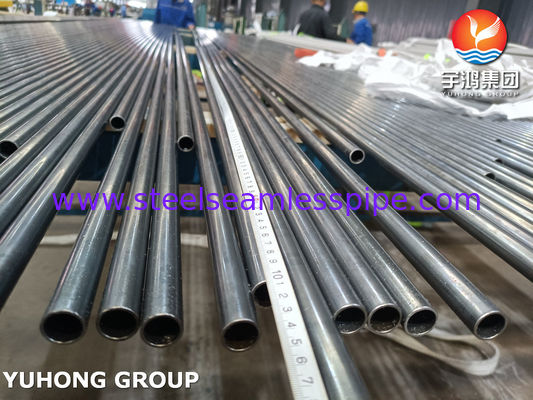

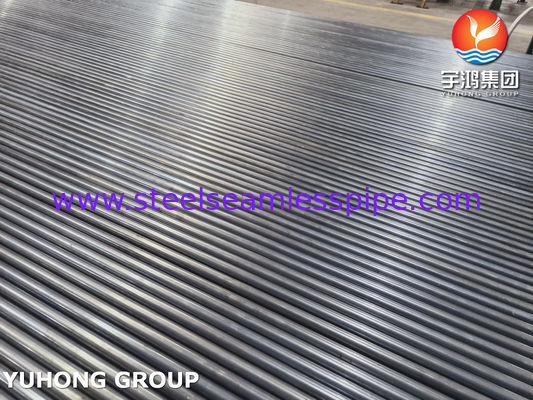

ASTM A268 TP405 / UNS S40500 Ferritic Stainless Steel Seamless Tube for Heat Exchanger
Stainless steel 405 is a ferritic stainless steel grade that contains chromium as its primary alloying element, along with small amounts of nickel and manganese. Like other ferritic stainless steels, grade 405 is magnetic due to its ferritic microstructure. It offers good resistance to atmospheric corrosion and mild chemical environments. However, it is less resistant to corrosion compared to austenitic stainless steels. Stainless steel 405 can be welded using common welding techniques such as shielded metal arc welding (SMAW), gas tungsten arc welding (GTAW), and gas metal arc welding (GMAW).
ASTM A268 TP410 Stainless Steel Seamless Tube Specification
| Outside Diameter | 6-203mm |
| Wall Thickness | 0.5-25mm |
| Length | Up to 25m |
| Standard | ASTM A268, ASME SA268 |
| Grade | TP410/TP405/TP420/TP430/TP430Ti/TP403/TP409/TP444/TP439/TP446,etc. |
| Delivery Condition | Pickled, Polished, Bright Annealed |
| Technique | Seamless/Welded |
| Application | Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service… |
| Marking | Standard, Grade, Size, Heat Number, Lot Number ... |
| Package | Bundle with plastic Cap, Plywood case, or as per customer's requirement. |
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); 3.2, Third Part Inspection is acceptable. |
| Ferritic Steel Tube ASTM A268 TP405 Chemical composition mass in % | |||||||||||
| Material grade | Norm | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | others |
| max. | max. | max. | max. | max. | |||||||
| 1.4002 | EN 10297-2 | 0,080 | 1,00 | 1,00 | 0,040 | 0,030 | 12,00 - 14,00 | Al 0,1 – 0,3 | |||
| TP405 | ASME SA / ASTM A 268 | 0,080 | 1,00 | 1,00 | 0,040 | 0,030 | 11,50 - 14,50 | 0,50 | Al 0,1 – 0,3 | ||
| Ferritic Steel Tube STM A268 TP405 Mechanical properties and heat treatment | |||||||
| Material grade | Norm | Rp 0,2 MPa | Rp 1,0 MPa | Rm MPa | A | Hardness | Heat treatment |
| min. | min. | min. max. | min.% | HRB max. | |||
| 1.4002 | EN 10297-2 | 210 | 220 | 400 | 10 | annealed | |
| TP405 | ASME SA 268/ ASTM A268 | 205 | 415 | 20 | 95 | annealed | |
| Rp 0,2 = Rotation Rp 1,0 = Yield Strength Rm = Tensile Strength A = Elongation | |||||||
| Ferritic Steel Tube ASTM A268 TP405 Tolerances | ||||
| OD - Tube | OD | WT | special WT | ID |
| ab Ø4,55 mm | ±0,050 mm | ±0,150 mm | ±0,100 mm | X |
| ab Ø9,53 mm | ±0,050 mm | ±0,100 mm | ±0,080 mm | ±0,050 mm |
| ab Ø30,00 mm | ±0,100 mm | ±0,150 mm | ±0,050 mm | |
The Features of ASTM A268 TP405 Stainless Steel Tube
1. Good corrosion resistance: SS405 stainless steel contains chromium, which provides excellent resistance to corrosion in various environments. 2. Heat resistance: SS405 can withstand high temperatures and is commonly used in applications where heat resistance is required.
3. Magnetic properties: SS405 is magnetic due to its ferritic structure.
4. Weldability: SS405 can be welded using various methods, making it suitable for fabrication processes
Other Material Grades
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
GOST |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
A268 TP405 seamless tubes find application in various industries, including:
Heat Exchangers: They are used in heat exchangers that operate at high temperatures, such as in power plants, petrochemical industries, and refineries.
Furnace Components: A268 TP405 tubes are used in the construction of furnace components, such as radiant tubes and heating elements, due to their high-temperature strength and oxidation resistance.
Piping Systems: They are employed in piping systems that handle high-temperature fluids or gases.
Chemical and Petrochemical Industries: A268 TP405 stainless steel tubes are utilized in chemical processing and petrochemical industries due to their corrosion resistance and high-temperature capabilities.
