Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASME A516 CR.70 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Application: | Heat Exchanger | Heat Exchanger Type: | Shell And Tube |
|---|---|---|---|
| Material: | Carbon Steel | Size: | Customized |
| Grade | C | Mn | P | S | Si |
| A516 Grade 70 | 0.27-0.31 | 0.79 – 1.30 | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Thickness | Yield | Tensile | Elongation |
| A516 Grade 70 | 6-100mm | MPa -260 min | MPa – 485-620 | 17-21% |
| Grade | British Standard | European Norm | ASTM/ASME | DIN |
| Gr. 70 | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |

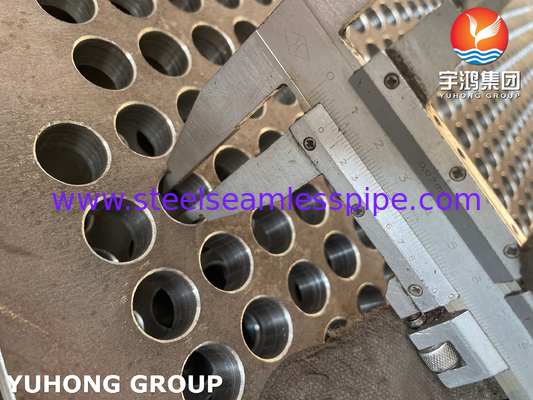

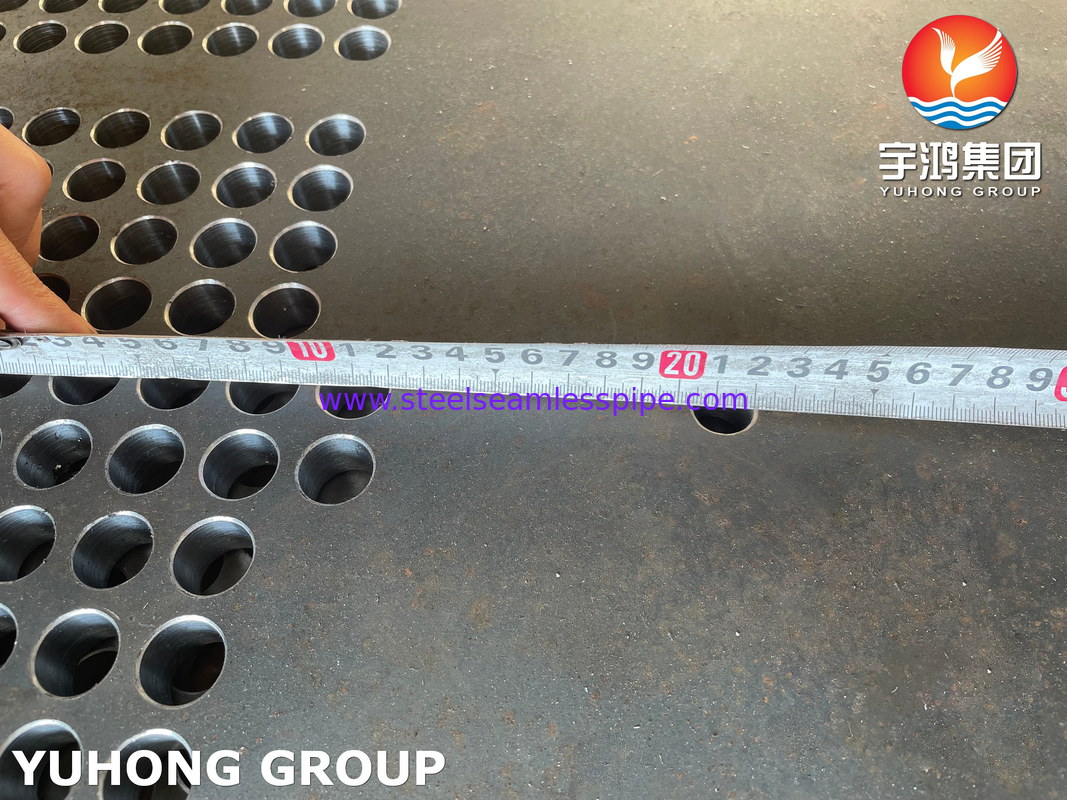

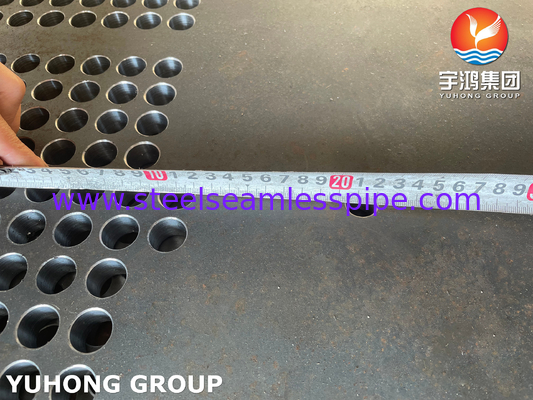

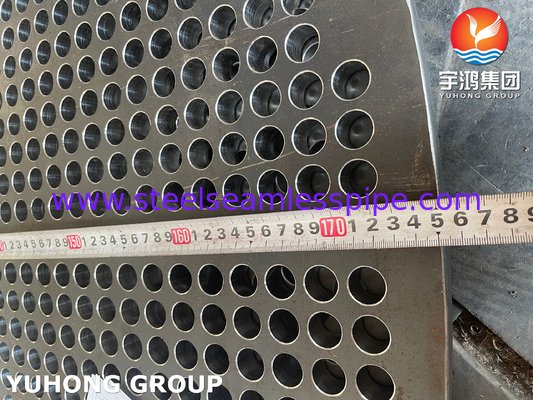

ASME A516 CR.70 is a material specification for carbon steel plates used in pressure vessel applications. Baffle plates are commonly used in heat exchangers, boilers, and other types of pressure vessels to enhance heat transfer and fluid flow.
Here are some possible applications of ASME A516 CR.70 baffle plates:
1. Heat exchangers: Baffle plates are used to direct the flow of fluids inside the heat exchanger, promoting efficient heat transfer between the hot and cold fluids. The ASME A516 CR.70 baffle plates provide structural strength and corrosion resistance required in such applications.
2. Boilers: Baffle plates are used in boilers to optimize the flow of combustion gases and enhance heat transfer to the water or steam. ASME A516 CR.70 baffle plates can withstand high temperatures and pressures encountered in boiler applications.
3. Reactors: Baffle plates are used in chemical reactors to promote mixing and control the flow of reactants and products. ASME A516 CR.70 baffle plates provide the necessary strength and durability in corrosive environments.
4. Storage tanks: Baffle plates are used in storage tanks to prevent sloshing and enhance the stability of the tank during transportation or seismic events. ASME A516 CR.70 baffle plates ensure the structural integrity of the tank and prevent leakage.
5. Oil and gas industry: Baffle plates are used in various equipment such as separators, distillation columns, and pressure vessels in the oil and gas industry. ASME A516 CR.70 baffle plates can withstand the harsh operating conditions and corrosive environments encountered in this industry.
