| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N08800, Alloy800, 1.4876 |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case / Iron Case / Bundle With Plastic Cap / Woven Bag |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM B407, ASME SB407 | Material Grade: | UNS N08800, Alloy800, Incoloy800, 1.4876 |
|---|---|---|---|
| Shape: | Round | Type: | Seamless |
| Outer Diameter(round): | 1/2" - 24" | Thickness: | SCH10 - SCHXXS |
| Ends: | Bevled End, Plain End, Thread End | Applications: | Construction Structure,Super Heater,Chemical Industry, Etc. |

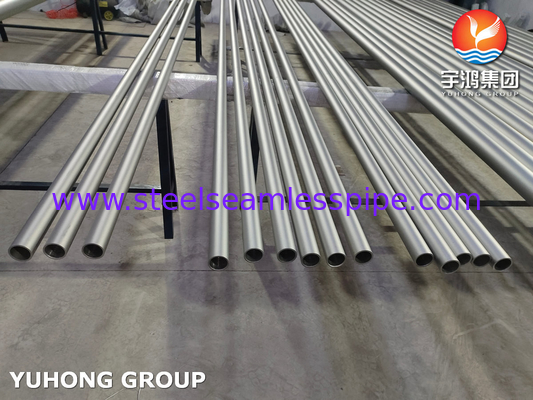

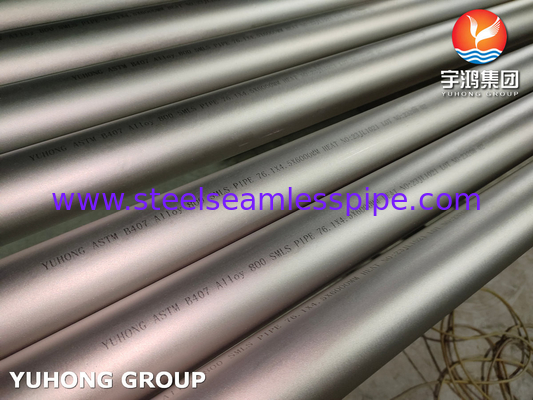

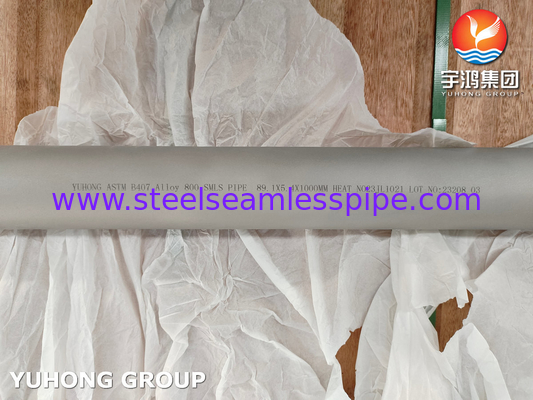

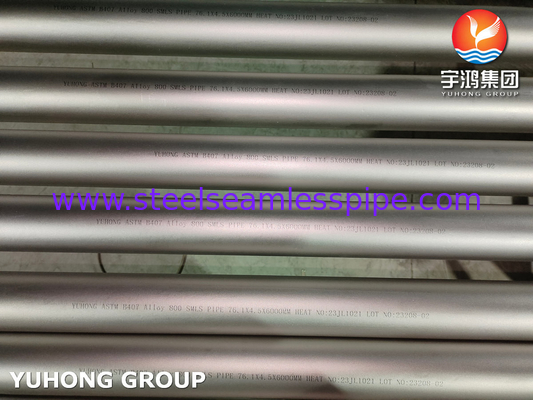

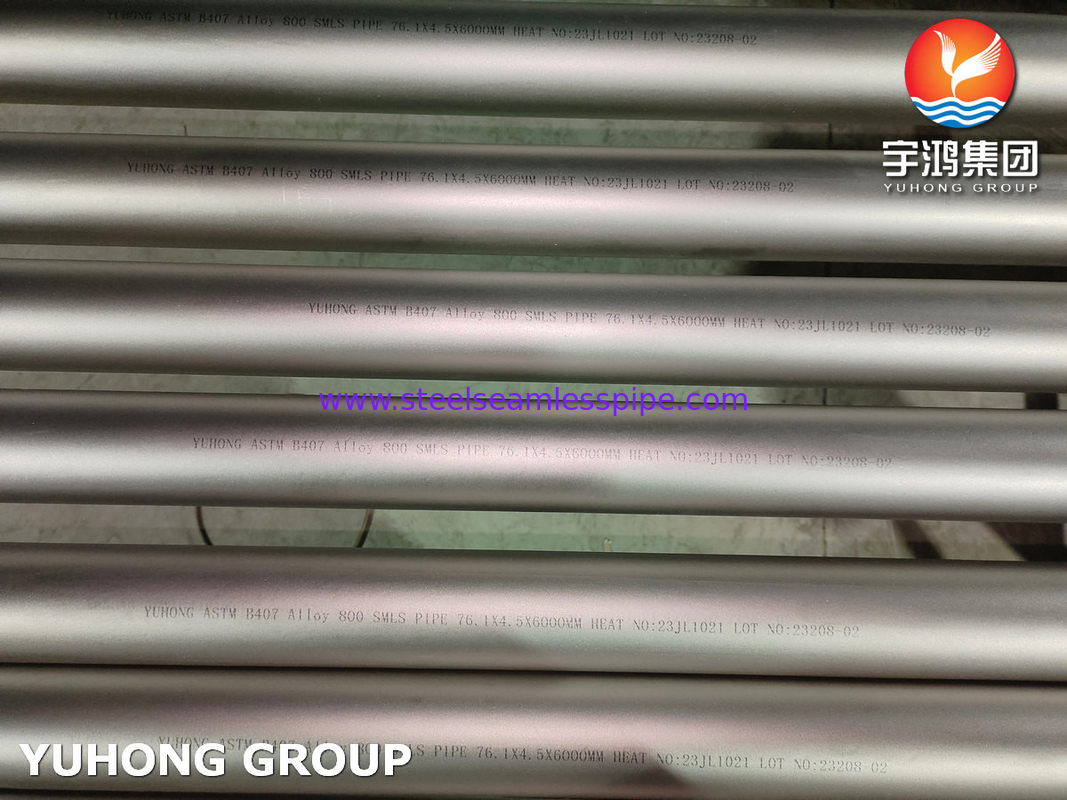

ASTM B407 UNS N08800, Alloy800, 1.4876 Nickel Alloy Seamless Pipe For Seawater Desalination
In the content of ASTM B407 UNS N08800 steel alloy, 52% Nickel forms the key chemical composition. It also contains19 % of Chromium & 18 % Iron. The Incoloy 800 Nickel Alloy Tube has excellent anti-corrosive properties and is highly resistant to corrosion in acidic environments.
ASTM B407 UNS N08800(Alloy800) Nickel Alloy Seamless Pipes are designed to resist Oxidation and Carburization. The general corrosion resistance is excellent. Incoloy 800 nickel alloy is a widely used material of construction for equipment which must have high strength and oxidation resistance, carburization, and other harmful effects of high temperature exposure. The ASTM B407 Incoloy 800 Seamless Pipe is a high-strength grade which is designed possessing superior strength and load-bearing capacity.
Specification:
| Secification | ASTM B407 / ASME SB407 |
| Material Grades | Incoloy 800 / Incoloy 800H / Incoloy 800HT / Incoloy 825 / UNS NO8800 / UNS NO8810 / UNS NO8811 / UNS NO8825 |
| Type | Cold Drawn Seamless |
| Outer Diameter Size | 1/2” to 24” |
| Wall Thickness | SCH10 to SCH160 |
| Length | 6 Meters, Or Customized Size |
| Pipes Ends | Plain Ends, Beveled Ends |
| Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Other Testing | NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Current test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved etc. |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
Equivalent Grade:
| STANDARD | UNS | WERKSTOFF NR. | OR | BS | JIS | AFNOR | GOST | EN |
| Incoloy 800 | N08800 | 1.4876 | XH32T | NA 15 | NCF 800 | Z8NC32-21 | ЭИ670 | X10NiCrAlTi32-20 |
Chemical Composition%:
| Ni | Cr | Fe | Ti | Al | C | Mn | Si | S | Cu |
| 30.0-35.0 | 19.0-23.0 | ≥39.5 | 0.15-0.60 | 0.15-0.60 | ≤0.10 | ≤1.50 | ≤1.00 | ≤0.015 | ≤0.75 |
Mechanical Properties:
| Grade | ASTM B407 Incoloy 800 |
| Tensile Strength (MPa) min | 520 MPa |
| Yield Strength 0.2% Proof (MPa) min | 205 MPa |
| Elongation (% in 50mm) min | 30% |
Applications:
Power Generation
Petrochemicals
Gas Processing
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
Aerospace
