Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS |
| Model Number: | ASTM B171 UNS C70600 Copper Alloy Tubesheet |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply wooden case / Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Forged Tubesheet | Standard: | ASTM B171, ASME SB171 |
|---|---|---|---|
| Material: | UNS C70600, C71500, C68700, | Size: | Can Custom, As Buyer's Drawing Requirements |
| Shape: | Cylinder | NDT: | 100% PT, UT, PMI |
| Application: | Tubular Heat Exchanger, Boiler, Pressure Vessel, Steam Turbine, Large Central Air Conditioning, Etc. | ||
| High Light: | CuNi 90/10 Copper Alloy Tubesheet,Heat Exchanger Copper Alloy Tubesheet |
||

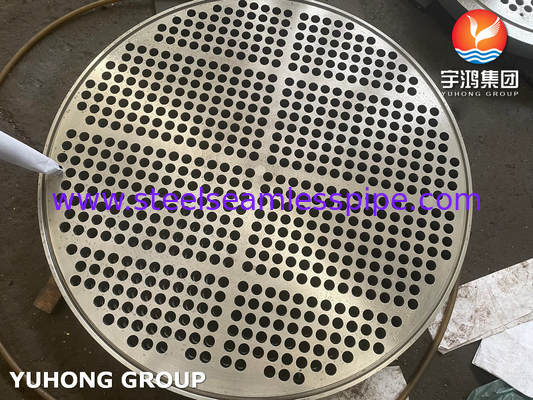

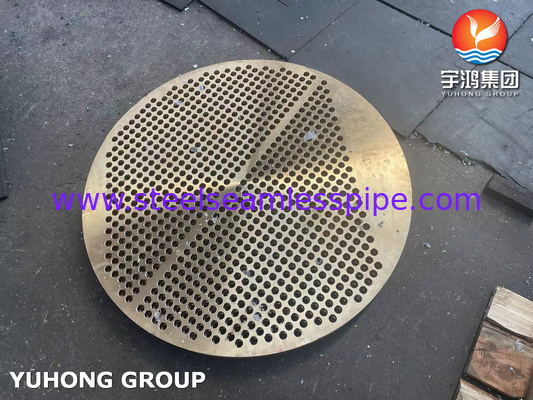

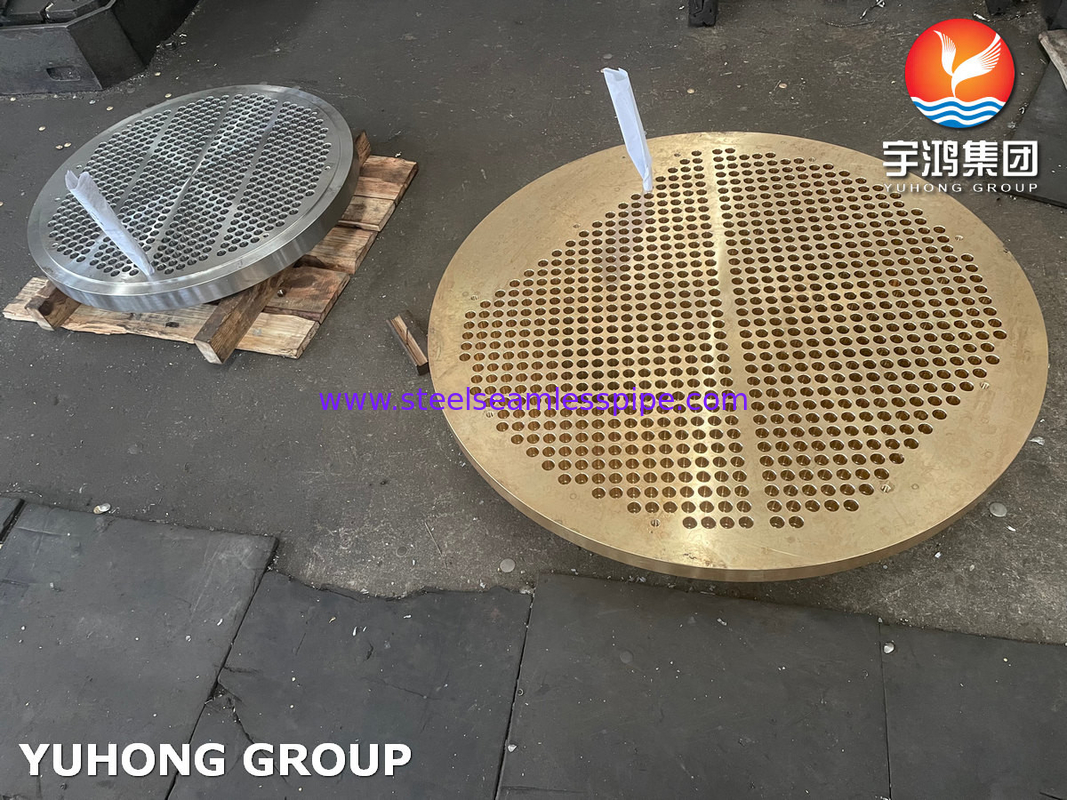

ASTM B171 Copper Alloy UNS C70600 Forged Tubesheet for Heat Exchanger / Pressure Vessel
UNS C70600 Copper Alloy Chemical Composition
| CU | FE | PB | MN | NI | ZN | |
|---|---|---|---|---|---|---|
| Min/Max | Rem | 1.0 - 1.8 | 0.05 | 1 | 9.0 - 11.0 | 1 |
| Nominals | 88.6 | 1.4 | - | - | 10.0 | - |
UNS C70600 Copper Alloy Physical Properties
| PRODUCT PROPERTY | US CUSTOMARY | METRIC |
|---|---|---|
| Coefficient of Thermal Expansion | 9.5 . 10-6 per oF (68-572 F) | 17.1 . 10-6 per oC (20-300 C) |
| Density | 0.323 lb/in3 at 68 F | 8.94 gm/cm3 @ 20 C |
| Electrical Conductivity | 9 %IACS @ 68 F | 0.053 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 115.0 ohms-cmil/ft @ 68 F | 19.12 microhm-cm @ 20 C |
| Melting Point - Liquidus | 2100 F | 1149 C |
| Melting Point - Solidus | 2010 F | 1099 C |
| Modulas of Elasticity in Tension | 18000 ksi | 124000 MPa |
| Modulus of Rigidity | 6800 ksi | 46880 MPa |
| Specific Gravity | 8.94 | 8.94 |
| Specific Heat Capacity | 0.09 Btu/lb/oF at 68 F | 377.1 J/kg . oK at 293 K |
| Thermal Conductivity | 26.0 Btu . ft/(hr . ft2 . oF)at 68F | 45.0 W/m . oK at 20 C |
UNS C70600 Copper Alloy Specifications
| End Product | Specification |
|---|---|
| Bar | ASTM B151, B122, MILITARY MIL-C-15726 |
| Pipe, Seamless | ASME SB466, ASTM B466 |
| Pipe, Welded | ASME SB467, ASTM B608, B467 |
| Plate | ASTM B122, MILITARY MIL-C-15726 |
| Plate, Clad | ASTM B432 |
| Plate, Condenser Tube | ASME SB171, ASTM B171, SAE J463, J461 |
| Rod | ASTM B151, MILITARY MIL-C-15726 |
| Rod, Welding | AWS A5.15 |
| Sheet | ASTM B122, MILITARY MIL-C-15726, SAE J463, J461 |
| Strip | ASTM B122, MILITARY MIL-C-15726 |
| Tube, Condenser | ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461 |
Material Grades of Tubesheet
| Type of materials | Technical requirements according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
Some common applications of tubesheets:
1. Heat Exchangers
2. Boilers
3. Condensers
4. Reactors
5. Oil and Gas Industry
6. Air Conditioning and Refrigeration
7. Pressure Vessels
