Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | Yuhong |
Certification: | ABS, BV, DNV, GL, LR, SGS, IEI |
Model Number: | ASME SA335 P22 Boiler Tubes |
Minimum Order Quantity: | 100kgs |
---|---|
Price: | Negotiable |
Packaging Details: | BUNDLE, PLYWOOD CASE |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 800 Tons/ month |
Name: | ASME SA335 P22 Boiler Pipes | Standard: | ASME SA335 |
---|---|---|---|
Material: | P22 | Diameter: | 10" |
OD: | 1/2" TO 24" | Thickness: | SCH120 |
Legth: | 6m Or Customized | End: | Beveled |
Surface: | Black Painting | High Light: | Boiler Pipes |
Highlight: | ASME SA335 Boiler Tube,Beveled End Seamless Boiler Pipes,6m Seamless Boiler Pipes |

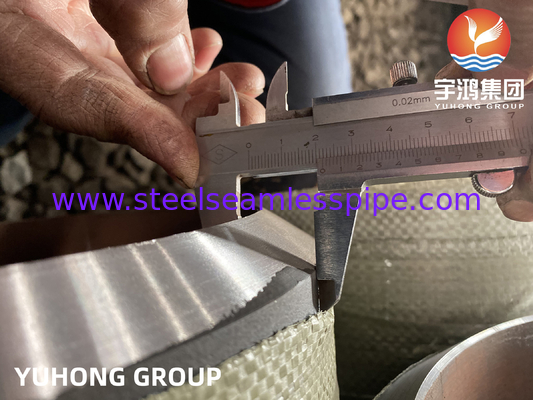

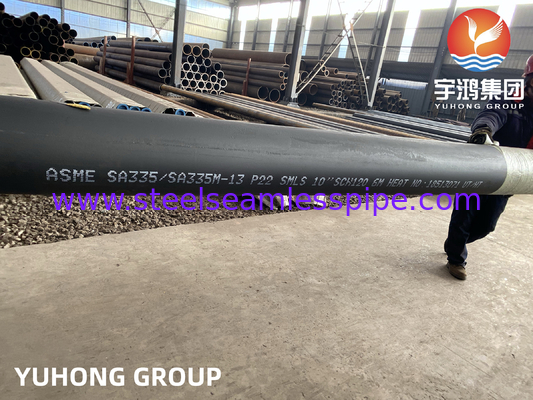

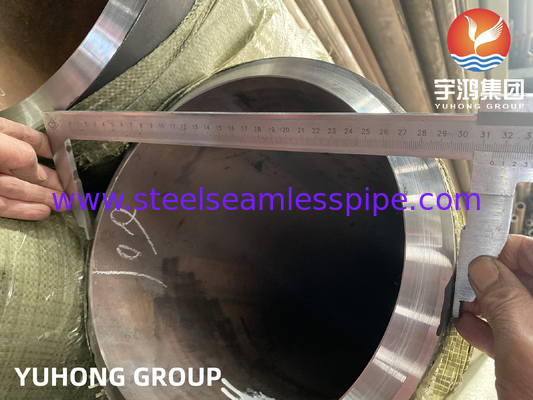

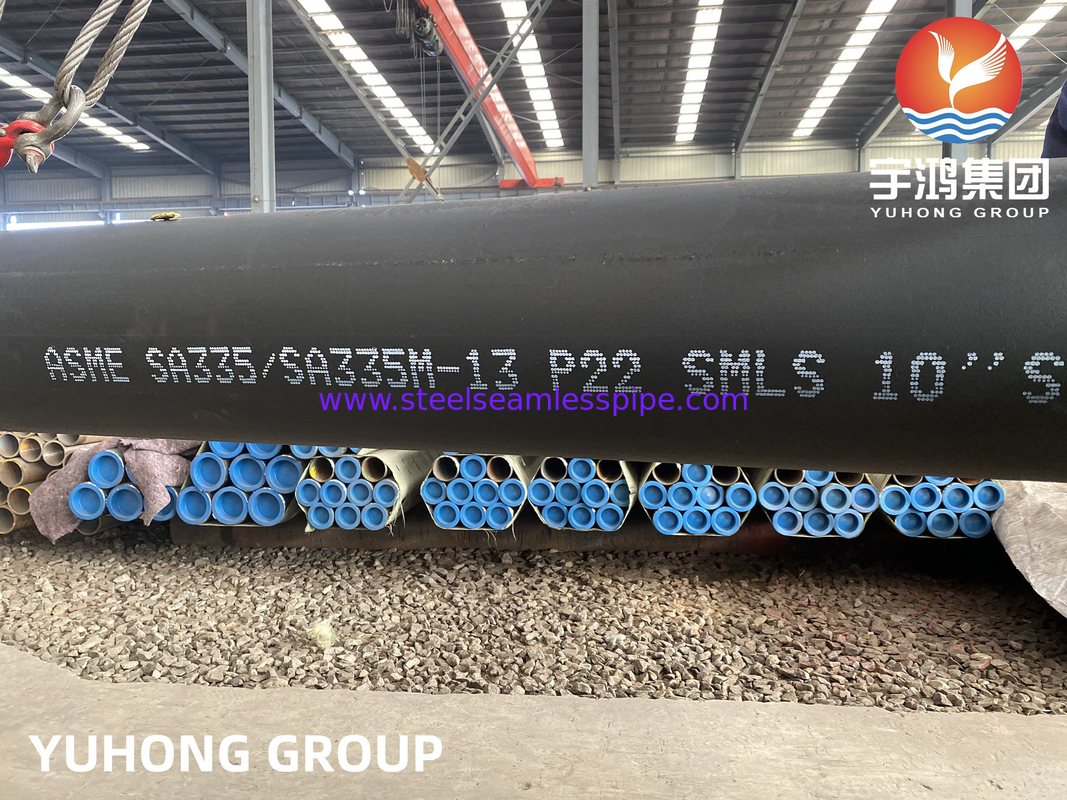

ASME SA335 P22 10" SCH120 Seamless Boiler Pipes Black Painting Beveled End
YUHONG A335/SA335 Grade P22 Alloy Steel Seamless Tubes are carbon steel tubes to which chromium, molybdenum and sometimes vanadium have been added. Chromium improves high temperature strength and oxidation resistance and increases tensile strength, yield strength and hardness at room temperature.
Molybdenum improves strength, elastic limit, wear resistance, impact properties and hardenability. It improves resistance to softening, inhibits grain growth and makes chromium steels less likely to embrittle. Molybdenum is also the most effective additive for improving high-temperature creep strength or creep resistance, as well as improving the corrosion resistance of steel and inhibiting pitting.
Grade P22 is used in high-temperature service applications and is resistant to changes in its microstructure.
Alloy steel seamless pipe/tube | |
PIPES & TUBES | : ASTM A335, ASTM A213, ASTM A691 |
PIPES FITTINGS | : ASTM A234 |
FITTINGS & FLANGES | : ASTM A182 |
GRADES | : P1/P5/P9/P11/P12/P22/P91 & T5/T9/T11/T22/T91 |
FORM (PIPES) | : SEAMLESS / E.R.W / EFSW |
Yuhong Special Steel is Exporters & Supplier of alloy steel seamless pipe, alloy steel pipe gr p5, alloy steel pipe gr p11, alloy steel pipe gr p9, alloy steel pipe gr p22, alloy steel pipe gr p91, ASTM A335, ASTM A213, ASTM A691. | |
Available Shapes : | |
Tubes & Pipes (SEAMLESS ) up to 30". Tubes & Pipes (ERW ) up to 60". Sheets / plates up to 150 MM. Rod / Bar up to 350 MM. Circle up to 1000 & Above as per your requirements. Thickness up to 200 MM & Above as per requirements. |
Chemical composition(%)
Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo |
P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
P22 | 0.05-0.16 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 1.90-2.60 | 0.87-1.13 |
P5 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
P9 | ≤0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
P91 | 0.08-0.12 | 0.30-0.60 | 0.020/0.010 | 0.020/0.010 | 0.02-0.50 | 8.00-9.50 | 0.85-1.05 |
P92 | 0.07-0.13 | 0.30-0.60 | 0.020/0.010 | 0.020/0.010 | ≤0.50 | 8.50-9.50 | 0.30-0.60 |
Mechanical properties
Grade | Tensile strength | Yield strength | Elongation |
P11, P22, P5, P9 | ≥415 | ≥205 | ≥30/20 |
P91 | ≥585 | ≥415 | ≥20 |
P92 | ≥620 | ≥440 | ≥20 |
Application
It Is Mainly Used To Make High-Quality Alloy Steel Boiler Pipe , Heat Exchanged Pipe, High Pressure Steam Pipe For Petroleum And Chemical Industry.
