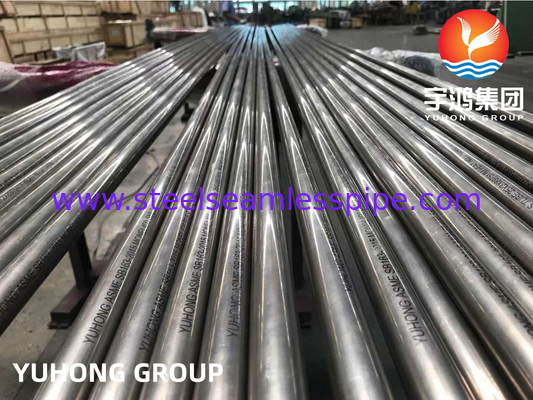

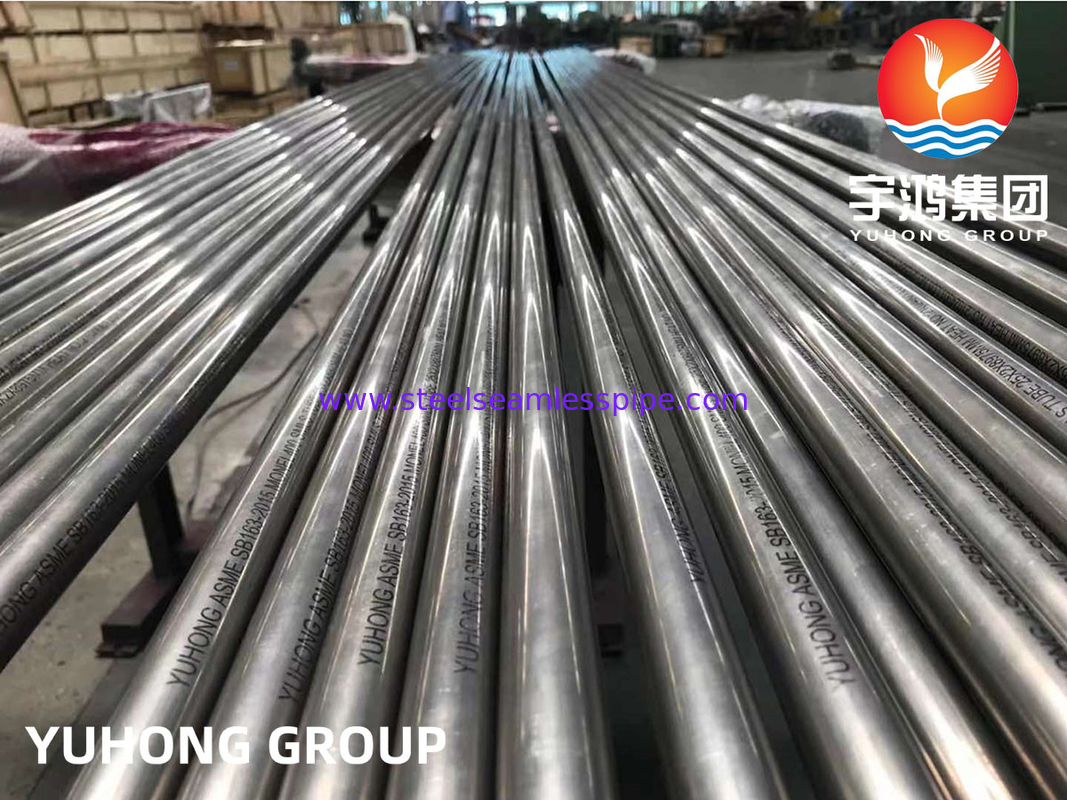

ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface

ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface

ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface
video
ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface
Product Details:
Place of Origin: China
Brand Name: Yuhong
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: MONEL400, UNS NO4400, DIN 2.4360, ALLOY 400
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
STANDARD: ASTM B163 Grade: MONEL400,UNS NO4400, DIN 2.4360, ALLOY 400
Outer Diameter: 6.35- 609.6 Mm Wall Range: 0.508AW-63.5 Mm
Max. Length: 15m Surface: Bright, Mill, Polished
NDT: ET, UT, HT, PT TYPE: Straight Tube , U Bend Tube , Coil Tube, Fin Tube
Highlight:

Bright Seamless Nickel Copper Alloy Tube

,

Bright Surface Nickel Copper Alloy Tube

,

Monel 400 Alloy Steel Tube

ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface



Monel 400 is a nickel-copper alloy (approx. 67% nickel - 23% copper) that is resistant to seawater and high-temperature steam as well as salt and corrosive solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy has good corrosion resistance, weldability and high strength. It has a low corrosion rate in fast-flowing brackish or seawater, excellent resistance to stress corrosion cracking in most freshwaters, and is also resistant to a wide range of corrosive conditions, making it widely used in marine and other non-oxidizing chloride solutions.


Specification



Specifications ASTM B163, B730 / ASME SB163, SB730
Dimensions ASTM, ASME and API
Size 6.35 OD (mm) To 152 OD (mm)
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Tubes
Form Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

Equivalent Grades for Monel 400 Seamless Tubes



STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Chemical Composition



Grade C Mn Si S Cu Fe Ni Cr
Monel 400 0.30 max 2.00 max 0.50 max 0.24max 28.0-34.0 2.50 max 63.00 min –

Mechanical Properties



Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %

Physical Properties



Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3

Pressure Rating





Tube O.D.
(in.)

 Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300
Applications
  • Marine engineering.
  • Chemical and hydrocarbon processing equipment.
  • Gasoline and freshwater tanks.
  • Crude petroleum stills.
  • De-aerating heaters.
  • Boiler feed water heaters and other heat exchangers.
  • Valves, pumps, shafts, fittings, and fasteners.

ASTM B163 Monel 400 UNS N04400 Seamless Nickel Copper Alloy Tube Bright Surface 0
