Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ASME, PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST, ISO |
| Model Number: | ASTM A182 F304 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply wooden case / Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Tubesheet | Standard: | ASTM A182 |
|---|---|---|---|
| Material: | F304/ UNS S30400/1.4301 | Size: | Customized |
| Class: | 150#,300#, 600#, 900# ,1500#,2500# | NDT: | PT, UT, PMI |
| High Light: | Stainless Steel Heat Exchanger Tube Plate,304 Stainless Steel Tube Plate,ASME SA182 Stainless Steel Tubesheet |
||

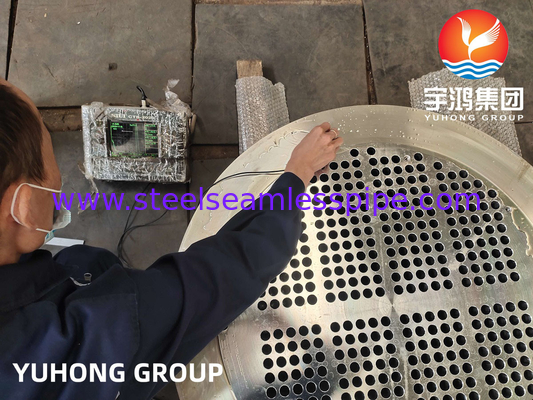

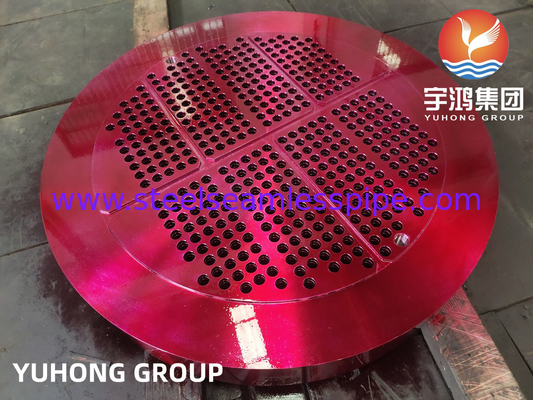

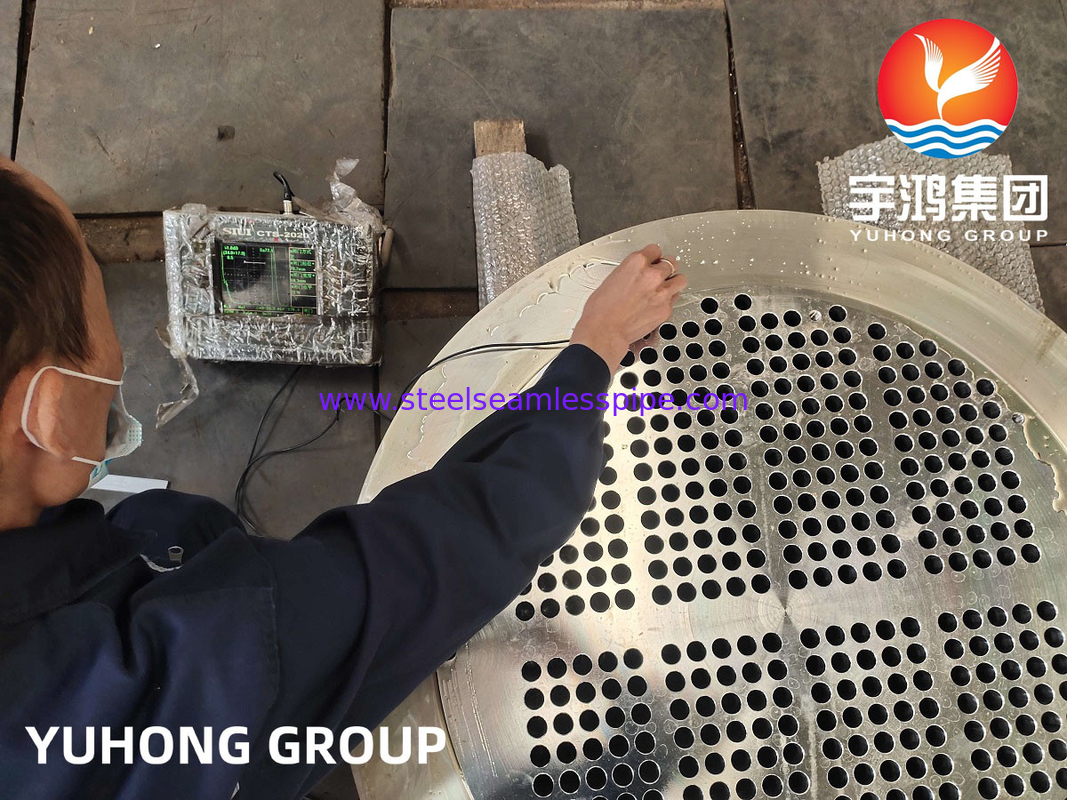

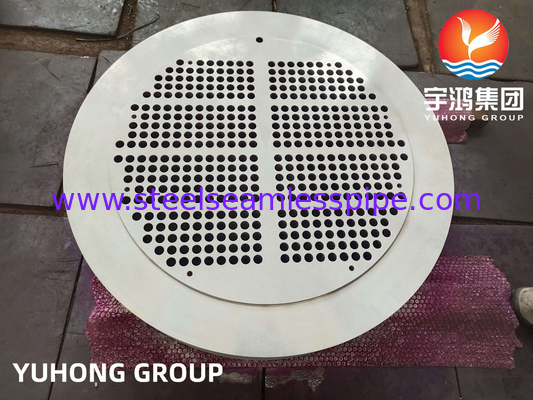

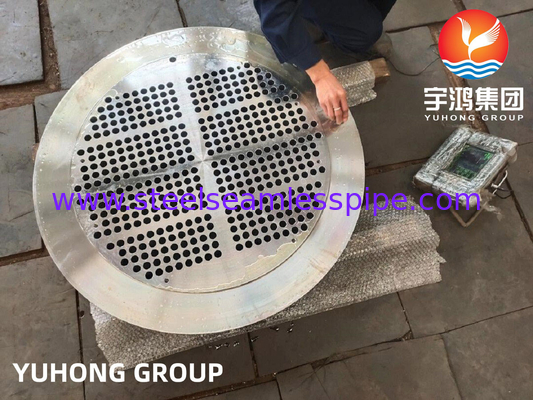

ASME SA182 Stainless Steel Tubesheet 304/UNS S30400/1.4301 Tube Plate
Tubesheet of Heat Exchanger
A tube sheet is a component of a heat exchanger that acts as a divider between the shell side and the tube side of the exchanger. It is typically a thick plate with holes drilled or machined into it to accommodate the tubes. The tubes are then inserted into these holes and mechanically secured, creating a tight seal.The tube sheet is responsible for supporting the tubes and maintaining their position within the heat exchanger. It also enables the transfer of heat between the fluids on the shell side and the tube side. The shell side fluid flows across the outer surface of the tubes, while the tube side fluid flows inside the tubes, allowing heat to be exchanged through the tube walls.
Stainless Steel 304 Equivalent
| STANDARD | Stainless Steel 304 |
|---|---|
| WERKSTOFF NR. | 1.4301 |
| UNS | S30400 |
| JIS | SUS 304 |
| BS | 304S31 |
| GOST | 08X18H10 |
| AFNOR | Z7CN18-09 |
| EN | X6CrNi18-10 |
Chemical Composition of 304
| Element | C | Cr | Ni | Mn | P | Si | S |
| Content (%) | 0.08 | 18.0-20.0 | 8.0-11.0 | 2.0 | 0.045 | 1.0 |
0.03 |
Mechanical Properies of 304
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Reduction of Area(%) |
| F304 | ≥70(515) | ≥30(205) | ≥30 | ≥50 |
| Carbon & Low Temperature | Chromiun | Stainless & Duplex | Copper& Bronze | Titanium | Ni-Alloy | |
| A105 /A105N | A182-F1 | A182-F304 | A182-F347H | SB151-C70600 | SB381-GR.1 | B564-NO2200 |
| A516-GR.70 | A182-F11 | A182-F304L | A182-F904L | SB151-C71500 | SB381-GR.3 | B564-NO6022 |
| A350-LF2 | A182-F12 | A182-F304H | A182-F44 | SB151-C71520 | SB381-GR.5 | B564-N10276 |
| A182-F22 | A182-F304N | A182-F51 | C44300 | SB381-GR.7 | B564-NO4400 | |
| A182-F5 | A182-F309S | A182-F53 | C68700 | SB381-GR.12 | B564-NO6600 | |
| A182-F9 | A182-F310S | A182-F55 | C71640 | B564-NO6601 | ||
| A182-F91 | A182-F310H | A182-F60 | B564-NO6625 | |||
| A182-F316 | B564-NO8800 | |||||
| A182-F316L | B564-NO8810 | |||||
| A182-F316Ti | B564-NO8811 | |||||
| A182-F316H | B564-NO8825 | |||||
| A182-F317L | B564-N10665 | |||||
| A182-F321 | B564-N10675 | |||||
| A182-F321H | B160-NO2201 | |||||
| A182-F347 | B462-NO8020 | |||||
