Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | EN10216-2 P265GH Carbon Steel Seamless U Bend Tube |
Minimum Order Quantity: | 1000KGS |
---|---|
Packaging Details: | Ply-wooden Case /Iron Case |
Delivery Time: | 7 DAYS |
Payment Terms: | L/C,T/T |
Product Name: | U Bend Tube | Standard: | En10216-2 |
---|---|---|---|
Material: | P265GH, P265GH, | O.D.: | 6.35MM , 9.52MM, 12.7MM , 15.88MM , 19.05MM, 20MM, 22,23MM, 25MM, 25.4MM , 31.75MM, 38.1MM , 44.45MM, 50.8MM , 63.5MM , 76.2MM, 88.9MM, 101.6MM, 152.4MM |
W.T.: | 0.89MM, 1MM, 1.24MM, 1.5MM, 1.65MM, 2MM, 2.11MM, 2.463MM, 2.5MM, 2.77MM, 3.05MM, 3.4MM | Length: | Single Random, Double Random, Custom |
Pipe End: | Plain End, Beveled End | Type: | Seamless |
NDT: | ET , UT, HT | Application: | Boiler, Heat Exchanger, Oil And Gas Plant, Cooling, Condenser |
High Light: | Heat Exchanger U Bend Tube,Low Carbon Steel U Bend Pipe,En10216-2 U Bend Tube |

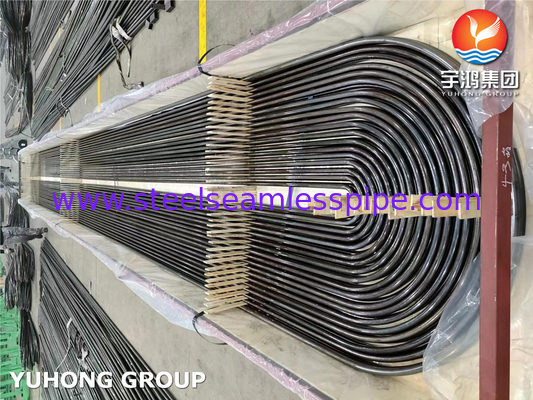

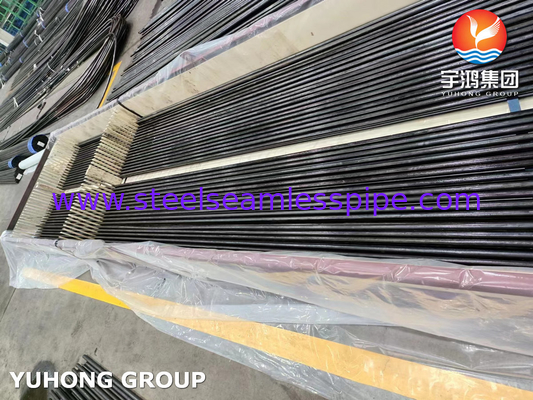

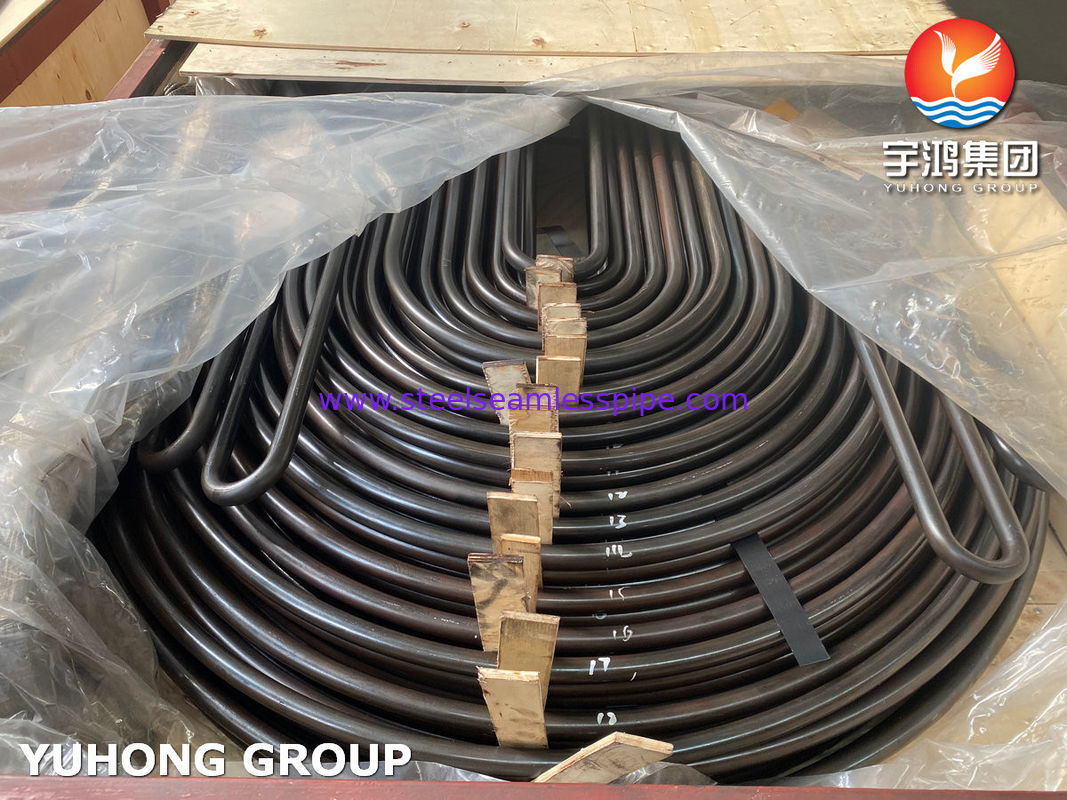

En10216-2 P265GH Carbon Steel Seamless U Bend Tube Heat Exchanger Tube
P265GH U bend tubes are manufactured in compliance with international standards such as ASTM, EN, and DIN. EN 10216-2 is a European standard that specifies the technical delivery conditions for seamless steel tubes for pressure purposes. This ensures the tubes meet specific quality, dimensional, and mechanical requirements, making them suitable for critical applications. P265GH carbon steel exhibits good resistance to corrosion, making it suitable for applications involving moderately corrosive environments. However, in highly corrosive conditions, additional corrosion protection measures may be required.
Chemical Composition
C | Si | Mn | P | S | Cr | Mo | Ni | Al | Cu | Nb | Ti | V | Cr+Cu+Mo+Ni |
0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 0.03 | 0.08 | 0.3 | 0.02 | 0.3 | 0.01 | 0.04 | 0.02 | 0.7 |
Mechanical Property
Grade | Steel Number | Upper yield strength or proof strength, Wall Thickness T min. | Tensile Strength Rm | Elongation A min.% | ||||
T≤16 | 16<T≤40 | 40<T≤60 | 60<T≤100 | Mpa | longitudinal | transverse | ||
Mpa | Mpa | Mpa | Mpa | |||||
P265GH | 1.0425 | 265 | 255 | 245 | / | 410-570 | 23 | 21 |
Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 |
Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% |
Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
T<=16 | 16 |
40 |
60 |
I | T | ||||||||
MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
EN P195GH | 195 | - | - | - | 320- 440 | 27 | 25 | - | 40 | 28 | - | 27 | |
EN P235GH | 235 | 225 | 215 | - | 360- 500 | 25 | 23 | - | 40 | 28 | - | 27 | |
EN P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 | - | 40 | 28 | - | 27 | |
16Mo3 | 280 | 270 | 260 | - | 450- 600 | 22 | 20 | 40 | - | - | 27 | - | |
14MoV6-3 | 320 | 320 | 310 | - | 460- 610 | 20 | 18 | 40 | - | - | 27 | - | |
13CrMo4-5 | 290 | 290 | 280 | - | 440- 590 | 22 | 20 | 40 | - | - | 27 | - | |
10CrMo9-10 | 280 | 280 | 270 | - | 480- 630 | 22 | 20 | 40 | - | - | 27 |
- |
Here are some benefits of P265GH CS U bend tubes:
Enhanced Heat Transfer: U-bend tubes are specifically designed to improve heat transfer efficiency. The U-shaped configuration allows for a greater surface area contact, maximizing the heat transfer between the fluid inside the tube and the surrounding environment. This makes P265GH CS U-bend tubes suitable for applications such as heat exchangers and boilers.
Compact Design: The U-bend shape allows for a more compact and space-efficient design. By bending the tube, it can be easily integrated into systems with limited space. This is particularly advantageous in applications where space is a constraint, such as in industrial plants or installations with complex piping arrangements.
Reduced Pipe Joints: U-bend tubes eliminate the need for additional joints or fittings along the bend, reducing the risk of potential leakage points or weak spots in the system. Fewer joints mean improved structural integrity and a lower chance of failure or maintenance issues.
Flexibility in Installation: P265GH CS U-bend tubes offer flexibility during installation. Their U-shaped design allows for easier routing and fitting into existing systems, especially in cases where modifications or replacements are required. The flexibility simplifies the installation process and reduces the overall installation time and costs.
Suitable for High-Temperature Applications: P265GH carbon steel has excellent high-temperature properties, including good creep resistance. This makes P265GH CS U-bend tubes suitable for applications that involve high-temperature fluids or gases, such as steam generation, power plants, and thermal power stations.
Applications
Pharmaceutical / Chemical Equipment
Power Generation
Sea Water Equipment
Petrochemicals
Heat Exchangers / Condensers / Boiler
Gas Processing
Specialty Chemicals
Pulp and Paper Industry
