Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | SS304, SS316L |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | 3A, SMS, DIN, ISO, IDF, RJT, BS | Material Grade: | AISI 304, 316L, 1.4301, 1.4404 |
|---|---|---|---|
| Size: | Customized Size,1/2''-12'' | Schedule: | SCH5S - SCHXXS |
| Technics: | Butt Weld | Applications: | Chemical, Food Processing, Dairy, Water Treatment |
| High Light: | SMS Sanitary Stainless Steel Fittings,316L Sanitary Stainless Steel Fittings,Sanitary Stainless Steel Elbow Reducers |
||

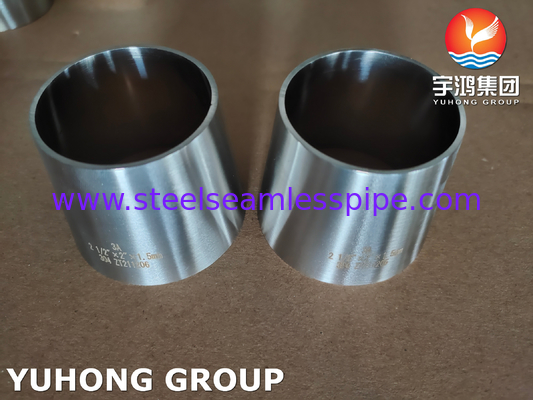

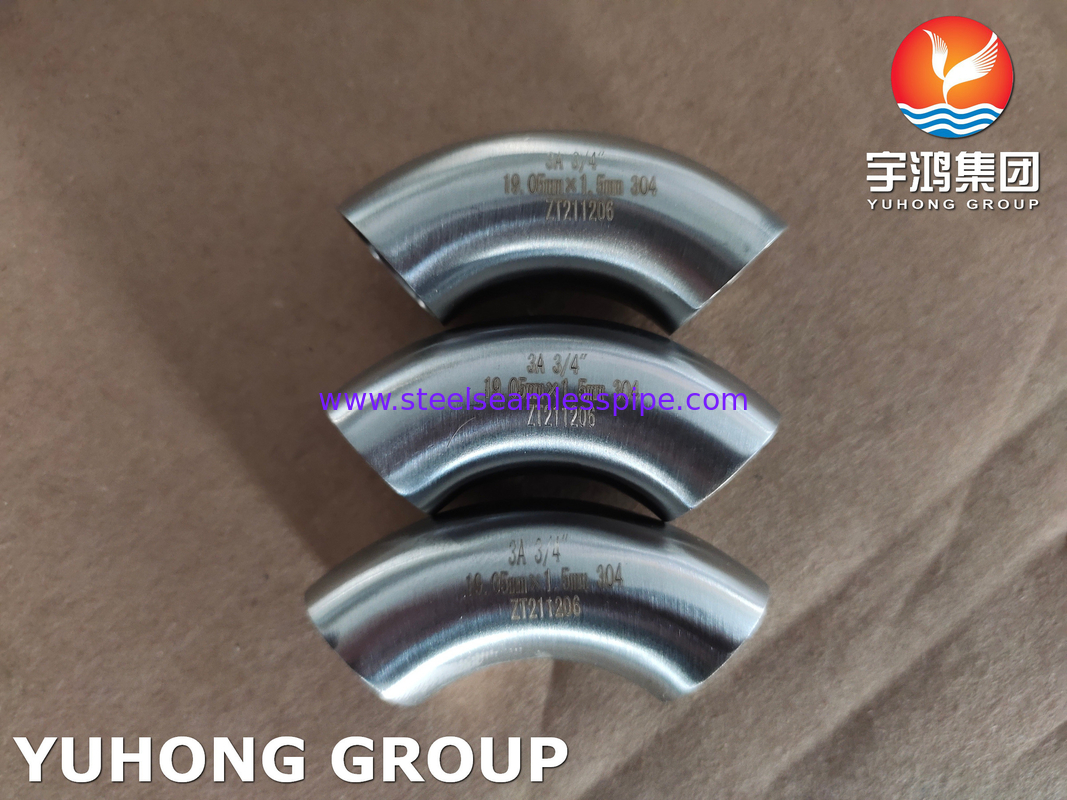

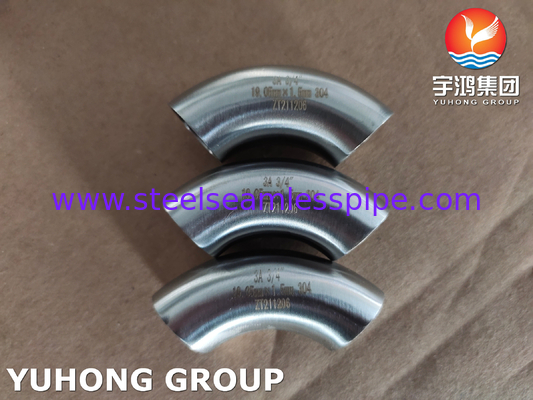

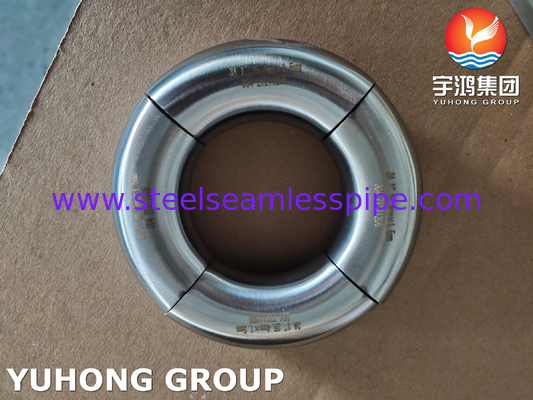

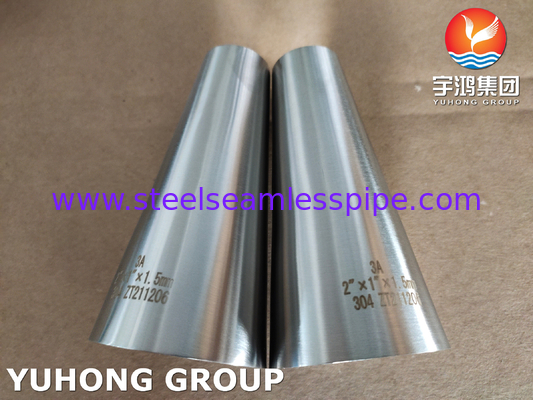

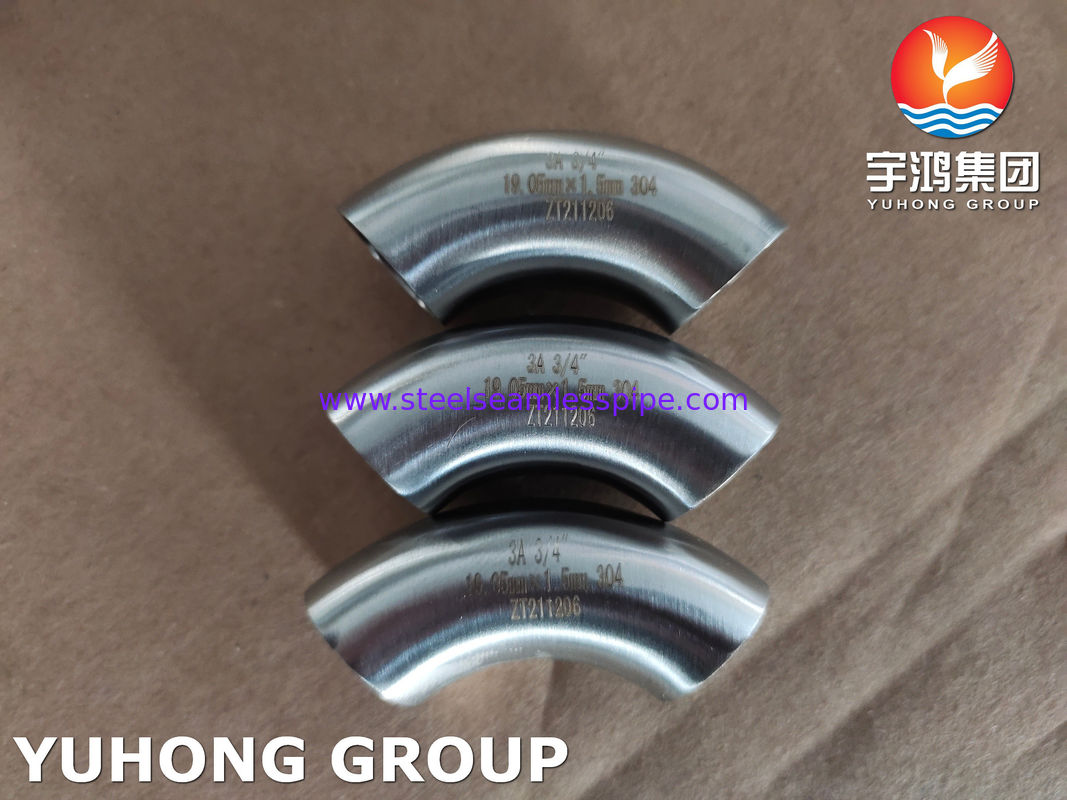

SS304, SS316L 3A SMS Sanitary Stainless Steel Fittings Elbows Reducers For Dairy Plant
SS304 and SS316L stainless steel sanitary buttweld pipe fitting is a general stainless steel tube fitting, and it can be offered in form of elbow,tee,reducer,cross etc. Stainless seel sanitary pipe fittings are commonly used in the food, brewery, dairy and pharmaceutical industries. They are pipe fittings, which are ideal for piping work that has to be dismantled for cleaning and sterilising.
Specifications:
| Product Name | Sanitary Stainless Steel Bend, Elbow |
| Elbow Type | Short Type, Long Type |
| Material | SS304, SS316L |
| Standard | 3A, SMS, DIN, ISO, IDF, RJT, BS |
| Size | 1/2"-12" |
| Connection End | Tri Clamp, Butt Weld, Male Thread, Female Thread, Union, Flange |
| Surface Finishing | Mirror or Matte Polishing |
| Packing Details | Carton Box, Plywood Case |
Chemical Composition:
| C | Mn | P | S | Si | Ni | Cr | Fe |
| 0.08 | 2.00 | 0.045 | 0.030 | 1.0 | 8-11 | 18-20 | Bal. |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50 mm) min | Hardness | |
| Rockwell B (HR B) Max. | Brinell (HB) Max. | |||
| 515 | 205 | 40 | 92 | 201 |
Applications:
Hygienic Processing Industry
Dairy Plant
Food Processing
Beverage Plant
Pharmaceutical
Cosmetics
Chemical Industry
Water Treatment
