Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SB171 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 20-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs/month |
| Product: | Plates | Standard: | ASME SB171 |
|---|---|---|---|
| Material: | Copper Alloy | Grade: | C71500 |
| Packing: | Standard Export Package | Use: | Pressure Vessels, Heat Exchanger, Condenser, Boiler |
| High Light: | Heat Exchangers Copper Alloy Tubesheet,Copper Alloy Tubesheet Plates,ASME SB171 Heat Exchanger Plate |
||

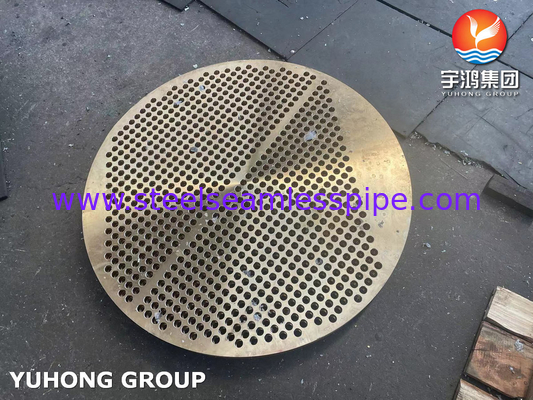

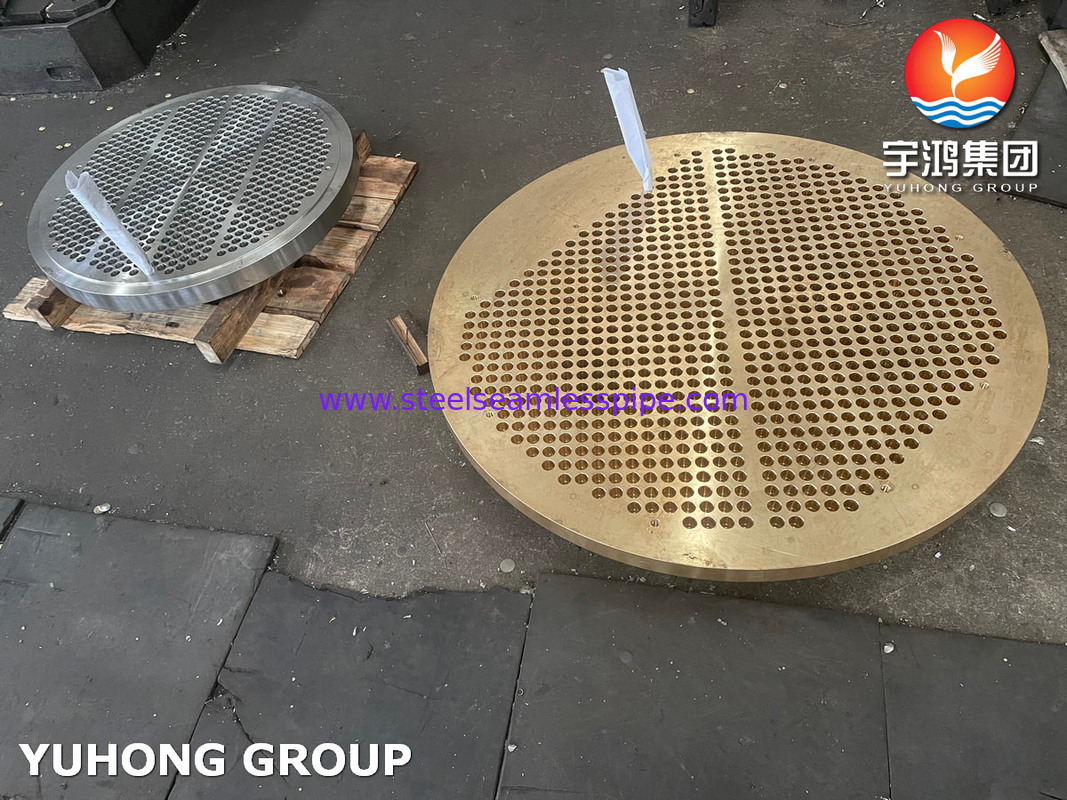

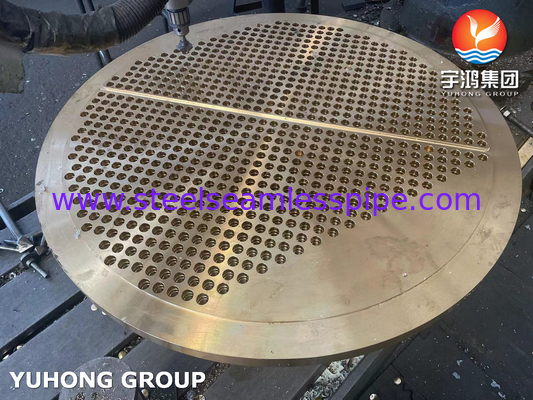

ASME SB171 C71500 Copper Alloy Tubesheet Plates For Heat Exchangers
YUHONG Group can do many projects: heat exchanger / boiler projects, marine projects, oil & gas projects etc.And we supply variety of tube sheets/plates made by many materials, according to requires of clients.

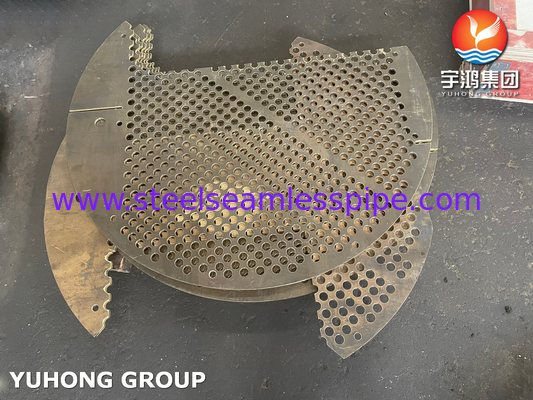

This page is about ASME SB171 copper alloy tubesheet baffle plates for heat exchanger, for boiler, for condenser, etc.
ASME SB171 This specification establishes the requirements for copper-alloy plate, sheet, and circles cut from plate and sheet for pressure vessels, condensers, and heat exchangers.
Plates under this specification are available in these grades as follows:
Copper Alloy Previously Used Designation
C36500 Leaded Muntz Metal
C44300 Admirality, Arsenical
C44400 Admirality, Antimonial
C44500 Admirality, Phosphorized
C46400 Naval Brass, Uninhibited
C46500 Naval Brass, Arsenical
C61300 Aluminum Bronze
C61400 Aluminum Bronze D
C63000 10 % Aluminum-Nickel Bronze
C63200 9 % Aluminum-Nickel Bronze
C70600 9 % Aluminum-Nickel Bronze
C71500 70-30 Copper Nickel
...
Chemical Composition (%)
| Grade | Cu | Ni, incl Co | Mn,max | Pb | Fe |
Zn |
| C71500 | remainder | 29.0-33.0 | 1.0 | 0.05C | 0.4-1.0 |
1.0C |
C When the product is for subsequent welding applications, and is so specified by the purchaser, zinc shall be 0.50 % max, lead 0.02 % max, phosphorus 0.02 % max,sulfur 0.02 % max, and carbon 0.05 % max.
Mechanical Properties
|
Thickness, in. [mm]
|
Tensile Strength,min | Yield Strength B,min | Yield Strength C,min | Elongation in 2 in. [50 mm], min |
Density lb/in.3 [g/cm3 ]
|
|
over 2.5 to 5 [60.0 to 140.0], incl
|
40 ksi [275 MPa]
|
15 ksi [105 MPa] | 15 ksi [105 MPa] | 30 [30] |
0.323 [8.94]
|
|
2.5 [60.0] and under
|
50 ksi [345 MPa] | 20 ksi [140 MPa] | 20 ksi [140 MPa] | 30 [30] |
Application
Boilers
Heat exchangers
Condensers
Evaporators
Pressure Vessels,
Oil coolers,etc
