Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 Carbon Steel Low Fin Tube |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Low Fin Tube | Material: | ASTM A179, ASME SA179 |
|---|---|---|---|
| Tube OD: | 12mm(min) | Fin Thickness: | 0.2mm~ |
| Fin Height: | ~1.6mm | Fin Pitch: | Fins Per Inch, Fins Per Meter |
| Length: | Depend On Client Request | End: | Plain End, Beveled End |
| Application: | Oil Cooler, Pre Heater, Radiator, Air Conditioner Evaporator And Condenser, Steam System | ||
| High Light: | Seamless Carbon Steel Low Fin Tube,ASME SA179 Low Fin Tube |
||

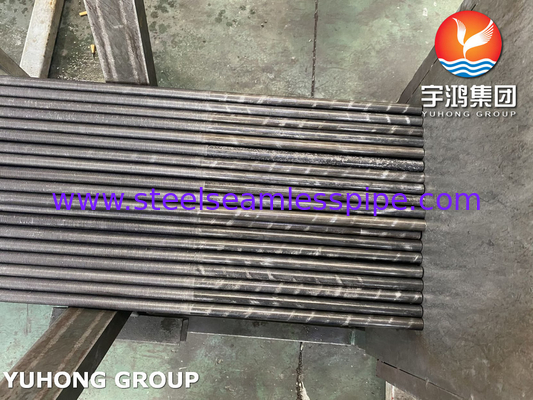

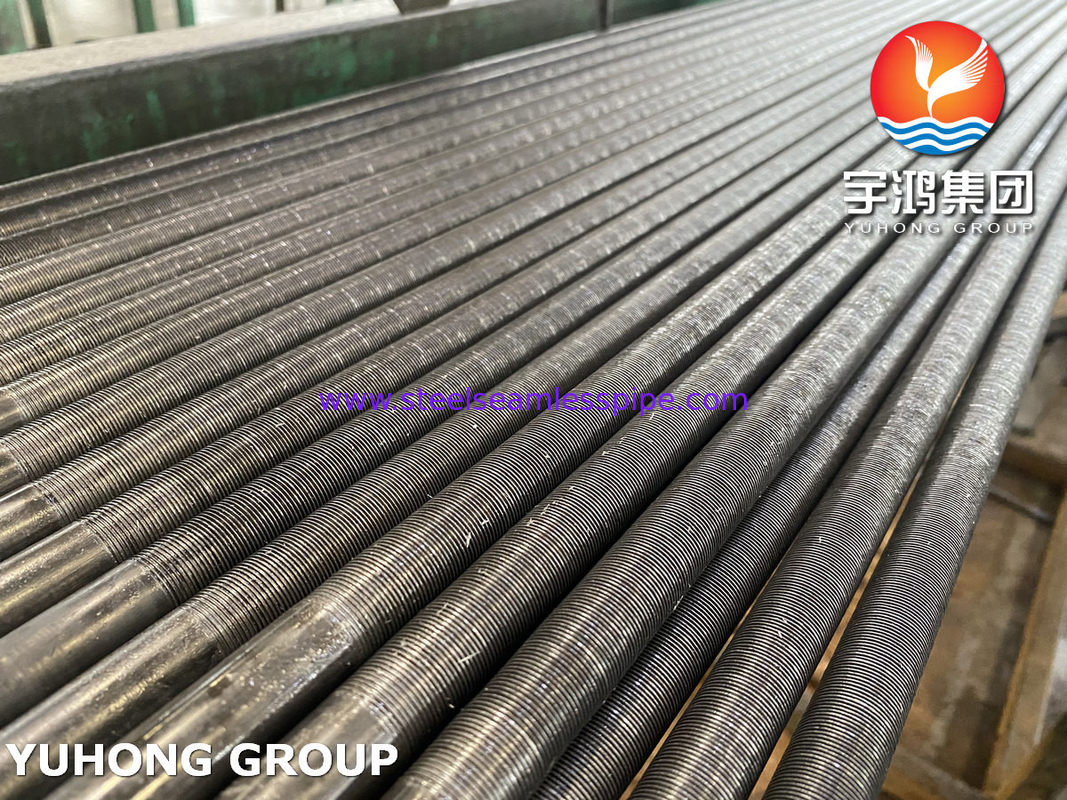

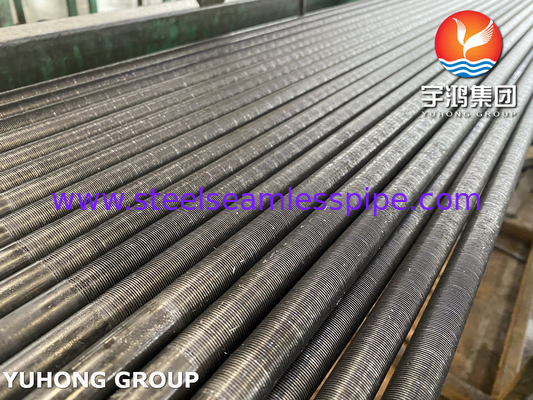

ASTM A179 / ASME SA179 Seamless Carbon Steel Tube Low Fin Tube for Heat Exchanger
Low finned tubes have finning that runs the length of the tube with low height fins, which significantly increases the surface area available for heat exchange without greatly increasing pressure drop. The increased surface area provided by the fins on low finned tubes enhances heat transfer efficiency, making them particularly effective in applications where compact heat exchangers are required. They are commonly used in air conditioning, refrigeration, heating, and process industries where efficiency and space constraints are crucial.
Technical Specifications- Low Finned Tube
It is possible to produce low finned tubes with different materials and dimensions, on customer request.
| Standard Dimensions - Low Finned Tubes | |||||||
| Outside Diameter | Thickness | Length | Fin Density | ||||
| (mm) | (inch) | (mm) | (BWG) | (m) | (ft) | (fins/inch) | (fins/m) |
| 12.00~ 60.00 | 0.47~ 2.4 | 0.635 ~ 4.572 | 23 ~ 7 | 0.3 ~ 25 | 1 ~ 82 | 8 ~ 40 | 315 ~ 1575 |
| Materials - Low Finned Tubes | |
| Carbon Steel | SA 179 / A 179 |
| Carbon Steel | SA 210 / A 210 |
| Carbon Steel | SA 334 / A 334 |
| Stainless Steel | SA 213 / A 213 |
| Duplex Stainless Steel | SA 789 / A 789 |
| Copper & Cu Alloys | SB 111 / B 111 |
| Titanium & Ti Alloys | SB 338 / B 338 |
| For different materials please contact our sales department. | |
| Standard Technical Specifications - Low Finned Tubes | |
| Carbon Steel | ASTM A 498 |
| Stainless Steel | ASTM A 1012 |
| Copper and Copper Alloys | ASTM B 359 |
| Titanium | ASTM B 891 |
| For different materials please contact our sales department. | |
| ALSO AVAILABLE - LOW FINNED TUBES | |
| Condenser Tube "Y-fin" | Evaporator Tube "T-fin" |
 |
|
| Inner Grooved (IG) Low Fin Tube | Inner Grooved (IG) Y-Fin / T-fin Tube |
|
|
| U-Bent Low Fin Tube | Annealed Low Fin Tube |
|
|
| Inspections and Tests - Low Finned Tubes | |
| Chemical Composition | |
| Mechanical Properties | |
| Hydrostatic Test | |
| Pneumatic Test | |
| Boroscopic Inspection | |
| Eddy Current Test | |
Advantages: Low finned tubes offer higher heat transfer efficiency, lower material costs compared to other enhanced surface tubes, compact size, and improved heat exchanger performance.
Disadvantages: They may have limitations in extreme operating conditions where high temperatures and pressures are involved.
Applications
1.Heat exchangers for power plants (electric, nuclear, thermal and geothermal power plants)
2.High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids)
3.Chemical and petrochemical industries
4.Food processing and refrigeration industries
