Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, USA, Korea, UE |
| Brand Name: | YUHONG SPECIAL STEEL |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Stainless Steel Corrugated Fin Tube |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Stainless Steel: | TP304, TP304L , TP310S, TP316L , TP316Ti , TP321, 904L | Standard: | A213 , A269 ,A789 , B163, B407 |
|---|---|---|---|
| O.D.: | 12.7 Mm To 139.8 Mm | FPI: | 8-30 Mm |
| Fin Height: | ＜2.5mm | Packing: | Ply-Wooden Case |
| Delivery Time: | 5---15 Days | ||
| High Light: | TP304 Stainless Steel Corrugated Fin Tubes,Preheating Devices Corrugated Fin Tubes,TP316L Stainless Steel Corrugated Fin Tubes |
||

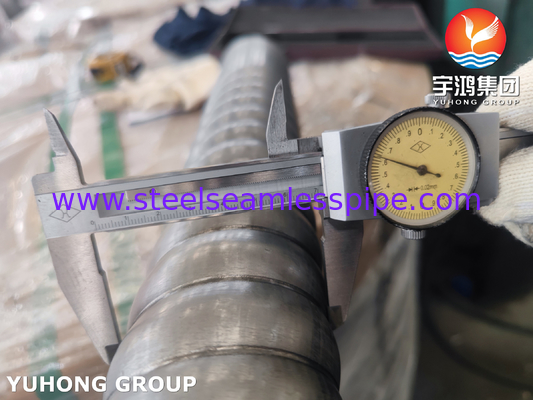

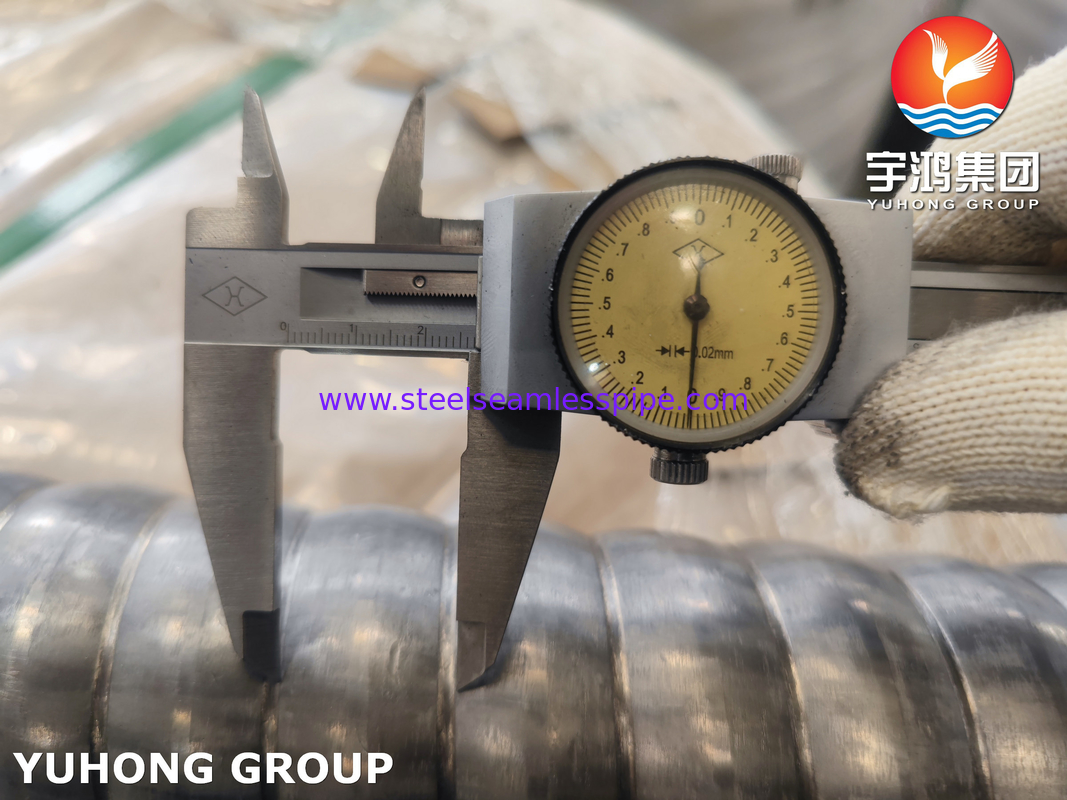

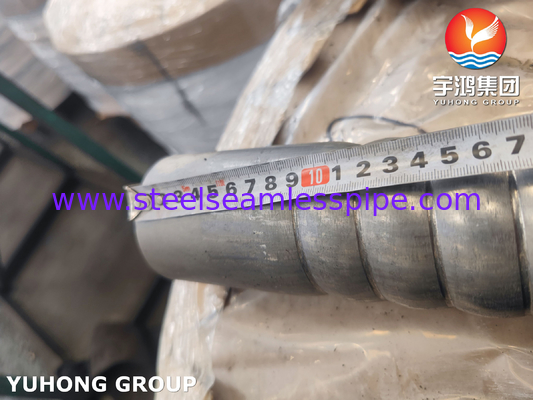

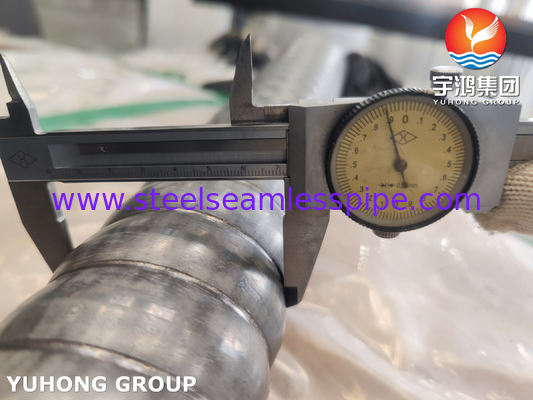

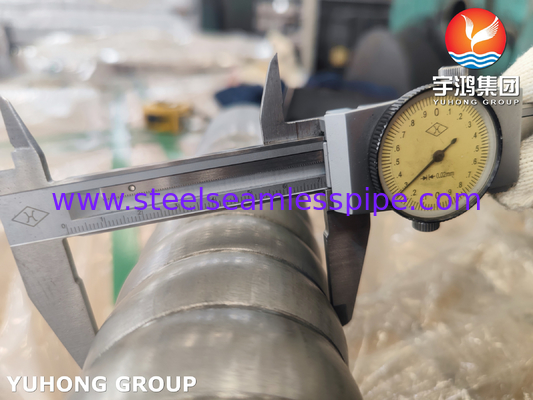

TP304 TP304L TP316 TP316L Stainless Steel Corrugated Fin Tubes For Preheating Devices
Bellows have a rich track record of delivery in boiler flue pipes, preheaters for waste disposal facilities, heat transfer pipes for preheaters to prevent white smoke, and many other applications.
The shape of the inner surface of the bellows protrudes to create turbulence in the gas flowing through the pipe. This doubles the heat transfer efficiency of the inner pipe. The equipment can be more compact than equipment with the same function but using plain steel pipes with a circular cross-section (smooth pipes), helping to reduce material costs, transport costs and equipment space.
In waste disposal facilities, crude oil boilers and coal boilers, combustible gases mixed with hydrogen chloride and sulphur trioxide in the form of hydrochloric and sulphuric acids can corrode the flue tubes and cause serious problems. Considering the corrosive dew point of hydrochloric and sulphuric acid, stainless steel tubes can't help. Our bellows made of special steel can meet and counteract the corrosive dew point of hydrochloric and sulphuric acid.
Our Ability
| General Low Fin Tubes Production Capacity | Specifications of Low Fin Tubes('N' Fins) |
Finning Facility: 10 finning machines; Daily capacity up to 3000 meters; |
Tube OD: 12.7 mm~25.4mm Tube Length: 18 meters max. Fin Height: 1.2 mm ~2.77mm Fin Thickness: appr. 0.3mm Fin Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI |
Tube Materials
ASTM A213 / A213M :Seamless Ferritic & Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A312/ A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A269/ A269M :Seamless and Welded Austenitic Stainless Steel Tubing for General Service
Applications
Specifications
|
Plain tube (mm) |
Finned section dimensions (mm) |
Ratio |
De |
|||
|
D×t |
Tp |
dd |
dr |
di |
η |
mm |
|
19×2 |
0.8 |
18.8 |
17 |
134 |
2.8 |
17.9 |
|
19×2 |
1 |
18.8 |
16.8 |
13.4 |
2.5 |
17.8 |
|
19×2 |
1.25 |
18.8 |
16.6 |
13 |
2.2 |
17.8 |
|
19×2 |
1.5 |
18.8 |
16.6 |
13 |
2 |
17.7 |
|
19×2 |
2 |
18.8 |
16.4 |
13 |
1.7 |
17.5 |
|
25×2.5 |
0.8 |
24.8 |
23 |
18.8 |
2.8 |
23.9 |
|
25×2.5 |
1 |
24.8 |
22.6 |
18.8 |
2.75 |
23.7 |
|
25×2.5 |
1.25 |
24.8 |
22.3 |
18 |
2.5 |
23.6 |
|
25×2.5 |
1.5 |
24.8 |
22.3 |
18 |
2.2 |
23.5 |
|
25×2.5 |
2 |
24.8 |
22 |
18 |
1.8 |
23.4 |
|
25×2.5 |
2.5 |
24.8 |
22 |
18 |
1.6 |
23.3 |
|
D------Outside diameter of plain end section |
||||||
|
Please email us for more information. |
||||||
