Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Studded Fin Tube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Base Tube Grade: | SATM A106 Gr. A, Gr. B , Gr. C , 20#, P11, P22, P5, P9, P91 | Standard: | ASTM A213, ASTM A312, ASTM A335 , ASTM A790 , ASTM A106, ASME SA213, ASME SA312, ASME SA376, ASME SA790 , ASME SA106, ASME SA335 |
|---|---|---|---|
| Stud Material Grade: | 1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410 , SS304 , Carbon Steel , Alloy Steel | Stud Hight: | 1/2inch(12.7mm), 5/8inch（15.875mm）, 3/4inch (19.05mm), 7/8inch(22.23mm), 1inch (25.4mm),... |
| Stud Dia.: | 12.7mm, 15.88mm ,... | Fin Type: | Solid Fin , High Frequence Weldding , HFW, .. |
| High Light: | Steam Reforming Furnace Studded Fin Tube,Studded Fin Tube ASME SA335,SS 410 Studded Finned Tube |
||

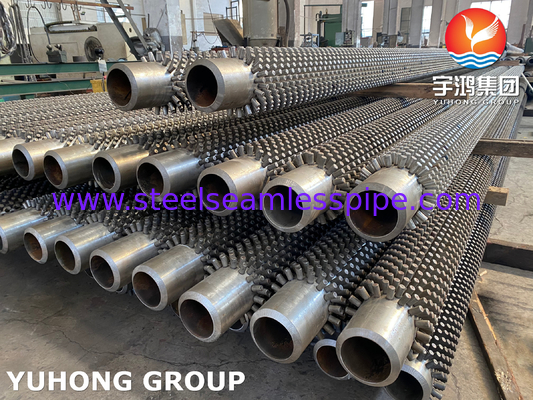

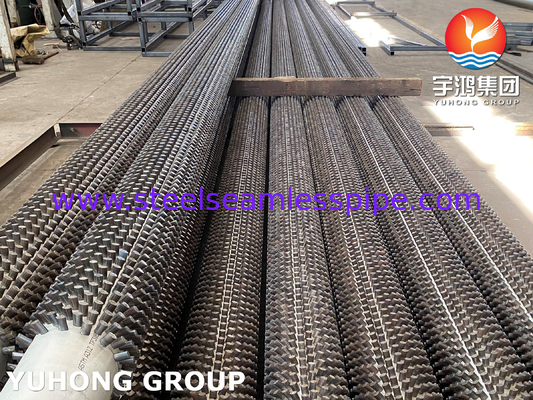

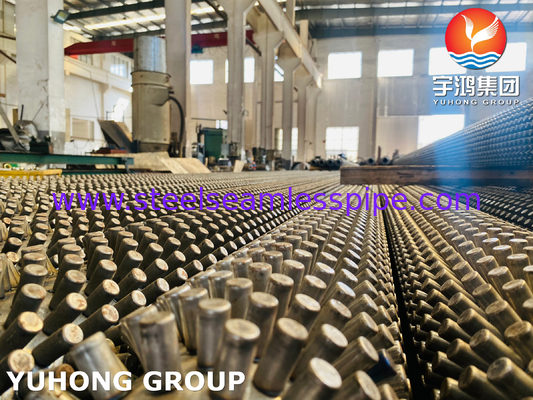

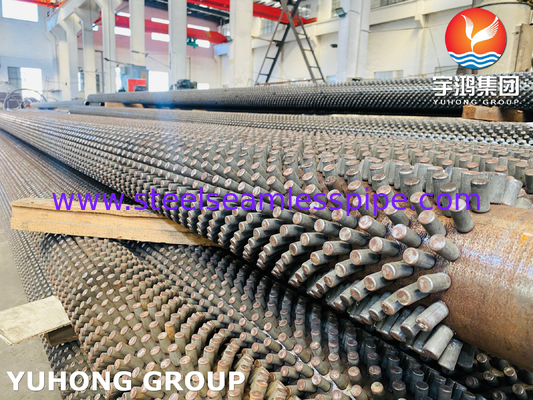

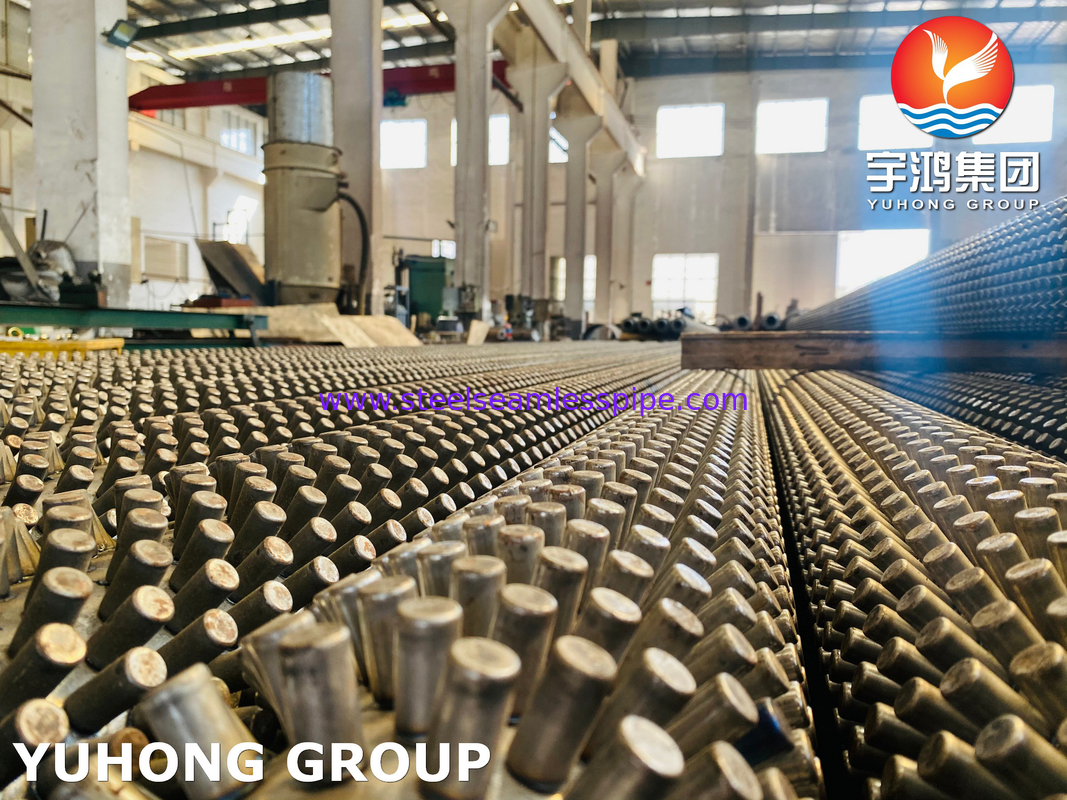

Studded Fin Tube ASME SA335 P5 13Cr (SS 410) Pin Tube for Steam Reforming Furnace
YUHONG GROUP's studded tube is mainly used in the petrochemical and coal chemical industry for tubular heating furnace, convection heat exchanger, air preheater, chemical equipment, heat exchange equipment. The studded tube is mainly used in the petrochemical and coal chemical industry for tube heating furnaces, convection heat exchangers, air preheaters, chemical equipment and heat exchange equipment. To expand the heat transfer area of the light tube by 2 to 3 times, it can improve the heat transfer coefficient on the flue gas side, improve the comprehensive thermal efficiency of the equipment and is an energy-saving heat transfer element. Its main function is to expand the heat transfer area of the tube and improve the thermal efficiency of the heating furnace.
| Fin Tube | |||||||||
| Base Tube Part | Fin Part | ||||||||
| Specification | Material Grade | Major Sizes | Material Grade | Fin Type | Fin Hight | Fin Thickness | Fin Qty | Fin Dia. | Bare Length |
| ASTM A213 ; ASME SA213; ASTM A249; ASME SA249; ASTM A269; ASME SA269; ASTM A312; ASME SA312; ASTM A376; ASME SA376; ASTM A789; ASME SA789; ASTM A790; ASME SA790 | TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP317L, TP321, TP321H, TP347, TP347H , S31803, S32205, S32750, S32760 | Tube Size: 15.875 X 1.65; 15.875 X 2.11; 15.875 X 2.77; 19.05 X 1.65; 19.05 X 2.11; 19.05 X 2.77; 25.4 X 2.11; 25.4 X 2.77; 25.4 X 3.05; 25.4 X 3.4; 31.75 X 2.11; 31.75 X 2.77; 31.75 X 3.05; 31.75 X 3.4; 38.1 X 2.11; 38.1 X 2.77; 38.1 X 3.05; 38.1 X 3.4; 44.45 X 2.11; 44.45 X 2.77; 44.45 X 3.05; 44.45 X 3.4; 44.45 X 3.81; 44.45 X 4.57; 50.8 X 2.11; 50.8 X 2.77; 50.8 X 3.05; 50.8 X 3.4; 50.8 X 3.81; 50.8 X 4.57; 57.15 X 2.11; 57.15 X 2.77; 57.15 X 3.05; 57.15 X 3.4; 57.15 X 3.81; 57.15 X 4.57; 63.5 X 2.11; 63.5 X 2.77; 63.5 X 3.05; 63.5 X 3.4; 63.5 X 3.81; 63.5 X 4.57; Pipe Size: 2 1/2" SCH40 (73.03 X 5.16); 2 1/2" SCH80 (73.03 X 7.01); 3" SCH40 (88.9 X 5.49); 3" SCH40 (88.9 X 7.62); 3 1/2" SCH40 (101.6 X 5.74); 3 1/2" SCH80 (101.6 X 8.18); 4" SCH40 (114.3 X 6.02); 4" SCH80 (114.3 X 8.56); 5" SCH40 (141.3 X 6.55); 5" SCH80 (141.3 X 9.27); 6" SCH40 (168.3 X 7.11); 6" SCH80 (168.3 X 10.97); 8" SCH40 (219.1 X 8.18); 8" SCH80 (219.1 X 12.7); Length Max.: 25M/PC; other sizes depend on customer requst | Stainless Steel: SS304, SS304L, SS316L, SS317L, SS347, SS310; SS409 (1CR12), SS410(1Cr13); Carbon Steel(CS) , Alloy Steel: ASTM A387 Gr.A, Gr.B, Gr.C; Aluminum ASTM A209 / ASME SA209 AL1060, Gr.6061; ASME SA210/ ASTM A210 AL1060 , AL1100, Gr.6061, Gr.6063, ASTM A221/ ASME SA221 AL 1060 , Gr.6061, Gr.6063 Alloy Steel: P11, P22, P5, P9 | Solid Fin : High Frequency Weldding(HFW), Serrated Fin Tube, Studded Tube /Pin Tube, Square Fin Tube, H Type Fin tube, HH type Fin tube; Embedded : G Type Fin Tube; Wound: L, LL, KL ; Extruded; Thread Fin tube ; Low Fin tube; Corrguated Fin Tube; Bamboo Tube; U bend Fin tube | 1.6mm ~60mm | 0.2mm~3.0mm | Depend on client request | 12.7mm~25.4mm | 40mm~client request |
| EN10216-5; EN10217-7; DIN 17456; DIN17457; DIN17458 | 1.4301,1.4305, 1.4306, 1.4307, 1.4571,1.4401, 1.4404, 1.4541, 1.4948, 1.4550, 1.4912, 1.4845, 1.4462, 1.4539, 1.4438, 1.4501 | ||||||||
| ASTM A335; ASME SA335; ASTM A213; ASME SA213 | T1, T11, T12, T22, T23, T5, T9, T91, T92, P1, P11, P12, P22, P23, P5, P9, P91, P92 | ||||||||
| ASTM A53; ASTM A106, ASME SA106 | GR.A, GR.B, GR.C | ||||||||
| ASTM A178; ASME SA178; ASTM A179, ASME SA179; ASTM A192; ASME SA192; ASTM A209; ASME SA209; ASTM A210; ASME SA210; ASTM A 214; ASME SA214; ASTM A333; ASME SA333 | Gr.A, Gr.B, Gr.C, A179, A192, T1a, T1b Gr.A1, Gr.1, Gr.3, Gr.6 | ||||||||
| ASTM B161; ASME SB161; ASTM B163; ASME SB163; ASTM B164; ASME SB164; ASTM B165; ASME SB165; ASTM B167; ASME SB167; ASTM B407; ASME SB407; ASTM B444; ASME SB444; ASTM B622; ASME SB622; ASTM B388; ASME SB388 | Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500. Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840. Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Titanium : Gr.2 , Gr.5, Gr.7, Gr.9 ; | ||||||||
Competitive Advantage
We have a workshop of over 10,000 square metres, including 6 TYPE H-FIN fin machines, with a daily extrusion capacity of up to 20 tonnes.
Studded pipe size and material
| Tube O.D.: | 25~355.6 (mm) | 1”~14”(NPS) |
| Tube Wall Thk.: | 3.5~28.6 (mm) | 0.14”~1.1” |
| Tube Length: | ≤25,000 (mm) | ≤82 ft |
| Stud Dia.: | 6~25.4 (mm) | 0.23”~1” |
| Stud Height: | 10~50.8 (mm) | 0.4”~2” |
| Stud Pitch: | 8~30 (mm) | 0.3”~1.2” |
| Stud Shape: | Cylindrical, Elliptical, Round, Lens type | |
| Stud to tube surface angle: | Vertical, angular, staggered rows | |
| Stud Material: |
C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S. |
|
| Tube Material: |
C.S. (most common grade is A106 Gr.B) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 ) |
|
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
