Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ASME, PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST, ISO |
| Model Number: | ASME SA105, ASME SA182, ASME SA965, ASME SA516, ASME SA266 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD, CNY , EURO |
| Packaging Details: | Ply wooden case / Pallet |
| Delivery Time: | 3--5 weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 tons / month |
| Product: | Tube Sheet | Standard: | ASME SA105, ASME SA182, ASME SA965, ASME SA516, ASME SA266 |
|---|---|---|---|
| Material Grade: | SA105, SA105N, ASME SA182 F304, ASME SA266 GR.2, ASME SA283 GR.C , ASME SA516, GR.70N | Material: | Carbon Steel, Stainless Steel, Copper Alloy, Etc |
| NDT: | UT, PT | Size: | Depend On Client Request |
| Use: | Heat Exchanger, Boiler, Pressure Vessel, Chemical Reactor, Power Plant, Energy , Petrochemical | Packing: | Ply Wooden Case / Pallet |
| High Light: | Floating Tubesheet,100% UT Tubesheet,100% PT Tubesheet |
||

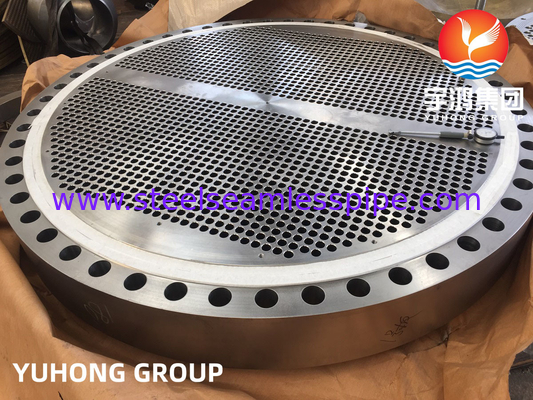

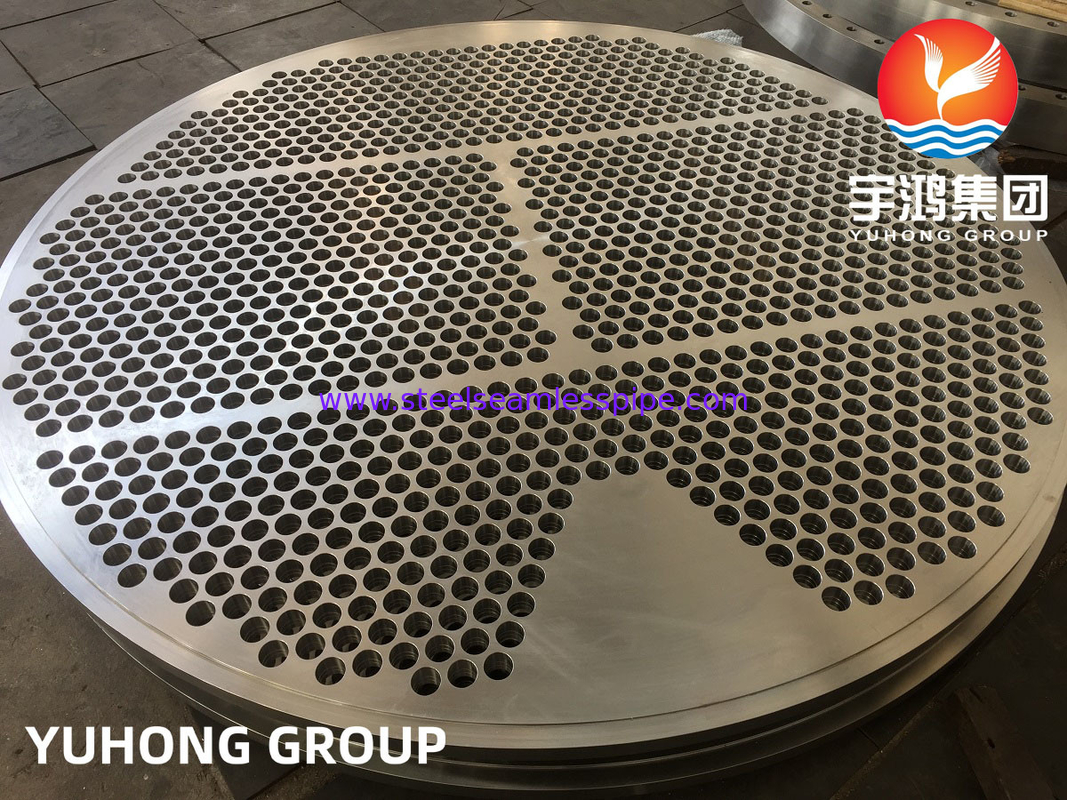

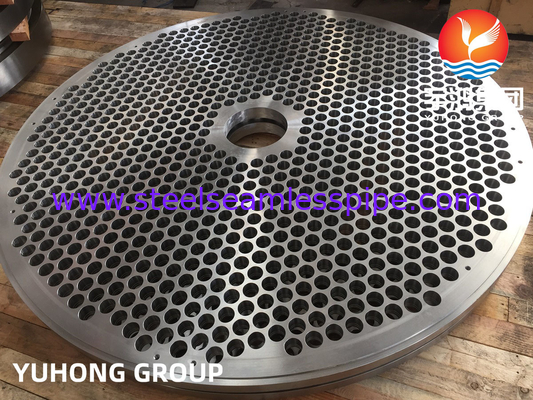

Tubesheet for Heat Exchanger Floating and Stationary 100% UT, 100% PT
Tube sheet is a plate that is used to support and hold the tubes in various heat exchangers, boilers, and other types of equipment where tubes are used. It is an important component in heat exchangers and boilers.
We are known that tube sheet is typically made of a metal and has holes or openings drilled into it to allow the tubes to pass through. The tubes are then secured to the tube sheet by various methods such as welding, rolling, or expansion.
Standard / Material Grade
| Carbon & Low Temperature | Chromiun | Stainless & Duplex | Copper& Bronze | Titanium | Ni-Alloy | |
| A105 /A105N | A182-F1 | A182-F304 | A182-F347H | SB151-C70600 | SB381-GR.1 | B564-NO2200 |
| A516-GR.70 | A182-F11 | A182-F304L | A182-F904L | SB151-C71500 | SB381-GR.3 | B564-NO6022 |
| A350-LF2 | A182-F12 | A182-F304H | A182-F44 | SB151-C71520 | SB381-GR.5 | B564-N10276 |
| A182-F22 | A182-F304N | A182-F51 | C44300 | SB381-GR.7 | B564-NO4400 | |
| A182-F5 | A182-F309S | A182-F53 | C68700 | SB381-GR.12 | B564-NO6600 | |
| A182-F9 | A182-F310S | A182-F55 | C71640 | B564-NO6601 | ||
| A182-F91 | A182-F310H | A182-F60 | B564-NO6625 | |||
| A182-F316 | B564-NO8800 | |||||
| A182-F316L | B564-NO8810 | |||||
| A182-F316Ti | B564-NO8811 | |||||
| A182-F316H | B564-NO8825 | |||||
| A182-F317L | B564-N10665 | |||||
| A182-F321 | B564-N10675 | |||||
| A182-F321H | B160-NO2201 | |||||
| A182-F347 | B462-NO8020 |
Heat Exchanger Types
U-Tube :only one tubesheet. The tubes are bent in the form of a "U."
Stationary: two tubesheets that are fixed at each end of the exchanger and are connected to each other by straight tubes.
Floating:one tubesheet that is fixed (stationary) and one that is free to move. This category of exchangers is the most versatile and also the costliest.
Welcom your inquiry of Tubesheet to Yuhong Group!
Contact Person: Isabel Yao
Tel: +8618268758675
Fax: 0086-574-88017980
